untion: Momentary action
Contact Arrangement: SPST
Termination:THD version
ELECTRICAL RATING: 50mA , DC12V
CONTACT RESISTANCE: ≤100mΩ
INSULATION RESISTANCE: ≥100MΩ
DIELECTRIC STRENGTH: AC250V 50Hz / 1 Minute
LIFE EXPECTANCY: 30,000 cycles
※ TSE36331
| Funtion: | Momentary action |
| Contact Arrangement: | SPST, Normally Open |
| Termination: | SMD version |
※ SPECIFICATION
| ELECTRICAL RATING | 50mA , DC12V | |
| CONTACT RESISTANCE | ≤100mΩ | |
| INSULATION RESISTANCE | ≥100MΩ | |
| DIELECTRIC STRENGTH | AC250V for 1 Minute | |
| LIFE EXPECTANCY | 30,000 cycles | |
| TRAVEL | 0.25mm±0.1mm | |
| IP GRADE | IP66 | |

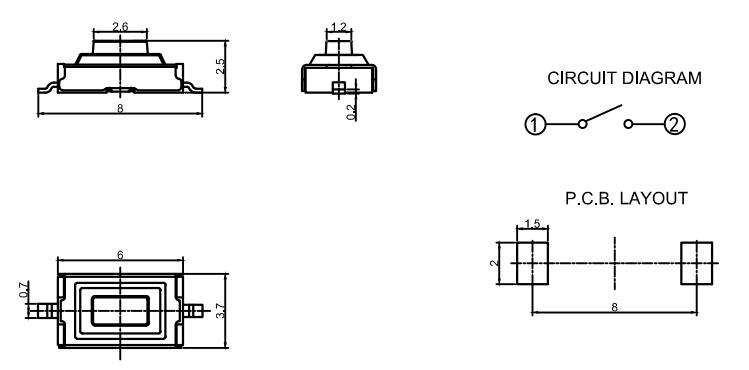

※ DIAGRAM
