Funtion: ON-OFF
Contact Arrangement: DPDT
Termination: SMT version
ELECTRICAL RATING: 50mA , DC12V
CONTACT RESISTANCE: ≤100mΩ
INSULATION RESISTANCE: ≥100MΩ
DIELECTRIC STRENGTH: AC500V 50Hz / 1 Minute
LIFE EXPECTANCY: 100,000 cycles

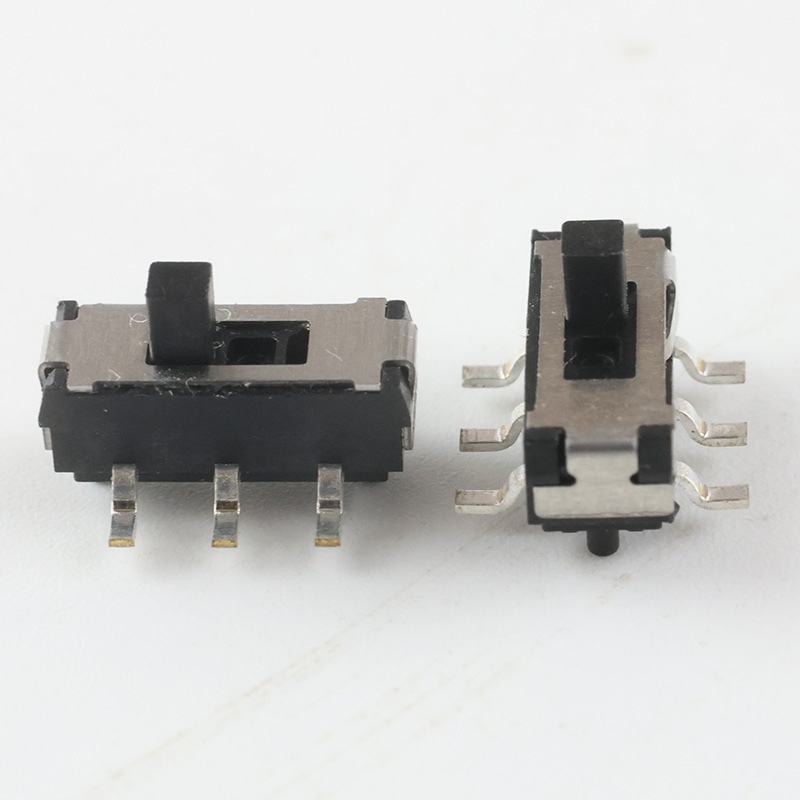

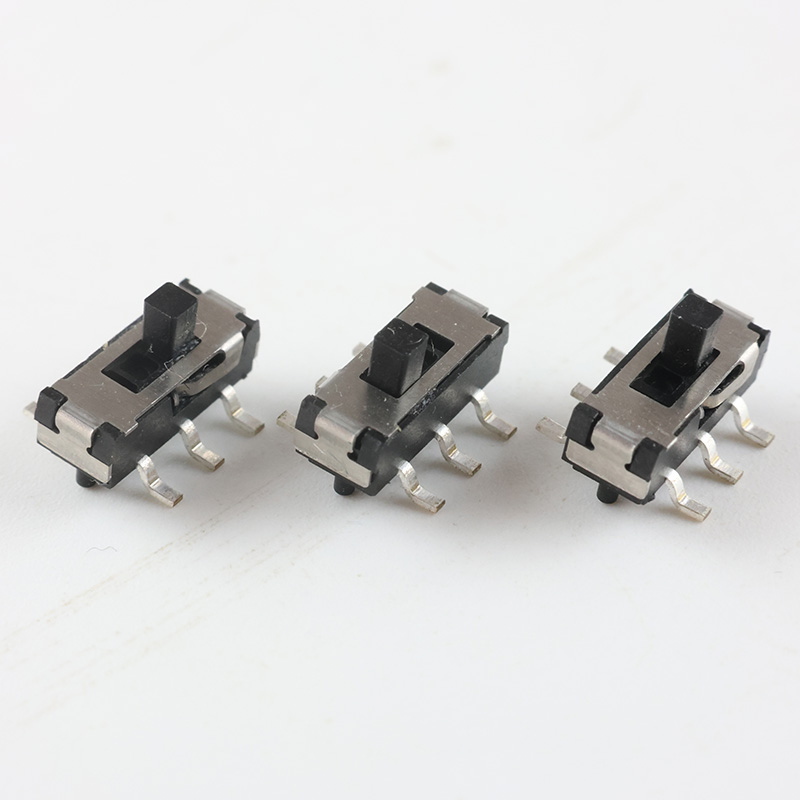

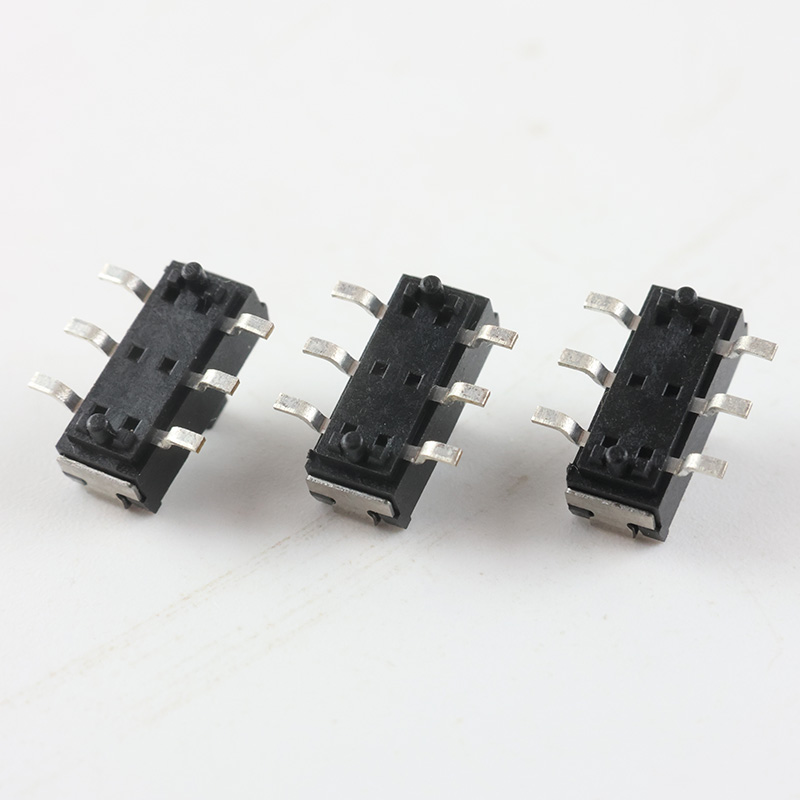

※ SS04
| Funtion: | ON-OFF |
| Contact Arrangement: | DPDT |
| Termination: | SMT version |
※ SPECIFICATION
| ELECTRICAL RATING | 50mA , DC12V | |
| CONTACT RESISTANCE | ≤100mΩ | |
| INSULATION RESISTANCE | ≥100MΩ | |
| DIELECTRIC STRENGTH | AC500V 50Hz / 1 Minute | |
| LIFE EXPECTANCY | 10,0000 cycles | |
| TRAVEL | 2mm±0.2mm | |
※ DIAGRAM
