Product Categories
Related products
KAN4 -21 Uni-directional Push-button Switch
KAN4 -21 Uni-directional Push-button Switch
SS04 Slide Switch
SS04 Slide Switch
Y01
FPD-0Y01 Solenoid Water Valve
A13
FPD-0A13 Solenoid Water Valve
SK01 Slide Switch
SK01 Slide Switch
SK01 Slide Switch
SK01 Slide Switch
SK01 Slide Switch

SK01 Slide Switch

Funtion: ON-OFF
Contact Arrangement: SPDT
Termination: SMT version
ELECTRICAL RATING: 50mA , DC12V
CONTACT RESISTANCE: ≤100mΩ
INSULATION RESISTANCE: ≥100MΩ
DIELECTRIC STRENGTH: AC500V 50Hz / 1 Minute
LIFE EXPECTANCY: 10,0000 cycles

Add to Cart Specifications
Product Details

※ SK01

Funtion: ON-OFF
Contact Arrangement: SPDT
Termination: SMT version



※ SPECIFICATION

ELECTRICAL RATING 50mA , DC12V
CONTACT RESISTANCE ≤100mΩ
INSULATION RESISTANCE ≥100MΩ
DIELECTRIC STRENGTH AC500V 50Hz / 1 Minute
LIFE EXPECTANCY 10,0000 cycles
TRAVEL 1.5mm±0.2mm

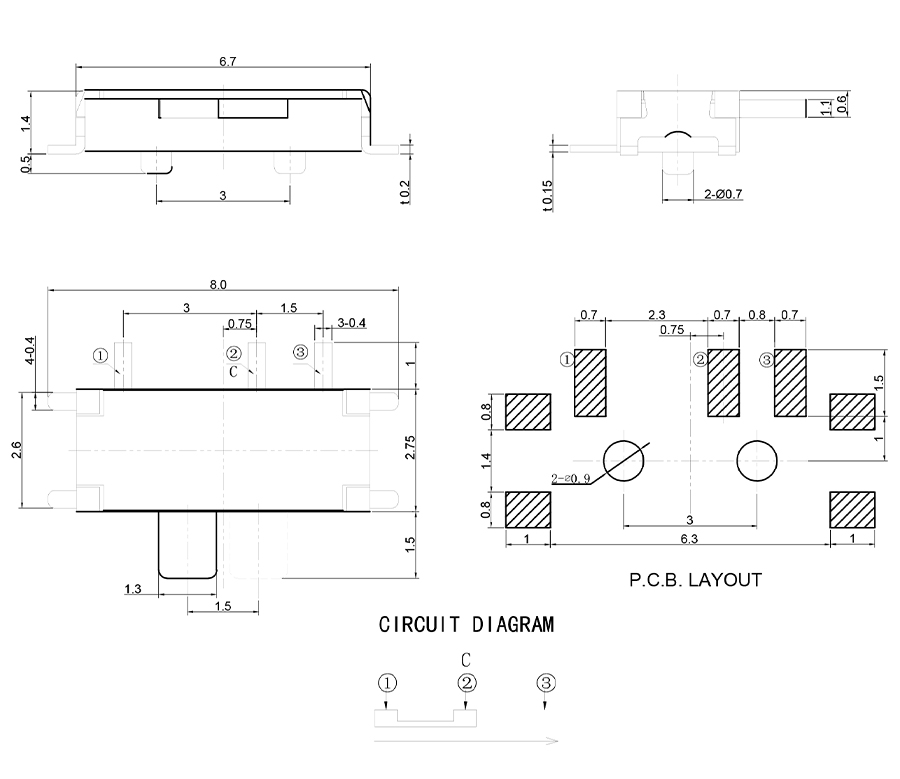

※ DIAGRAM

Product Application
Our products cover household appliances,3C intelligent industrial control, office equipment, medical equipment security equipment and other fields
