Funtion: Lock / Nonlock
Contact Arrangement: DPDT
Termination: THD version
ELECTRICAL RATING: 100mA, DC30V
CONTACT RESISTANCE: ≤100mΩ
INSULATION RESISTANCE: ≥100MΩ
DIELECTRIC STRENGTH: AC500V for 1 Minute
LIFE EXPECTANCY: 10,000 cycles

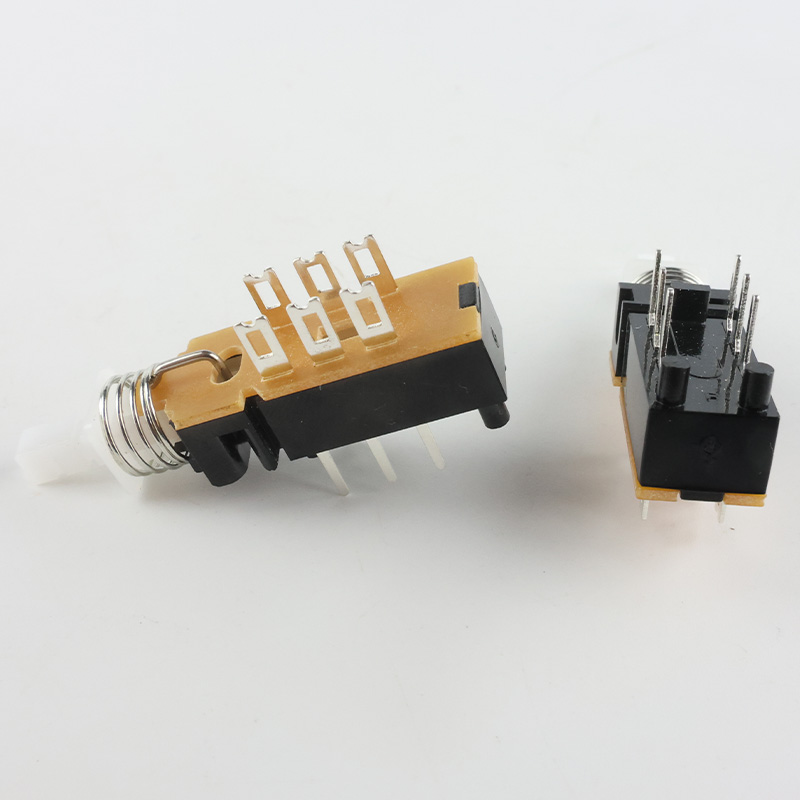

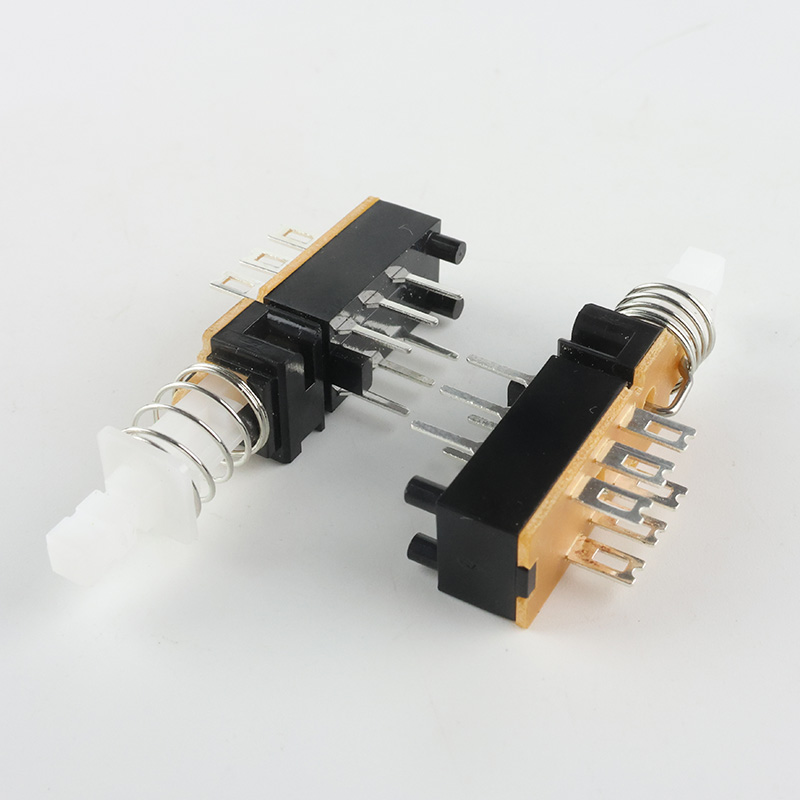

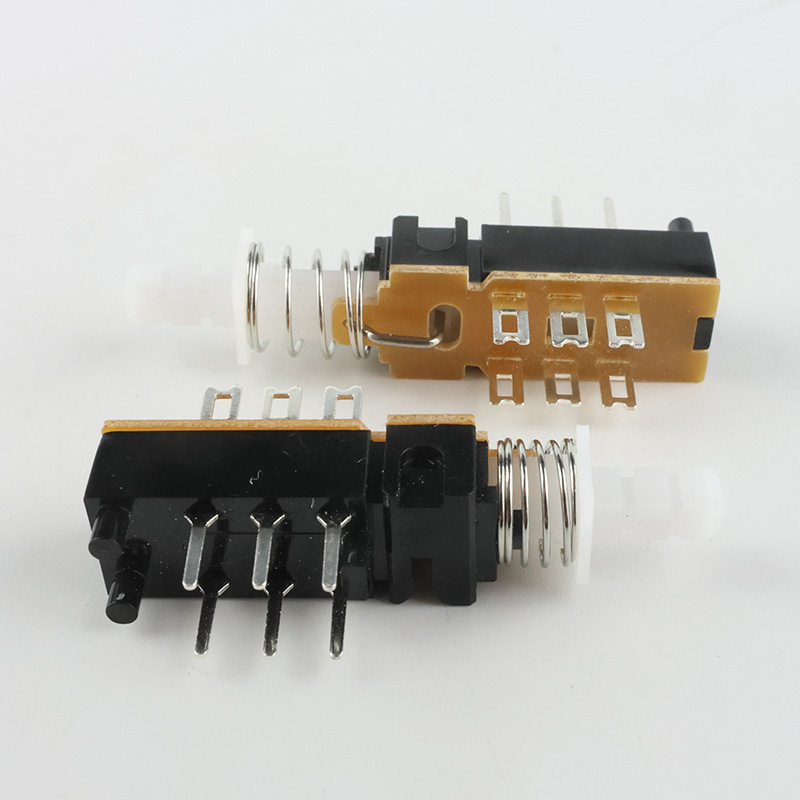

※ KAN1-21
| Funtion: | Lock / Nonlock |
| Contact Arrangement: | DPDT |
| Termination: | THD version |
※ SPECIFICATION
| ELECTRICAL RATING | 100mA , DC30V | |
| CONTACT RESISTANCE | ≤100mΩ | |
| INSULATION RESISTANCE | ≥100MΩ | |
| DIELECTRIC STRENGTH | AC500V for 1 Minute | |
| LIFE EXPECTANCY | 10,000 cycles | |

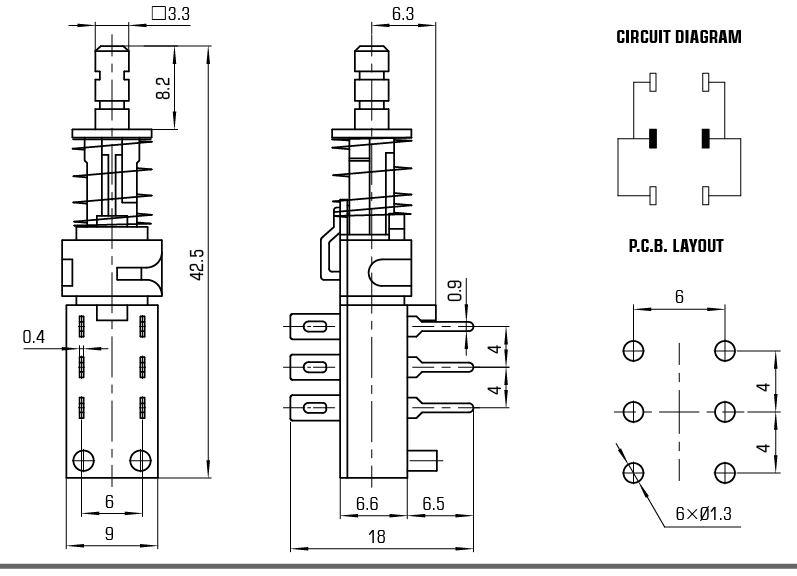

※ DIAGRAM
