What is Push Button Switch

What is push button switch?

A push button switch is a simple and widely used electronic component that allows users to control circuits with a manual press. These switches are essential in various applications, from household appliances to industrial machinery, providing a reliable and intuitive interface for activating and deactivating electrical systems. This article explores the definition, types, working principles, applications, and advantages of push button switches, aiming to provide a comprehensive understanding for clients considering these components for their products or projects.

Definition of a Push Button Switch

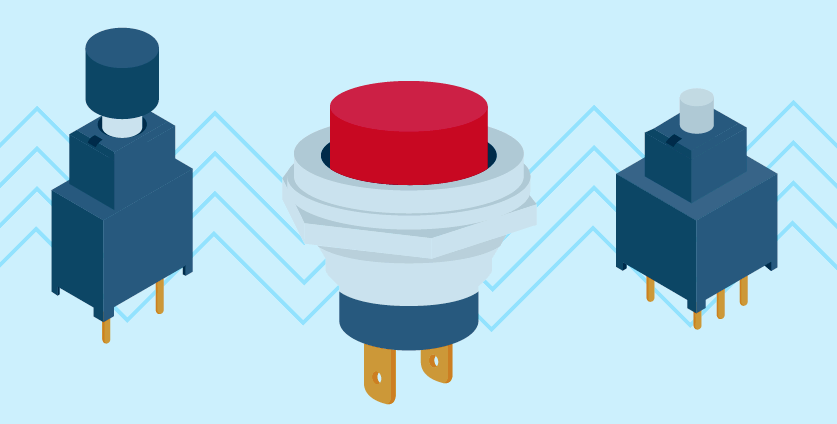

A push button switch is an electrical switch that is activated by pressing a button, which opens or closes a circuit. The button returns to its default position after being released, either through a spring mechanism or by relying on the material’s inherent properties. The primary function of a push button switch is to make or break an electrical connection, thus controlling the flow of electricity within a circuit.

Types of Push Button Switches

Push button switches come in various types, each designed for specific applications and requirements. The most common types include:

1. Momentary Push Button Switch: This switch only remains active as long as the button is pressed. It is commonly used in applications where temporary activation is needed, such as doorbells or keyboards.
2. Latching Push Button Switch: Unlike momentary switches, latching switches stay in their new state after being pressed. They require a second press to return to their original state. These are often used in power switches for devices.
3. Normally Open (NO) Push Button Switch: In this configuration, the circuit remains open (off) until the button is pressed, completing the circuit and allowing current to flow.
4. Normally Closed (NC) Push Button Switch: Here, the circuit is closed (on) by default and opens (turns off) when the button is pressed.
5. Illuminated Push Button Switch: These switches have built-in lights that indicate their status or location, providing visual feedback to the user. They are commonly found in consumer electronics and industrial control panels.
6. Emergency Stop (E-Stop) Push Button Switch: Designed for safety, these switches are large and prominently colored to allow for quick activation in emergencies, immediately cutting off power to machinery.

Working Principles of Push Button Switches

The working principle of a push button switch involves mechanical action to control electrical circuits. When the button is pressed, it moves internal contacts to either connect or disconnect the circuit. Here’s a simplified breakdown of the process:

1. Contact Mechanism: Inside the switch, conductive materials make contact to close the circuit when the button is pressed.
2. Return Mechanism: A spring or similar mechanism pushes the button back to its original position when released, reopening the circuit in momentary switches.
3. Actuation Force: The amount of pressure required to press the button, which varies depending on the switch design and application.
4. Electrical Ratings: Push button switches are rated for specific voltages and currents, determining their suitability for different applications.

Applications of Push Button Switches

Push button switches are versatile components found in numerous applications across various industries:

1. Consumer Electronics: Used in everyday devices like smartphones, remote controls, and kitchen appliances for power and function control.
2. Industrial Equipment: Critical for controlling machinery, initiating processes, and emergency shutdowns in manufacturing and processing plants.
3. Automotive Industry: Found in vehicle control systems for functions such as starting the engine, operating windows, and activating lights.
4. Medical Devices: Used in equipment like patient monitoring systems and diagnostic machines, where reliable operation is essential.
5. Home Automation: Integrated into smart home systems for controlling lights, security systems, and other connected devices.
6. Aerospace and Defense: Employed in control panels of aircraft and military equipment, where durability and reliability are crucial.

Advantages of Push Button Switches

Push button switches offer several advantages that make them a preferred choice in many applications:

1. Simplicity and Ease of Use: Their straightforward operation makes them easy to use, reducing the need for extensive training or instructions.
2. Reliability: High-quality push button switches are designed to provide consistent performance over many cycles, ensuring long-term reliability.
3. Compact Design: Their small size allows for integration into compact devices and control panels without compromising functionality.
4. Versatility: Available in various types and configurations, push button switches can be tailored to specific applications and requirements.
5. Durability: Industrial-grade push button switches are built to withstand harsh environments, including exposure to dust, moisture, and extreme temperatures.
6. Safety: Features like emergency stop switches enhance safety by allowing for immediate shutdown of equipment in hazardous situations.

Factors to Consider When Choosing a Push Button Switch

When selecting a push button switch for a particular application, several factors should be considered to ensure optimal performance and reliability:

1. Electrical Ratings: Ensure the switch can handle the voltage and current requirements of your application.
2. Environment: Consider the environmental conditions the switch will be exposed to, such as temperature, humidity, and potential exposure to chemicals or dust.
3. Actuation Force: Choose a switch with an appropriate actuation force for the intended use, balancing ease of use with the potential for accidental activation.
4. Mounting Style: Determine the most suitable mounting style (panel mount, PCB mount, etc.) for your application.
5. Size and Design: Ensure the switch fits within the available space and matches the aesthetic or ergonomic requirements of the device or control panel.
6. Durability and Lifespan: Consider the expected lifespan and durability of the switch, particularly for applications involving frequent use or harsh conditions.
7. Certification and Compliance: Verify that the switch meets relevant industry standards and certifications for safety and performance.

Conclusion
In conclusion, a push button switch is a fundamental component that plays a critical role in controlling electrical circuits across a wide range of applications. Its simplicity, reliability, and versatility make it an essential element in both consumer and industrial devices. By understanding the different types, working principles, applications, and factors to consider when choosing a push button switch, clients can make informed decisions that enhance the functionality and reliability of their products.

■
