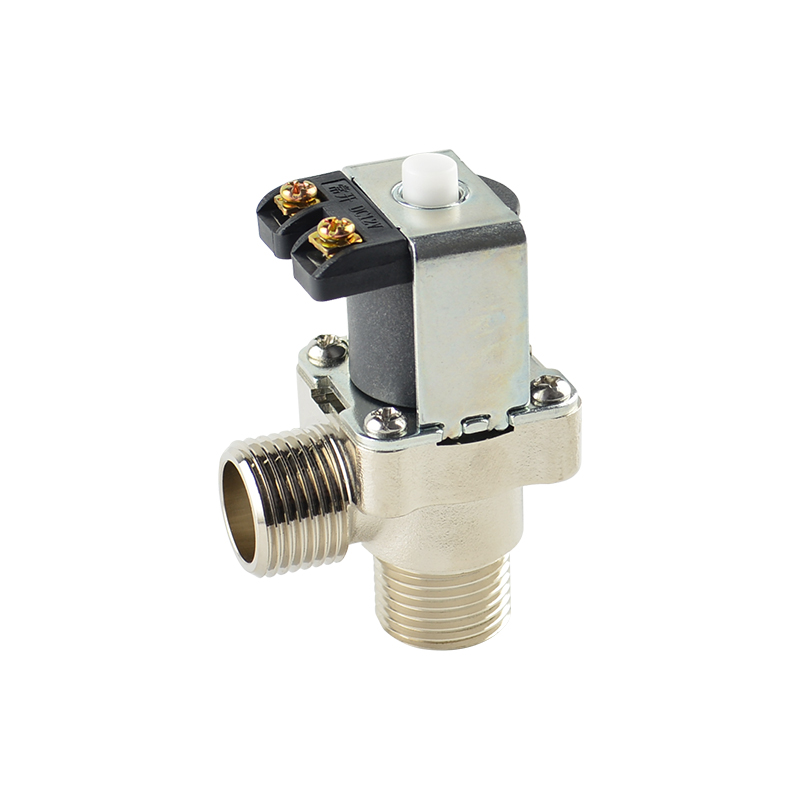

FPD-0A10 Solenoid Water Valve

Model

FPD-0A10

Action way

Pilot type

Type

NC type-Power on with water; NO type-Power on without water

Working pressure

With pressure: 0.02-0.8Mpa，without pressure (low pressure): 0.008-0.5Mpa，0 pressure（water drain valve）0-0.006Mpa

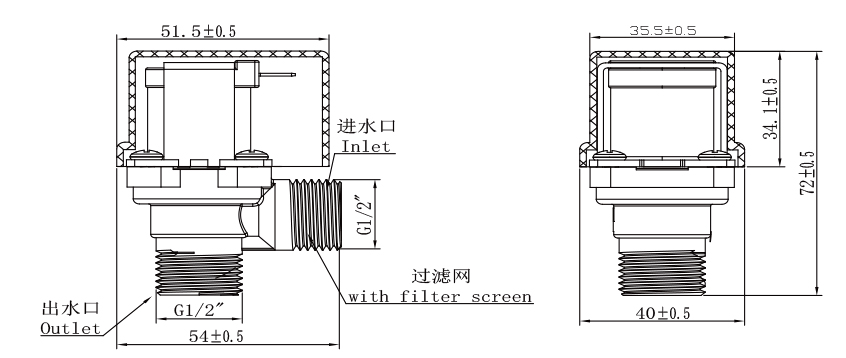

Input connection way

G1/2'' external threads

Output connection way

G1/2'' external threads or G1/4'' inner threads

Applicable medium

water

Valve body material

Copper valve body

Medium temperature

0-100℃

Environment temperature

0-50℃

Electrical rating

AC220V,0.02A,4.5W; AC110V,0.08A,4.5W; DC6V,0.6A,4W; DC9V,0.4A,4W; DC12V,0.3A,4W; DC24V,0.15A,4.5W;

Coil color

AC220V,Grey; AC110V,Yellow; DC6V,Blue; DC9V,Green; DC12V,Black; DC24V,White;

Variable voltage of supply voltage

-10%~+10%

Insulation resistance

Tested by DC500V megohmmete for 1 min, the insulation resistance should ≥100MΩ

Watertigh performance

Hydrostatic pressure 0.02Mpa, leakage ratio ＜0.1mL/min, Hydrostatic pressure 0.03-0.8Mpa, leakage ratio 0   mL/min

Hydraulic pressure withstand

withstand hydrostatic pressure of 1. 2 Mpa for   5min, no unbroken, deformation or outside leakage

Reliability

0.02-0.8Mpa, make and break for 10s   respectively, lasting 1hr, the check valve should be unblocked

Flow characteristic

Pressure 0.02Mpa, Flux 3L/min, Pressure 0.1Mpa, Flux 8L/min. Pressure   0.3pa, Flux 13L/min. Pressure 0.8Mpa, Flux 25L/min

Across layers insulation

 Withstand high ovltage pulse for 2s, it should   be normal

Continuously energized

Energize for 12hrs, but not connect through the   water, the valve should be no deformation, and the coil should not be burned

Withstand voltage

The acceptable high-voltage power between   electric conduction and outer without electrified metal withstand AC1500V   50HZ for 1min, no flashover or breakdown. withstand AC1800V, 50HZ for 1s, no flashover or breakdown

Non-return function

No

Filtering function

Yes

Angle between coil and valve body

0°

Power supply connection way

fixed with M3 screw / #6.3 bolt terminal

Life Expectancy

≥100K cycles

Guarantee Period

Under the normal use conditions, the quality   warranty period for our goods is 12 months
