Funtion: Lock / Non-Lock
Contact Arrangement: DPDT
Termination: THD version
ELECTRICAL RATING: 50mA , DC12V
CONTACT RESISTANCE: ≤100mΩ
INSULATION RESISTANCE: ≥100MΩ
DIELECTRIC STRENGTH: AC250V for 1 Minute
LIFE EXPECTANCY: 10,000 cycles
TRAVEL: 1.5mm±0.3mm

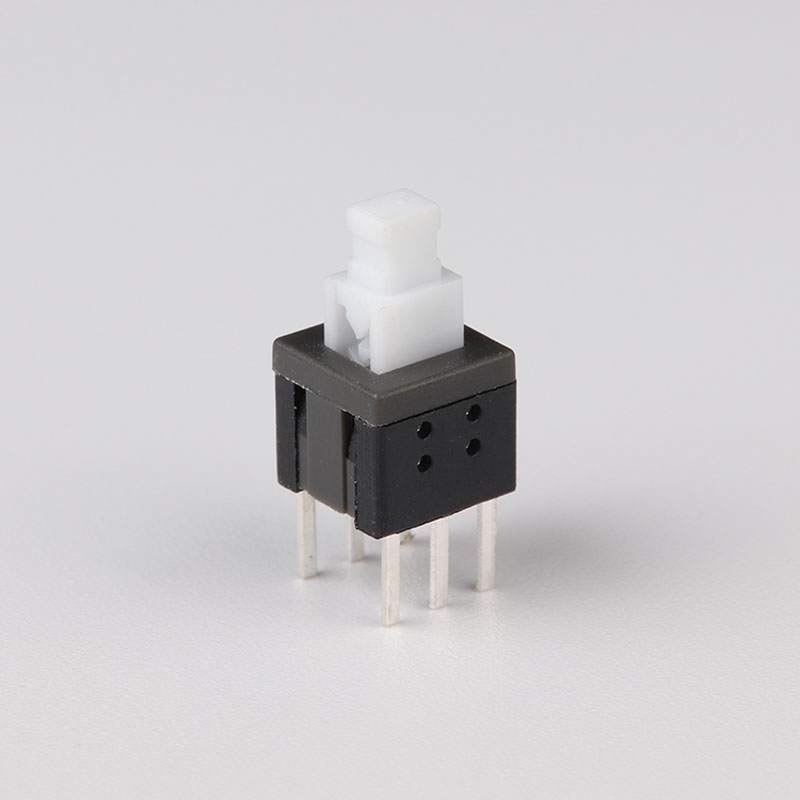

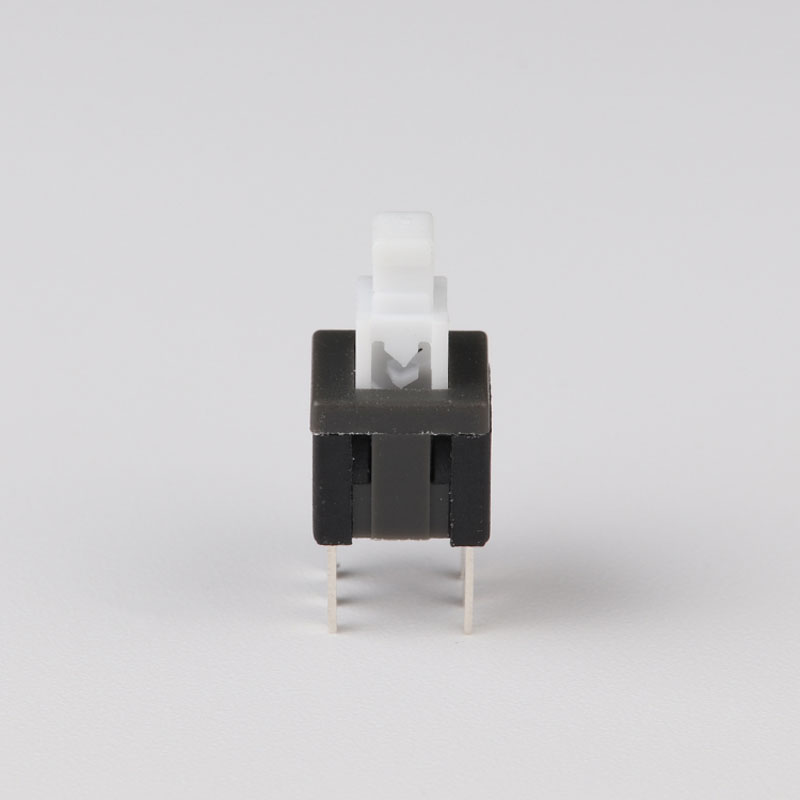

※ PS581-06
| Funtion: | Lock / Non-Lock |
| Contact Arrangement: | DPDT |
| Termination: | THD version |
※ SPECIFICATION
| ELECTRICAL RATING | 50mA , DC12V | |
| CONTACT RESISTANCE | ≤100mΩ | |
| INSULATION RESISTANCE | ≥100MΩ | |
| DIELECTRIC STRENGTH | AC250V for 1 Minute | |
| LIFE EXPECTANCY | 10,000 cycles | |
| TRAVEL | 1.5mm±0.3mm | |

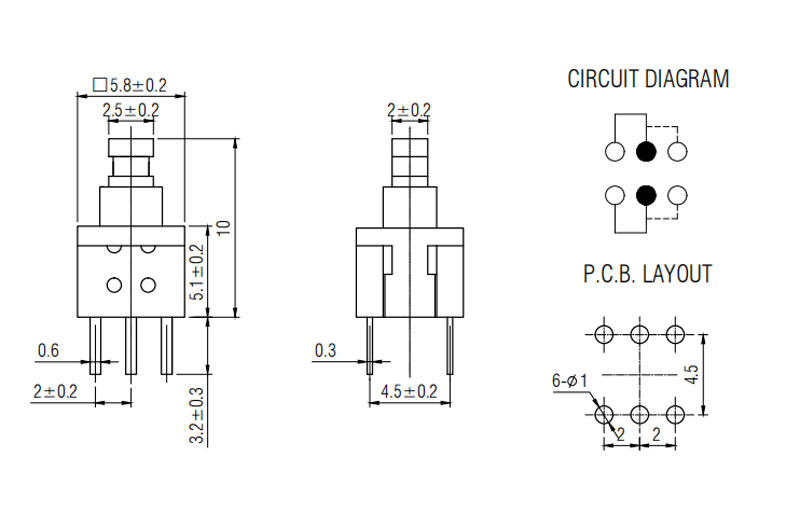

※ DIAGRAM
