PBS05-01 Press Switch
PBS05-01 Press Switch
PBS05-01 Press Switch
PBS05-01 Press Switch
PBS05-01 Press Switch

PBS05-01 Press Switch

Add to Cart Specifications
Product Details

※ PBS04-01

Funtion: Momentary action
Contact Arrangement: SPST ,  N.O. / N.C.
Termination: THD version



※ SPECIFICATION

ELECTRICAL RATING 300mA , AC125V
CONTACT RESISTANCE ≤100mΩ
INSULATION RESISTANCE ≥100MΩ
DIELECTRIC STRENGTH AC500V for 1 Minute
LIFE EXPECTANCY 10,000 cycles

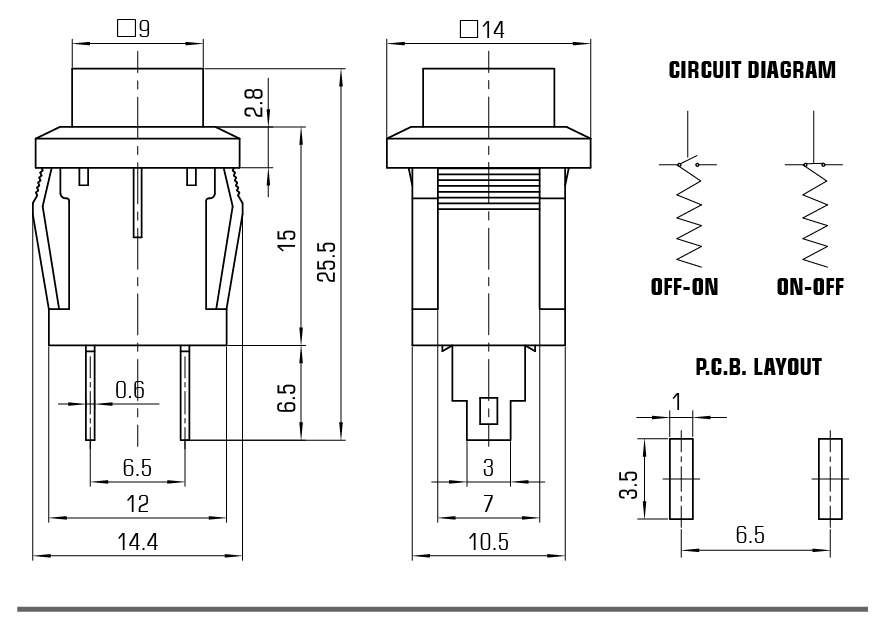

※ DIAGRAM

Product Application
Our products cover household appliances,3C intelligent industrial control, office equipment, medical equipment security equipment and other fields
