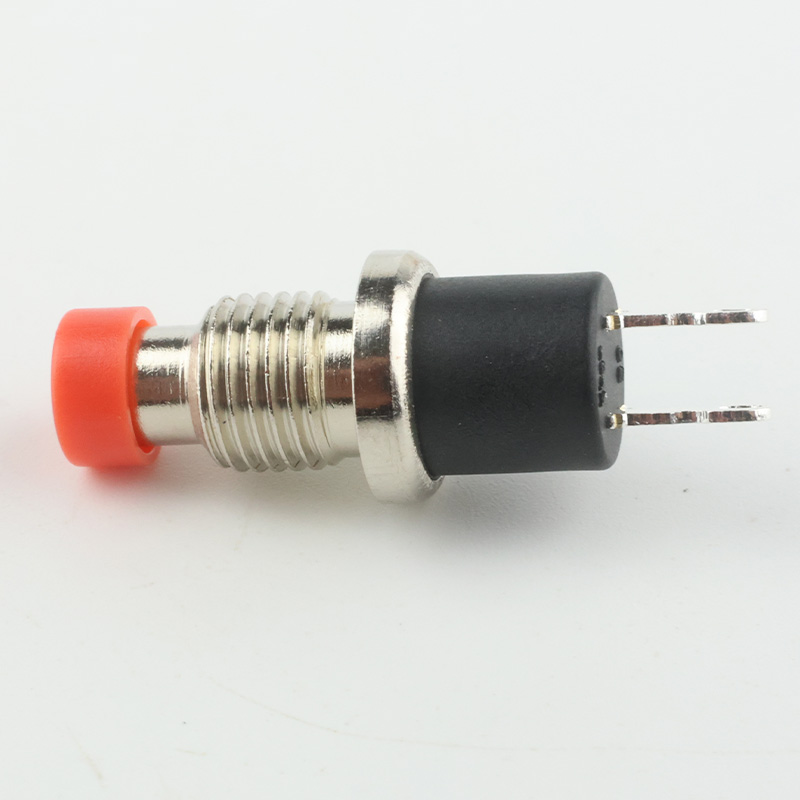

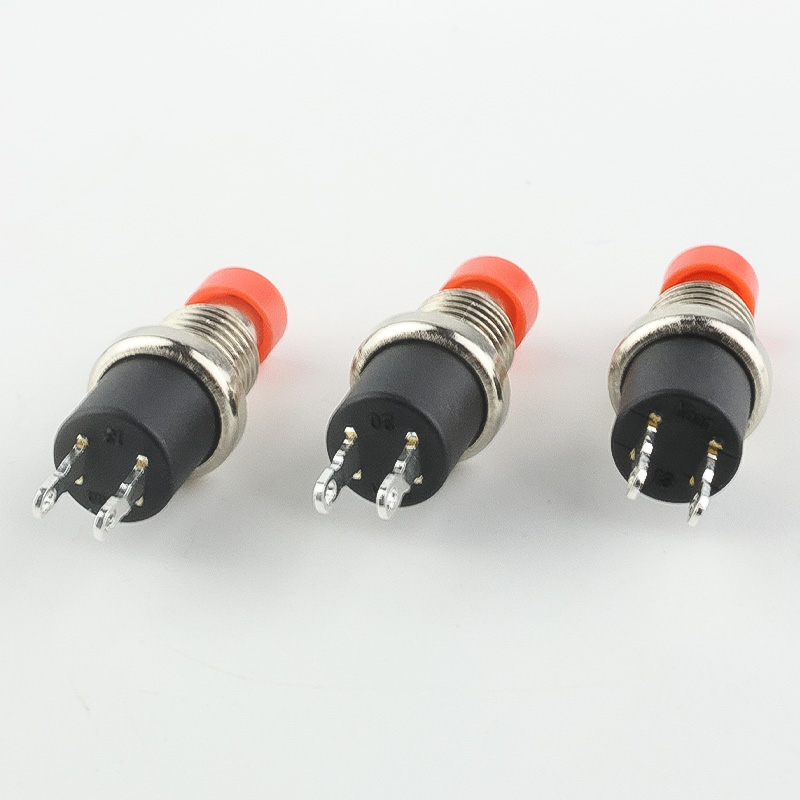

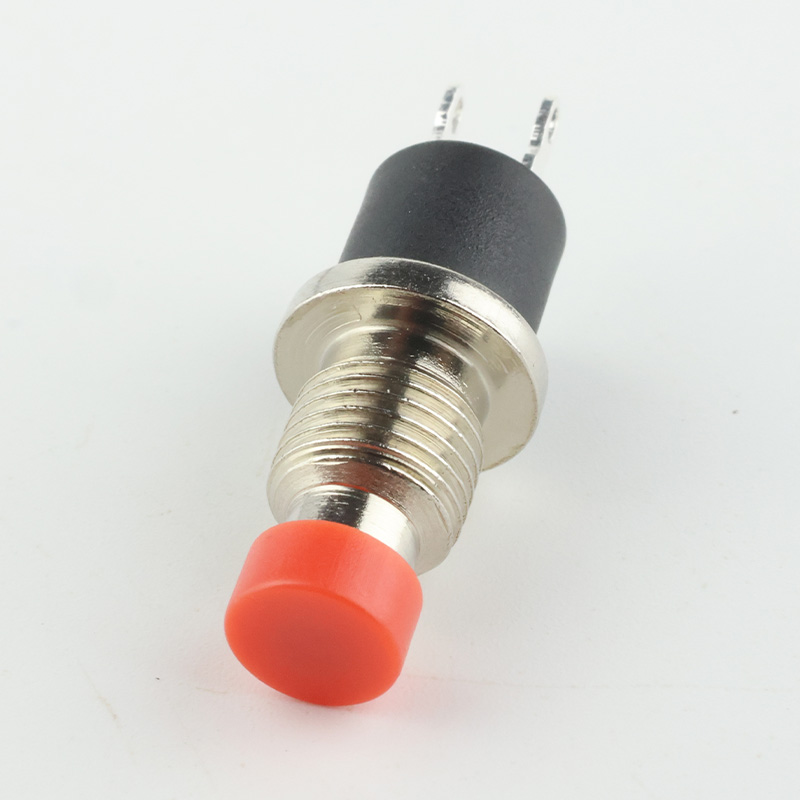

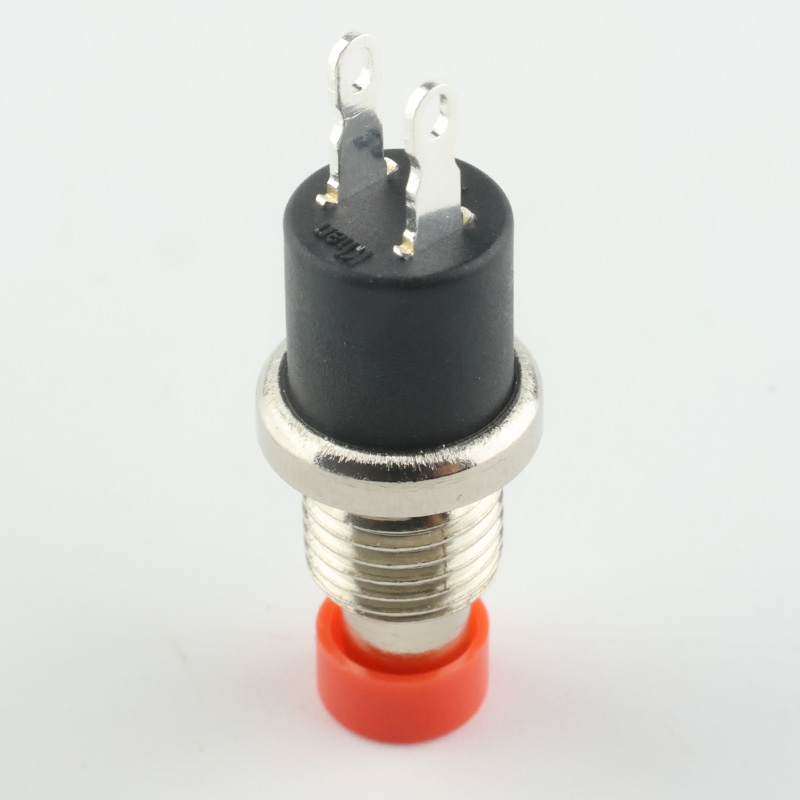

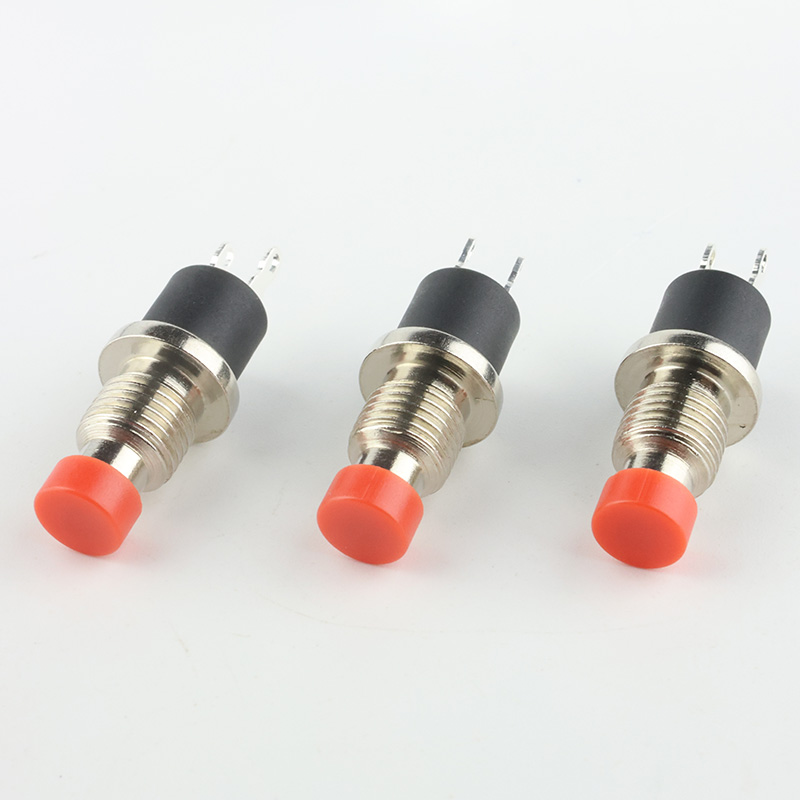

※ PBS04-01
| Funtion: | Momentary action |
| Contact Arrangement: | SPST , N.O. / N.C. |
| Termination: | THD version |
※ SPECIFICATION
| ELECTRICAL RATING | 300mA , AC125V | |
| CONTACT RESISTANCE | ≤100mΩ | |
| INSULATION RESISTANCE | ≥100MΩ | |
| DIELECTRIC STRENGTH | AC500V for 1 Minute | |
| LIFE EXPECTANCY | 10,000 cycles | |

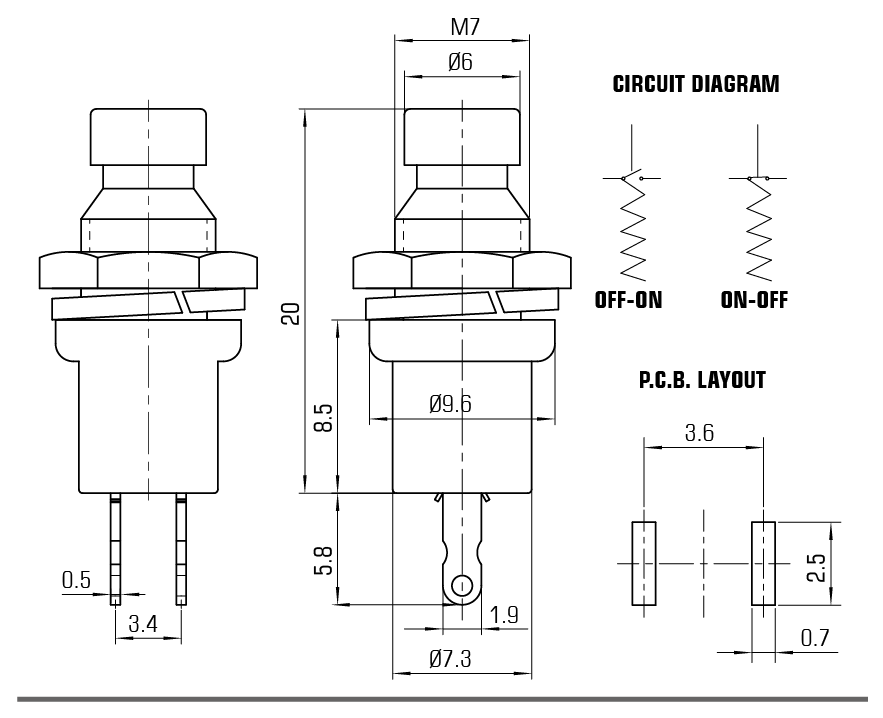

※ DIAGRAM
