DPDT Self-Locking Push Button Switch, 6 Pin Push Button Switches

Pushbutton Switch

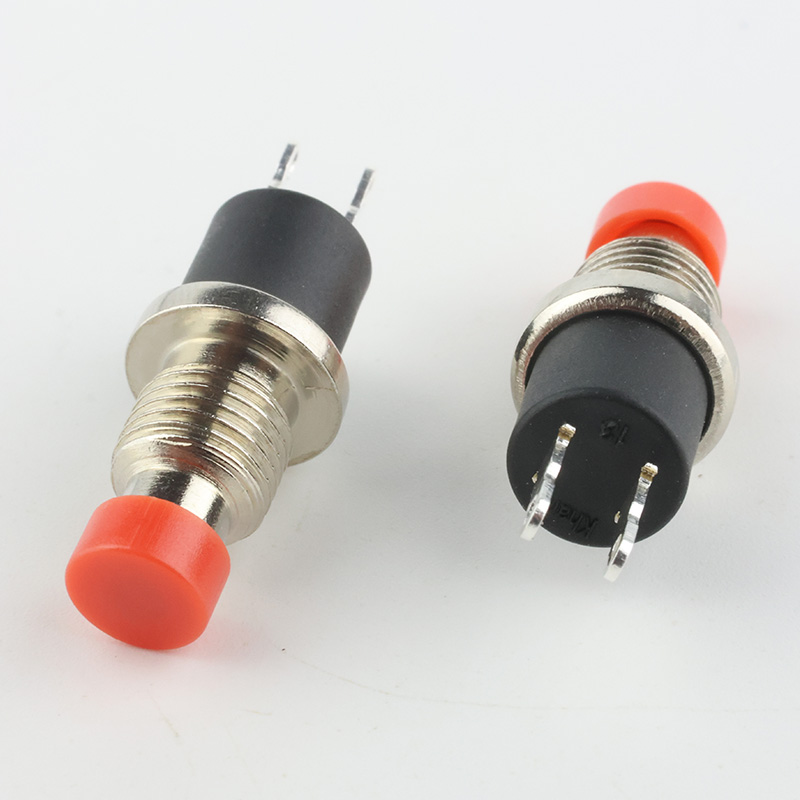

KHAN's button switches are divided into two types: round and rectangular. Round Pushbuttons use a mounting nut to secure them into place, while Rectangular Pushbuttons can be snapped into a panel by simply pushing it into the approp.

Our button switches are used for various applications from small to large devices, thus offering a wide range of sizes, specifications, and functional options. Button switches have a wide range of uses, usually adding lighting effects to the switches, and users will receive visual feedback when operating them.

PBS05-01 Press Switch

PBS04-01 Press Switch

PS851-06 Pushbutton Switch

Funtion: Lock / Non-Lock
Contact Arrangement: DPDT
Termination: THD version
ELECTRICAL RATING: 50mA , DC12V
CONTACT RESISTANCE: ≤100mΩ
INSULATION RESISTANCE: ≥100MΩ
DIELECTRIC STRENGTH: AC250V for 1 Minute
LIFE EXPECTANCY: 10,000 cycles
TRAVEL: 1.5mm±0.3mm

PS850-06 Pushbutton Switch

PS071-06 Pushbutton Switch

PS580-06 Pushbutton Switch

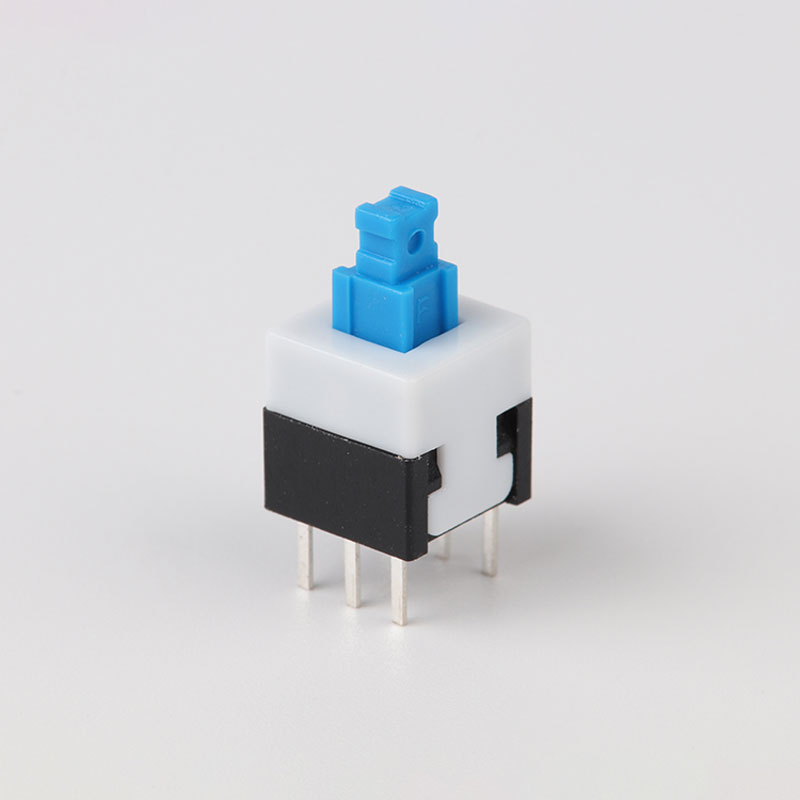

PS081-06 Momentary Push 6 Pin Switch 8x8mm Non Latching/Latching Push Button Switch

PS581-06 Momentary Push 6 Pin Switch 5.8x5.8mm Non Latching/Latching Push Button Switch
