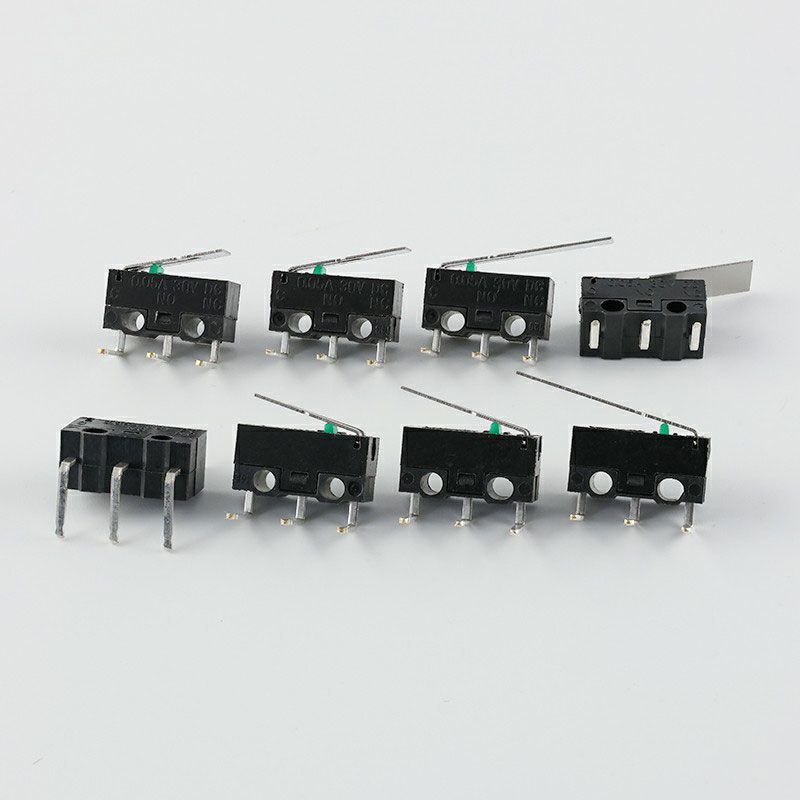

KW10-03 Left-angled/Right-angled Micro Switch
KW10-03 Left-angled/Right-angled Micro Switch
KW10-03 Left-angled/Right-angled Micro Switch

KW10-03 Left-angled/Right-angled Micro Switch

Funtion: Momentary action
Contact Arrangement: SPDT
Termination: THD version
ELECTRICAL RATING: 0.2A , DC30V; 1A , AC125V; 3A , 250V
CONTACT RESISTANCE: ≤30mΩ
INSULATION RESISTANCE: ≥100MΩ
DIELECTRIC STRENGTH: AC500V 50Hz / 1 Minute
LIFE EXPECTANCY: 10,000 cycles

Add to Cart Specifications
Product Details

※ KW10-03

Funtion: Momentary action
Contact Arrangement: SPDT
Termination: THD version



※ SPECIFICATION

ELECTRICAL RATING

0.2A , DC30V

1A , AC125V

3A , 250V

CONTACT RESISTANCE ≤30mΩ
INSULATION RESISTANCE ≥100MΩ
DIELECTRIC STRENGTH AC500V 50Hz / 1 Minute
LIFE EXPECTANCY 10,000 cycles



※ DIAGRAM

Product Application
Our products cover household appliances,3C intelligent industrial control, office equipment, medical equipment security equipment and other fields
