Funtion: Momentary action
Contact Arrangement: SPDT
Termination: THD version
ELECTRICAL RATING: 0.2A , DC30V; 1A , AC125V; 3A , 250V
CONTACT RESISTANCE: ≤30mΩ
INSULATION RESISTANCE: ≥100MΩ
DIELECTRIC STRENGTH: AC500V 50Hz / 1 Minute
LIFE EXPECTANCY: 10,000 cycles

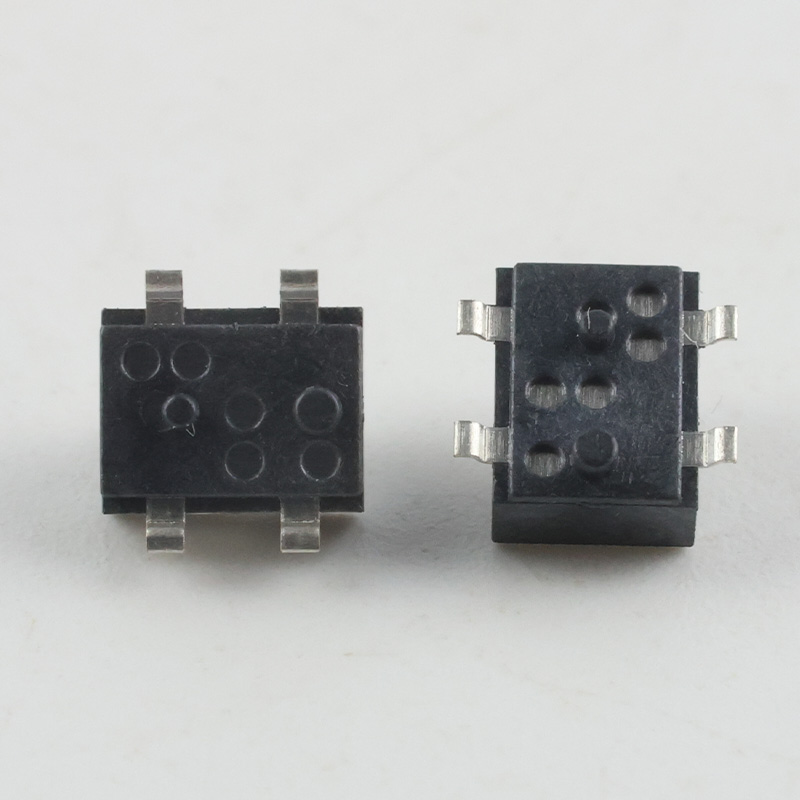

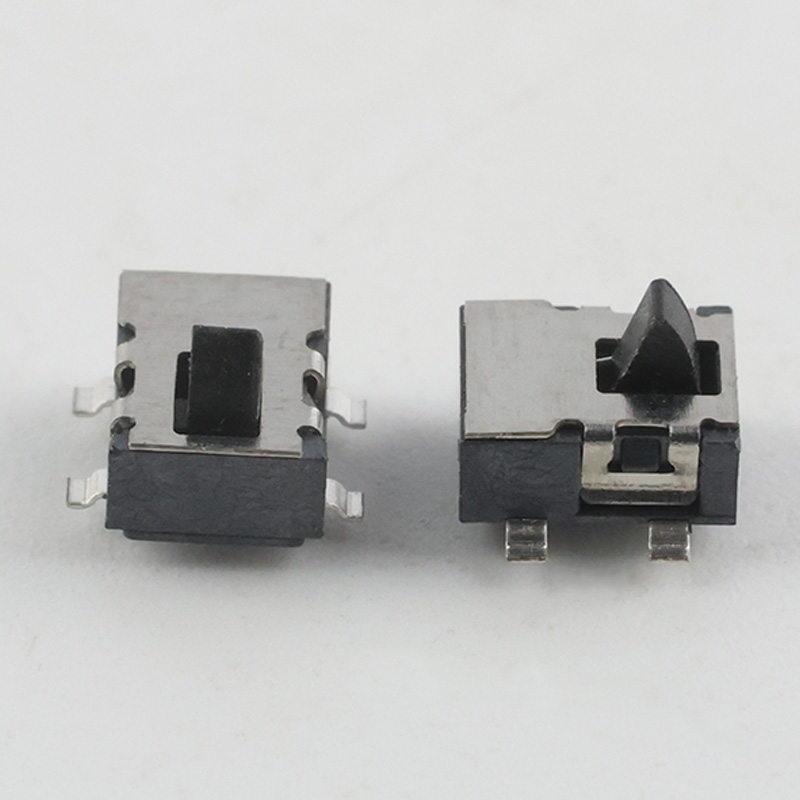

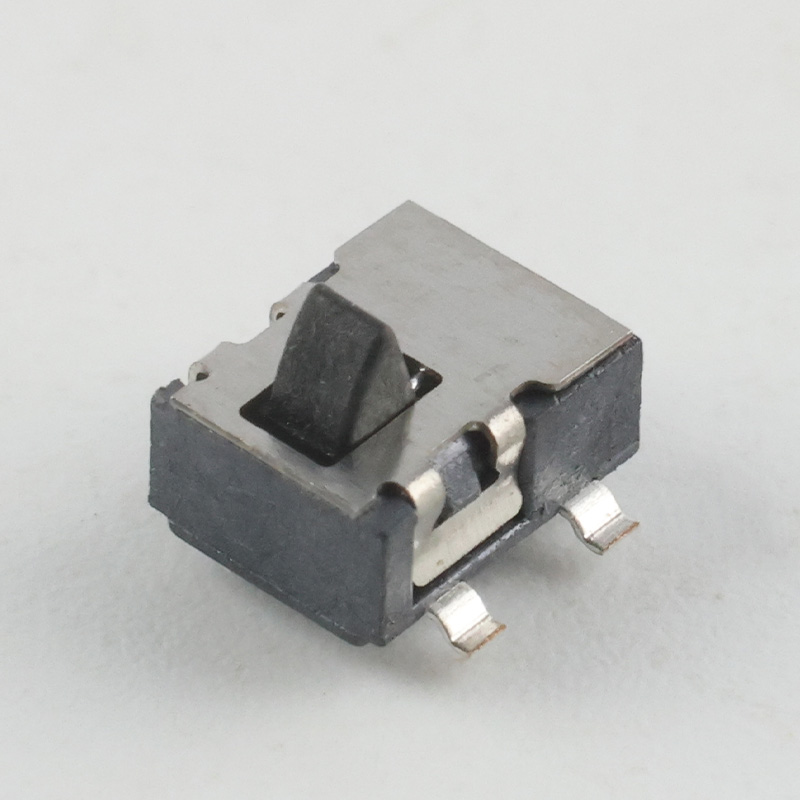

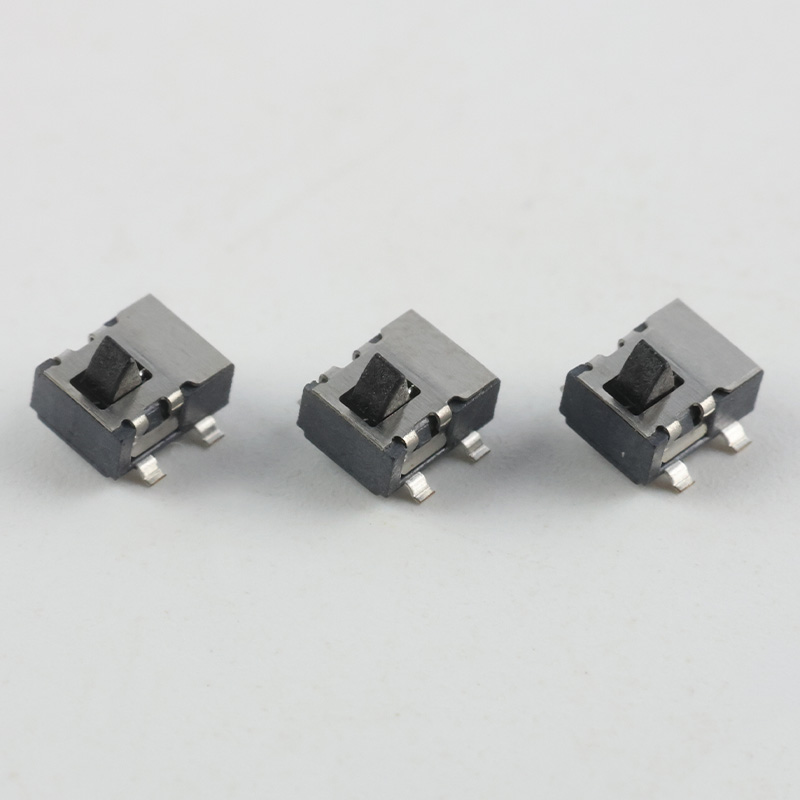

※ KW02-01
| Funtion: | Momentary action |
| Contact Arrangement: | SPDT |
| Termination: | THD version |
※ SPECIFICATION
| ELECTRICAL RATING |
0.2A , DC30V 1A , AC125V 3A , 250V |
|
| CONTACT RESISTANCE | ≤30mΩ | |
| INSULATION RESISTANCE | ≥100MΩ | |
| DIELECTRIC STRENGTH | AC500V 50Hz / 1 Minute | |
| LIFE EXPECTANCY | 10,000 cycles | |

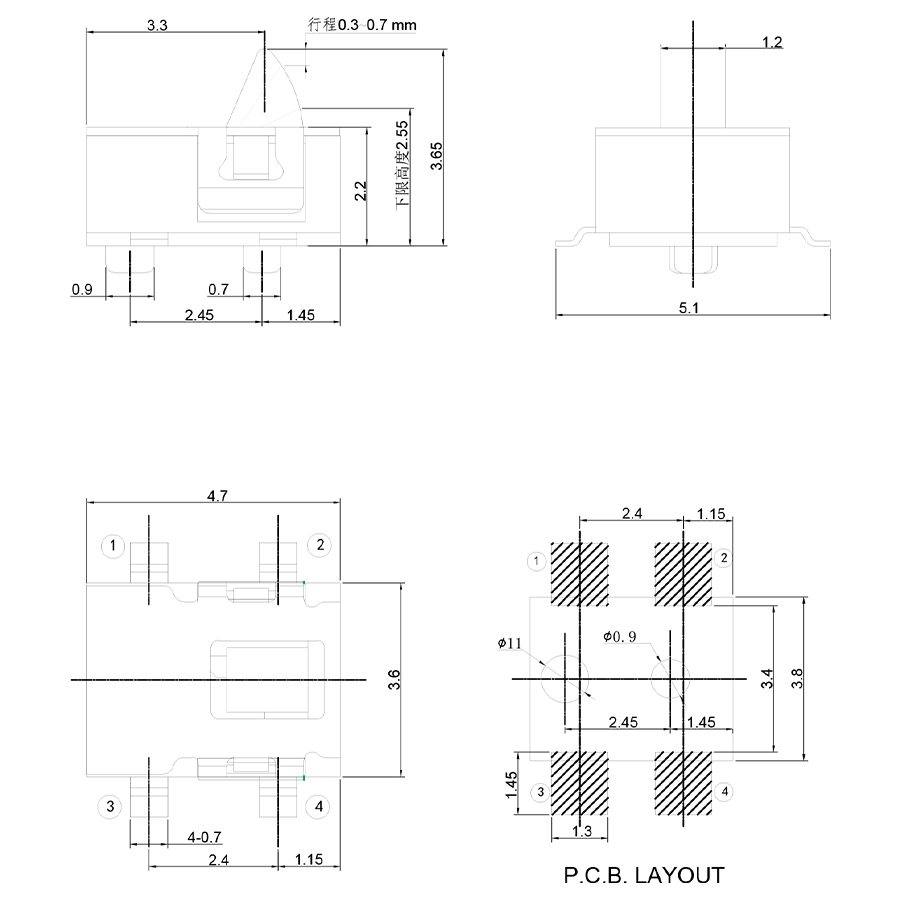

※ DIAGRAM
