WATERPROOF RATING: IP67
ELECTRICAL RATING: 50mA @ 12VDC
LIFE EXPECTANCY: 100,000 Cycles, 300,000 Cycles
CONTACT RESISTANCE: 50mΩ Max.
INSULATION RESISTANCE: 100MΩ Min.
DIELECTRIC STRENGTH: 250V AC for 1minute
ACTUATION FORCE: 230gf/330gf± 50gf
OPERATING TEMPERATURE: -25°C to 70°C

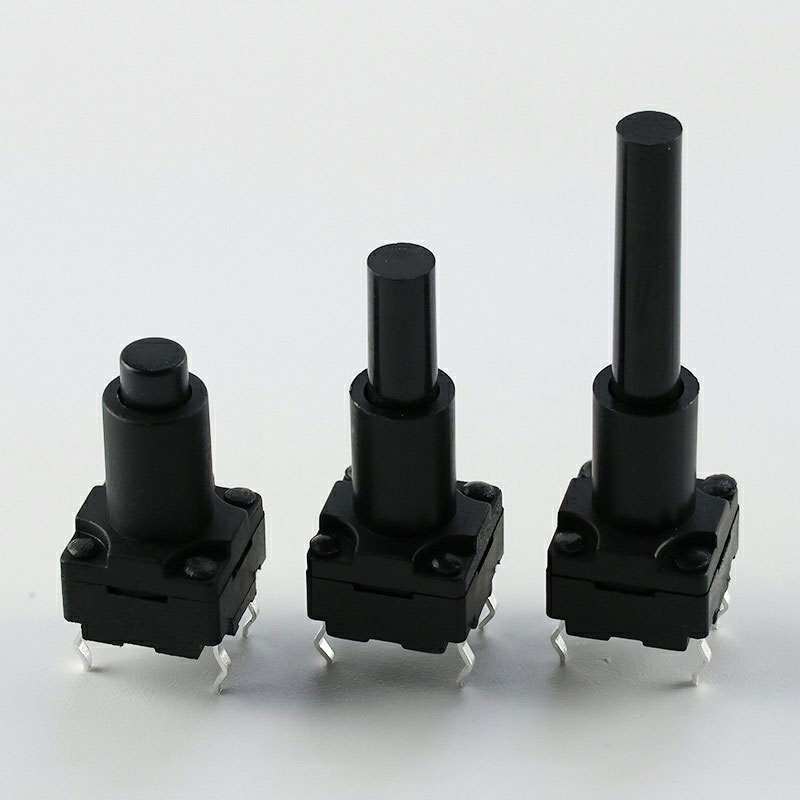

The TSW08115 from KHON are 8mm waterproof tactile switch. His cover plate has a 6.9mm high sheath which can protect switches well, Especially for switches with a height of more than 15mm, we suggest you choose this type.
※ TSW08115
| Funtion: | Momentary action |
| Contact Arrangement: | SPST, Normally Open |
| Termination: | THD version |
※ SPECIFICATION
| ELECTRICAL RATING | 50mA , DC12V | ||
| CONTACT RESISTANCE | ≤50mΩ | ≤100mΩ | |
| INSULATION RESISTANCE | ≥100MΩ | ||
| DIELECTRIC STRENGTH | AC250V for 1 Minute | ||
| LIFE EXPECTANCY | 100,000 cycles | ||
| TRAVEL | 0.25mm±0.1mm | ||
| IP GRADE | IP67 | ||

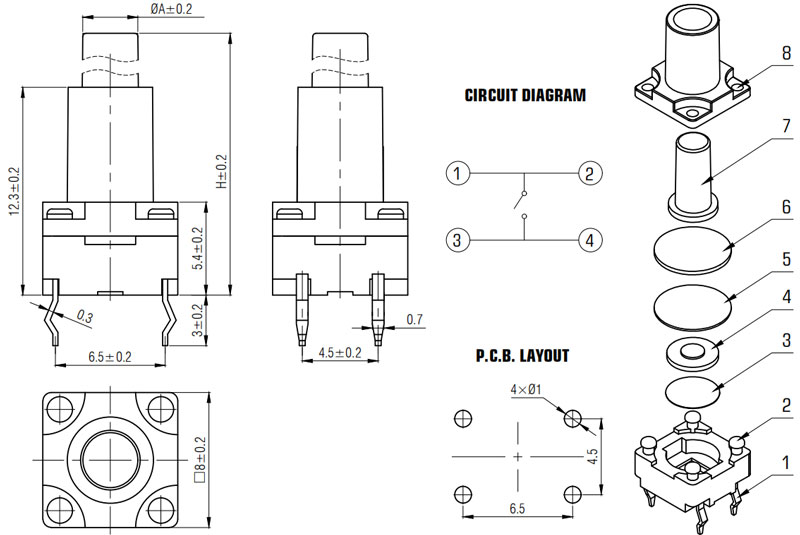

※ DIAGRAM
| H | 13.5 | 14 | 14.5 | 15 | 15.5 | 16 | 16.5 | 17 | 17.1 | 17.5 | 18 | 18.5 | 18.5 | 19 | 19.5 | 20 |
| A | 3.2 | 3.1 | 3.2 | 3 | 3.2 | 3.1 | 3.1 | 3.2 | 3.1 | 3.2 | 3.2 | 3.2 | 2 | 3 | 3.2 | 3 |
| H | 20.5 | 21 | 21.2 | 21.7 | 22.5 | 23.5 | 24.5 | 25 | 26 | 26.3 | 26.5 | 27.5 | 28.7 | 29.5 | 30.5 | 32.5 |
| A | 3.1 | 3 | 3 | 3.2 | 3.1 | 3.2 | 3.1 | 3.2 | 3 | 3.1 | 3 | 3.2 | 3 | 2.9 | 3 | 3.1 |
