WATERPROOF RATING: IP67
ELECTRICAL RATING: 50mA @ 12VDC
LIFE EXPECTANCY: 100,000 Cycles,
CONTACT RESISTANCE: 50mΩ Max.
INSULATION RESISTANCE: 100MΩ Min.
DIELECTRIC STRENGTH: 250V AC for 1minute
ACTUATION FORCE: 180gf/280gf± 50gf
OPERATING TEMPERATURE: -25°C to 70°C

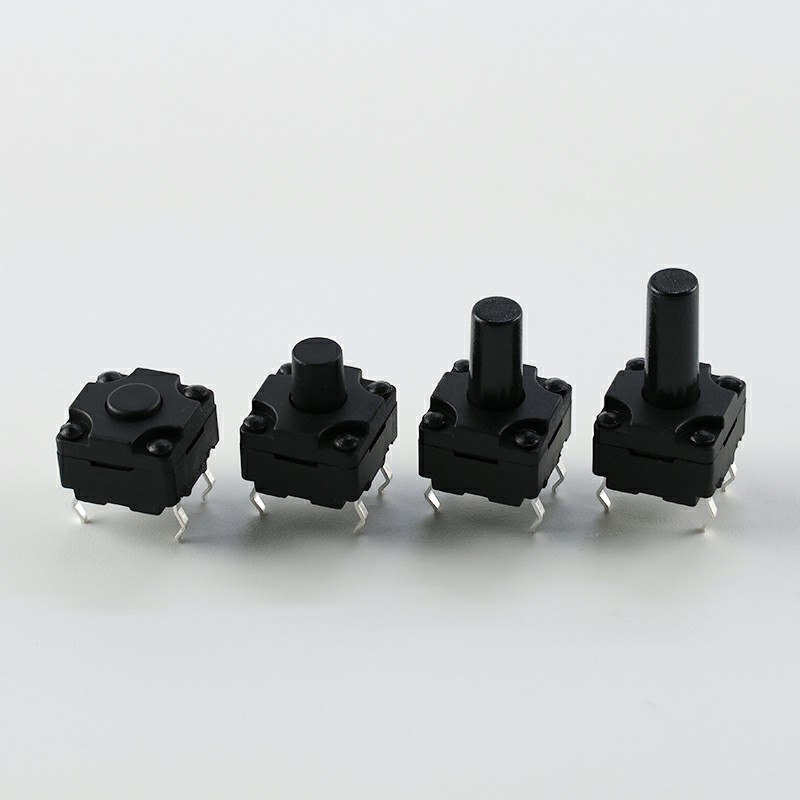

※ TSW08111
| Funtion: | Momentary action |
| Contact Arrangement: | SPST, Normally Open |
| Termination: | THD version |
※ SPECIFICATION
| ELECTRICAL RATING | 50mA , DC12V | ||
| CONTACT RESISTANCE | ≤50mΩ | ≤100mΩ | |
| INSULATION RESISTANCE | ≥100MΩ | ||
| DIELECTRIC STRENGTH | AC250V for 1 Minute | ||
| LIFE EXPECTANCY | 100,000 cycles | ||
| TRAVEL | 0.25mm±0.1mm | ||
| IP GRADE | IP67 | ||

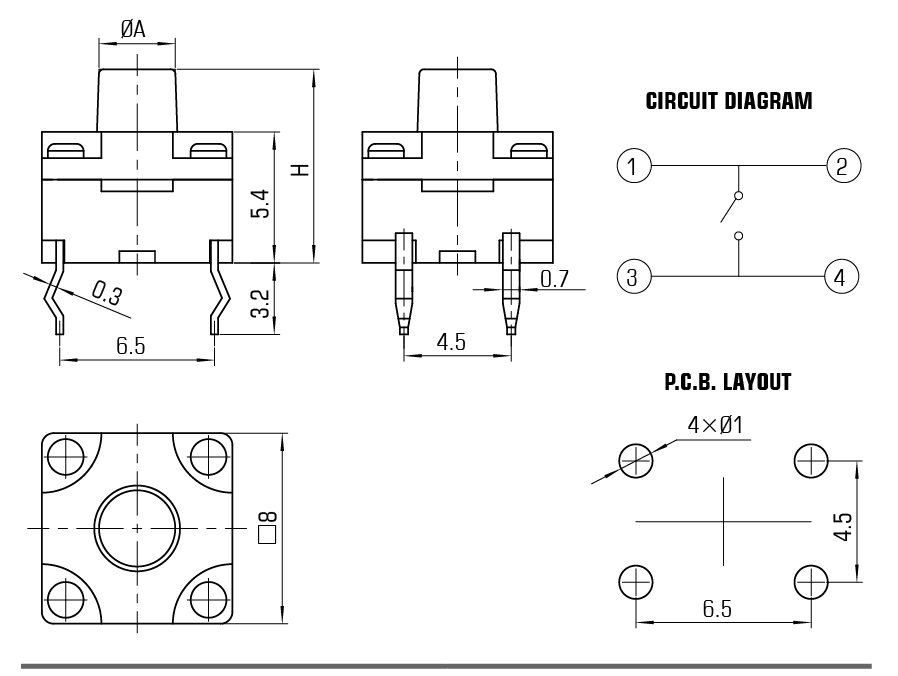

※ DIAGRAM
| H | 6 | 6.3 | 6.5 | 7 | 7.5 | 7.9 | 8 | 8.1 | 8.5 | 8.8 | 9 | 9.5 | 10 | 10.3 | 10.5 |
| A | 3.4 | 3.4 | 3.5 | 3.2 | 3.2 | 3 | 3.2 | 3.1 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | 3.1 | 3.1 |
| H | 11 | 11.2 | 11.4 | 11.5 | 11.8 | 12 | 12.5 | 13 | 13.5 | 14 | 14.5 | 15 | 15.5 | 16 | |
| A | 3.1 | 3.1 | 3.2 | 3.2 | 3.2 | 3 | 3.1 | 3.2 | 3.2 | 3.1 | 3.2 | 3 | 3.2 | 3.1 | |
