WATERPROOF RATING: IP67
ELECTRICAL RATING: 50mA @ 12VDC
LIFE EXPECTANCY: 100,000 Cycles,
CONTACT RESISTANCE: 50mΩ Max.
INSULATION RESISTANCE: 100MΩ Min.
DIELECTRIC STRENGTH: 250V AC for 1minute
ACTUATION FORCE: 180gf/280gf± 50gf
OPERATING TEMPERATURE: -25°C to 70°C

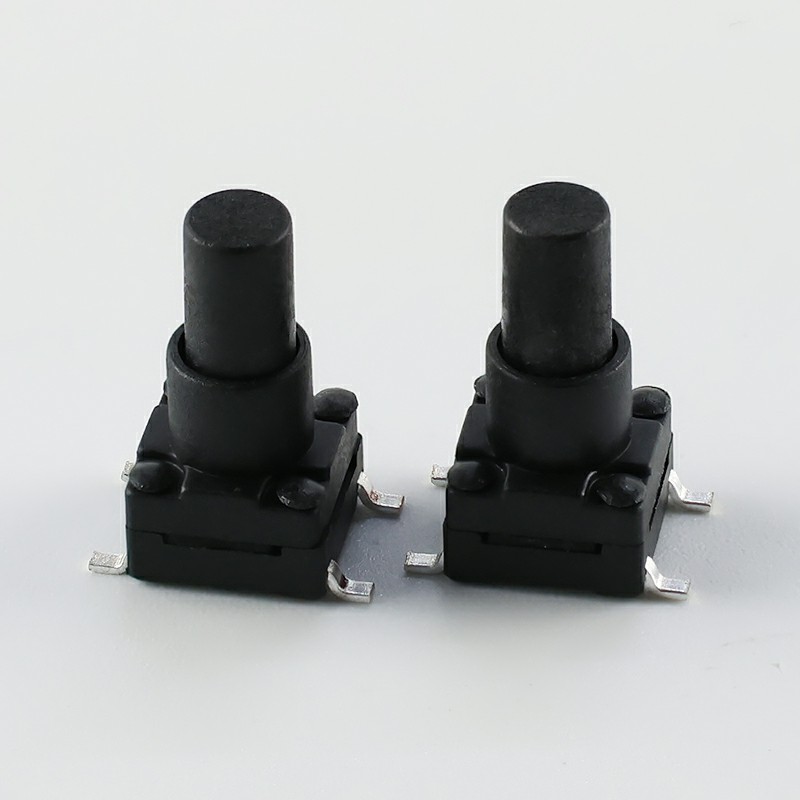

※ TSX06352
| Funtion: | Momentary action |
| Contact Arrangement: | SPST, Normally Open |
| Termination: | SMD version |
※ SPECIFICATION
| Contact Rating | 50mA DC12V | |||
| Dielectric Strength | AC250V for 1 Minute | |||
| Contact Resistance | ≤100 mΩ Max. | |||
| Insulation Resistance | 100MΩ Min. | |||
| Life Expectancy | 100,000 cycles | |||
| Travel | 0.3mm ± 0.1mm | |||
| IP GRADE | IP67 | |||

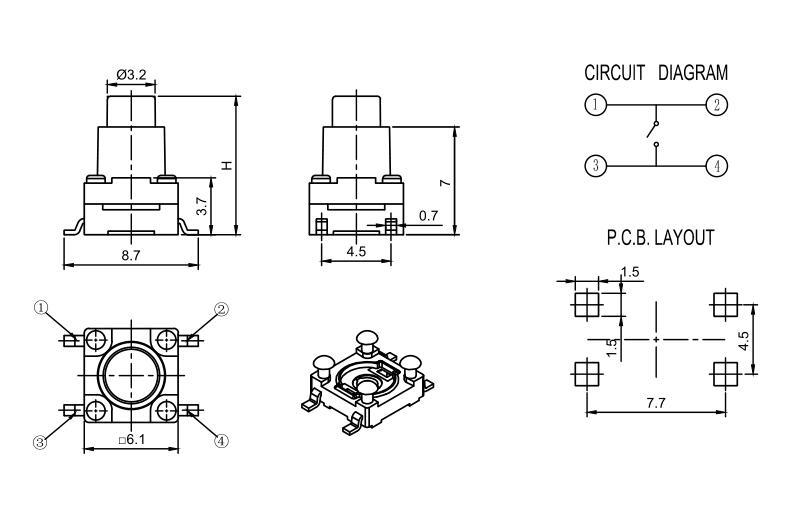

※ DIAGRAM
