WATERPROOF RATING: IP67
ELECTRICAL RATING: 50mA @ 12VDC
LIFE EXPECTANCY: 100,000 Cycles,
CONTACT RESISTANCE: 50mΩ Max.
INSULATION RESISTANCE: 100MΩ Min.
DIELECTRIC STRENGTH: 250V AC for 1minute
ACTUATION FORCE: 180gf/280gf± 50gf
OPERATING TEMPERATURE: -25°C to 70°C

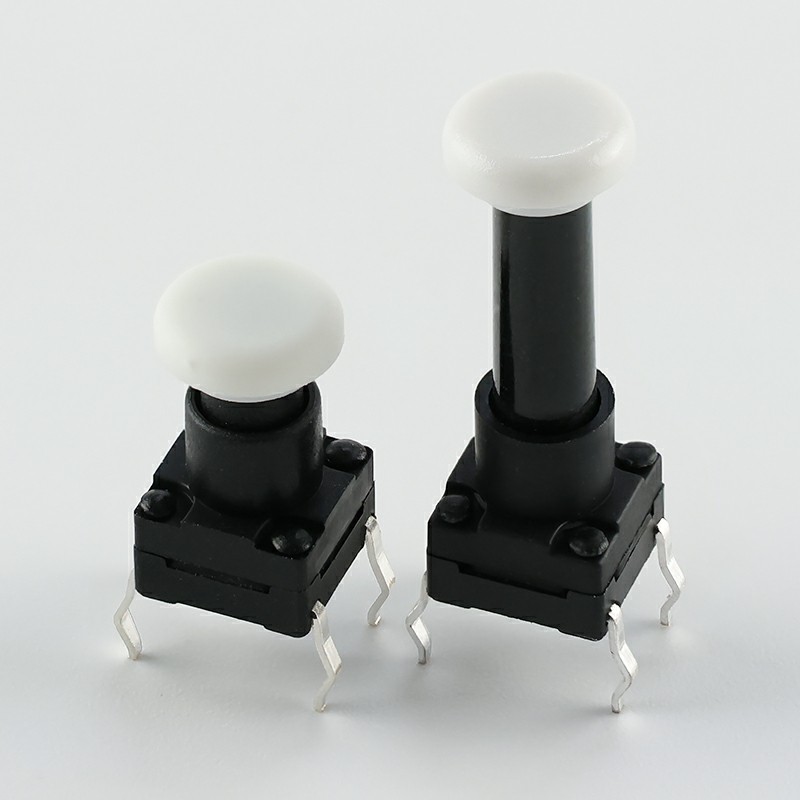

※ TSW06112-0030
| Funtion: | Momentary action |
| Contact Arrangement: | SPST, Normally Open |
| Termination: | THD version |
※ SPECIFICATION
| ELECTRICAL RATING | 50mA , DC12V | |
| CONTACT RESISTANCE | ≤100mΩ | |
| INSULATION RESISTANCE | ≥100MΩ | |
| DIELECTRIC STRENGTH | AC250V for 1 Minute | |
| LIFE EXPECTANCY | 100,000 cycles | |
| TRAVEL | 0.25mm±0.1mm | |
| IP GRADE | IP67 | |

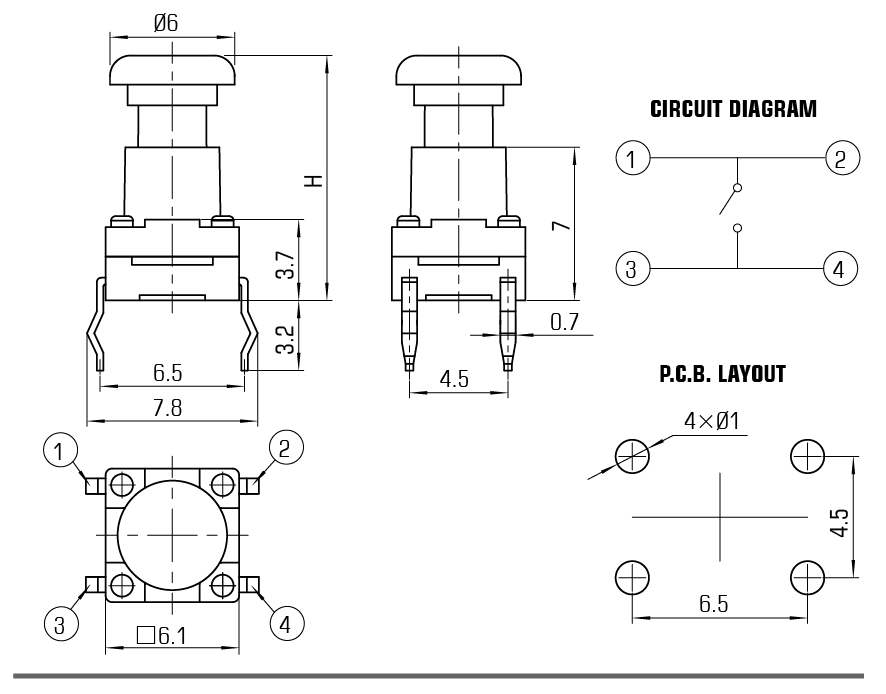

※ DIAGRAM
| H | 9 | 9.5 | 9.8 | 10 | 10.5 | 10.7 | 10.9 | 11 | 11.3 | 11.5 | 12 | 12.5 | 13 | 13.5 | 14 |
| H | 14.5 | 15 | 15.5 | 16 | 16.5 | 16.6 | 17 | 17.5 | 18 | 18 | 18.5 | 19 | 19.5 | 20 | 20.5 |
| H | 20.7 | 21.2 | 22 | 23 | 24 | 24.5 | 25.5 | 25.8 | 26 | 27 | 28.2 | 29 | 30 | 32 |
