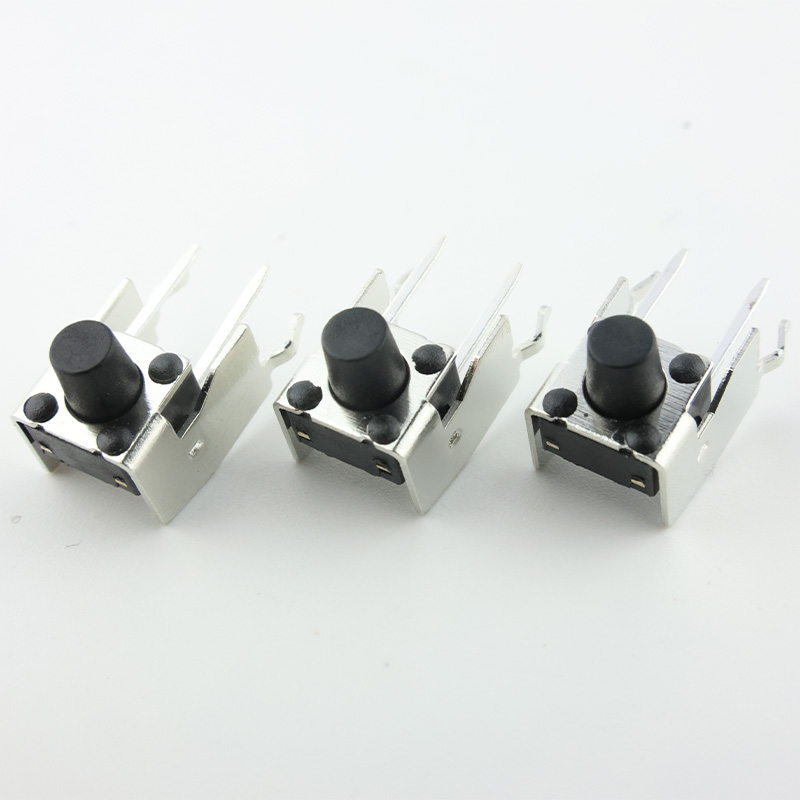

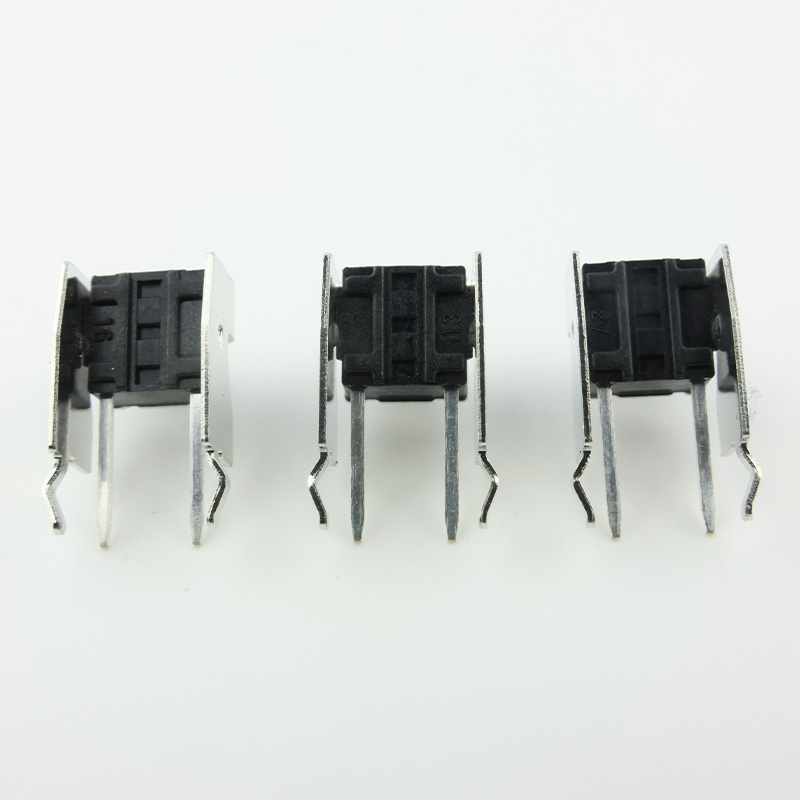

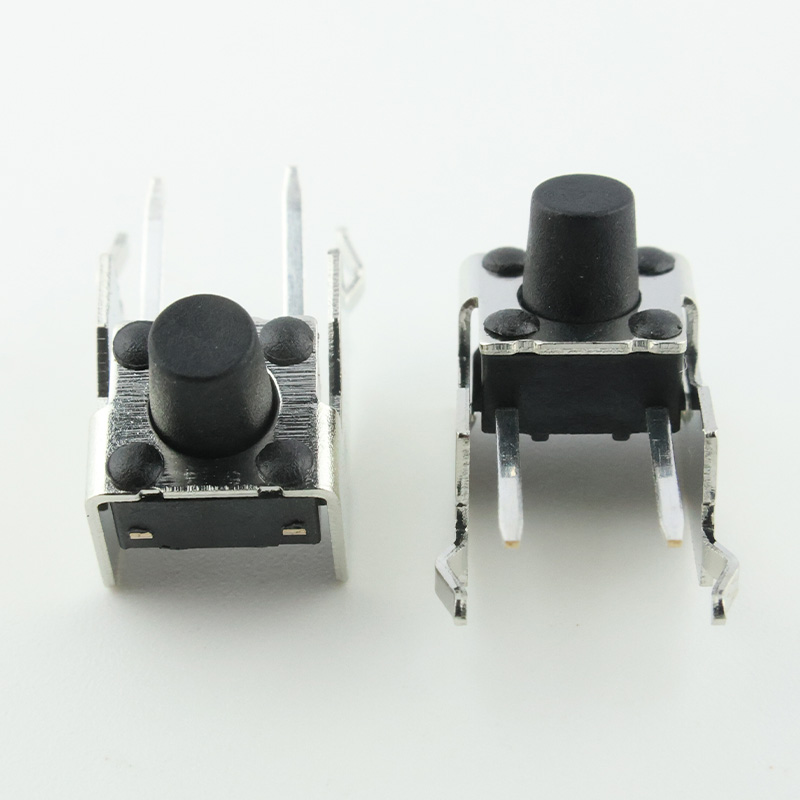

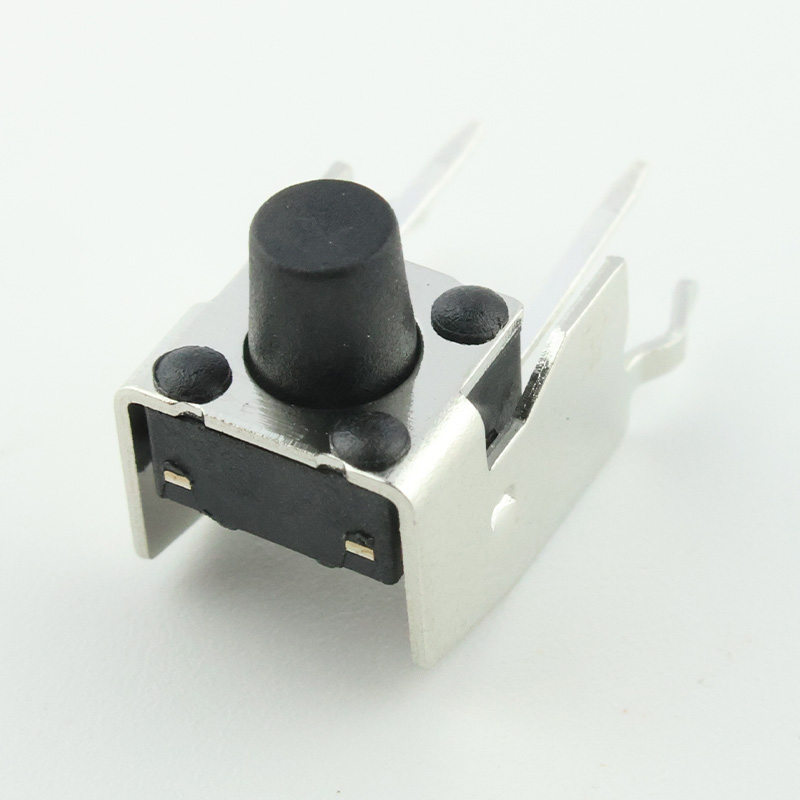

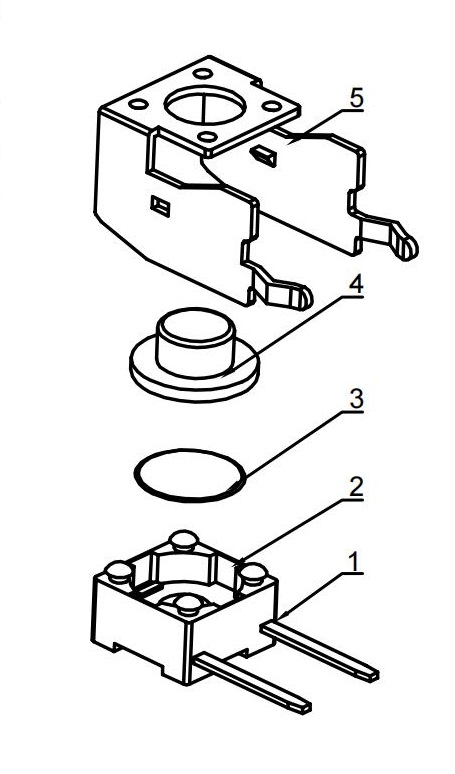

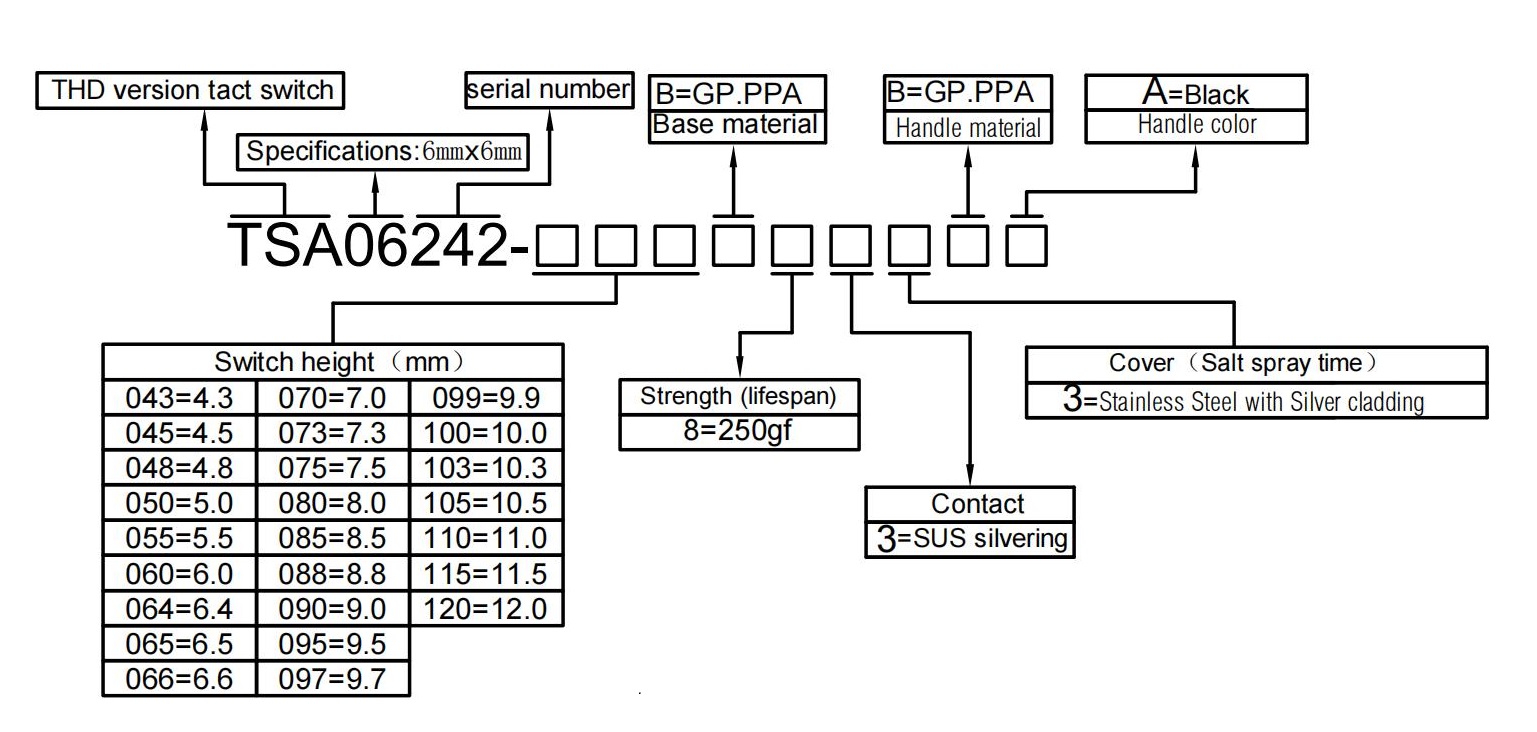

※ TSA06242
| Funtion: | Momentary action |
| Contact Arrangement: | SPST, Normally Open |
| Termination: | Right angle version |
※ SPECIFICATION
| ELECTRICAL RATING | 50mA , DC12V |
| CONTACT RESISTANCE | ≤50mΩ/≤100mΩ |
| INSULATION RESISTANCE | ≥100MΩ |
| DIELECTRIC STRENGTH | AC250V for 1 Minute |
| LIFE EXPECTANCY | 100,000/300,000 cycles |
| TRAVEL | 0.25mm±0.1mm |

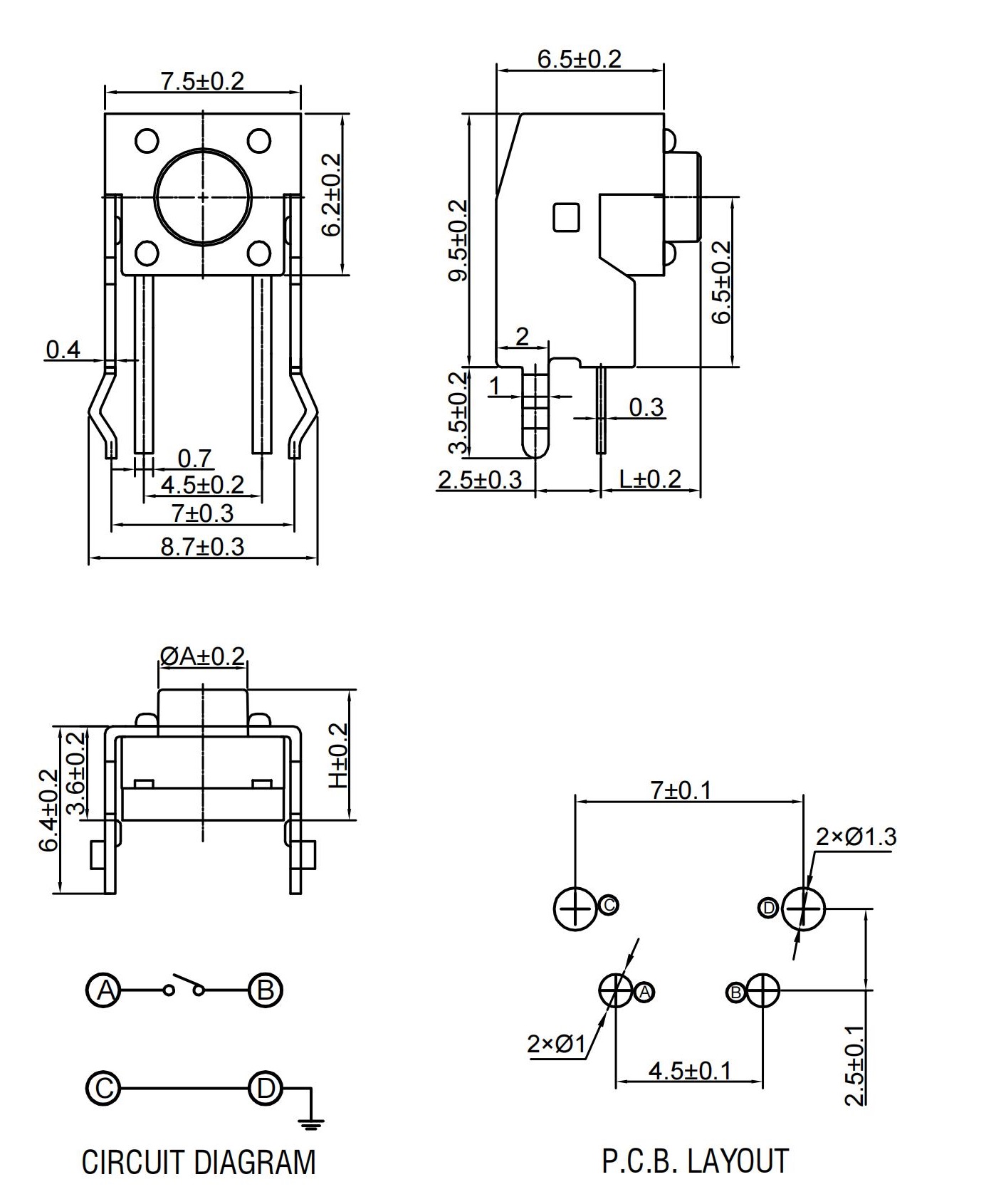

※ DIAGRAM
| H | 4.3 | 4.5 | 4.8 | 5 | 5.5 | 6 | 6.4 | 6.5 | 6.6 | 7 | 7.3 | 7.5 | 8 |
| A | 3.4 | 3.4 | 3.4 | 3.5 | 3.2 | 3.2 | 3 | 3.2 | 3.1 | 3.2 | 3.2 | 3.2 | 3.2 |
| L | 3.15 | 3.35 | 3.65 | 3.85 | 4.35 | 4.85 | 5.25 | 5.35 | 5.45 | 5.85 | 6.15 | 6.35 | 6.85 |
| H | 8.5 | 8.8 | 9 | 9.5 | 9.7 | 9.9 | 10 | 10.3 | 10.5 | 11 | 11.5 | 12 | |
| A | 3.2 | 3.1 | 3.1 | 3.2 | 3.1 | 3.2 | 3.2 | 3.2 | 3 | 3.1 | 3.2 | 3.2 | |
| L | 7.35 | 7.65 | 7.85 | 8.35 | 8.55 | 8.75 | 8.85 | 9.15 | 9.35 | 9.85 | 10.35 | 10.85 |
