ELECTRICAL RATING: 50mA @ 12VDC
LIFE EXPECTANCY: 100,000 Cycles, 300,000 Cycles,500,000 Cycles，
CONTACT RESISTANCE: 50mΩ Max.
INSULATION RESISTANCE: 100MΩ Min.
DIELECTRIC STRENGTH: 250V AC for 1minute
ACTUATION FORCE: 130/180gf/250gf/280gf/360gf ± 50gf
OPERATING TEMPERATURE: -25°C to 70°C

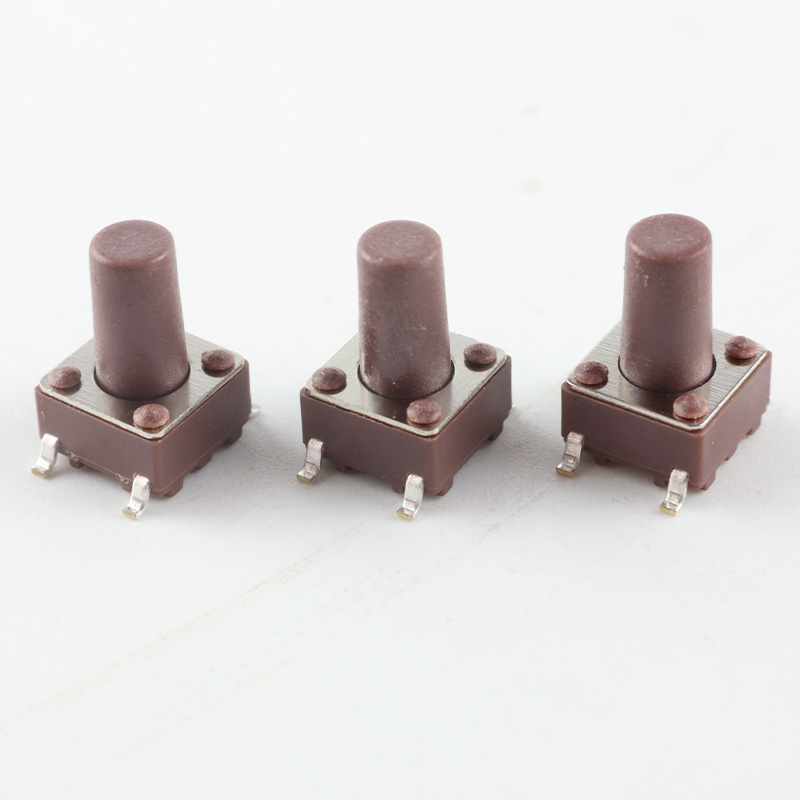

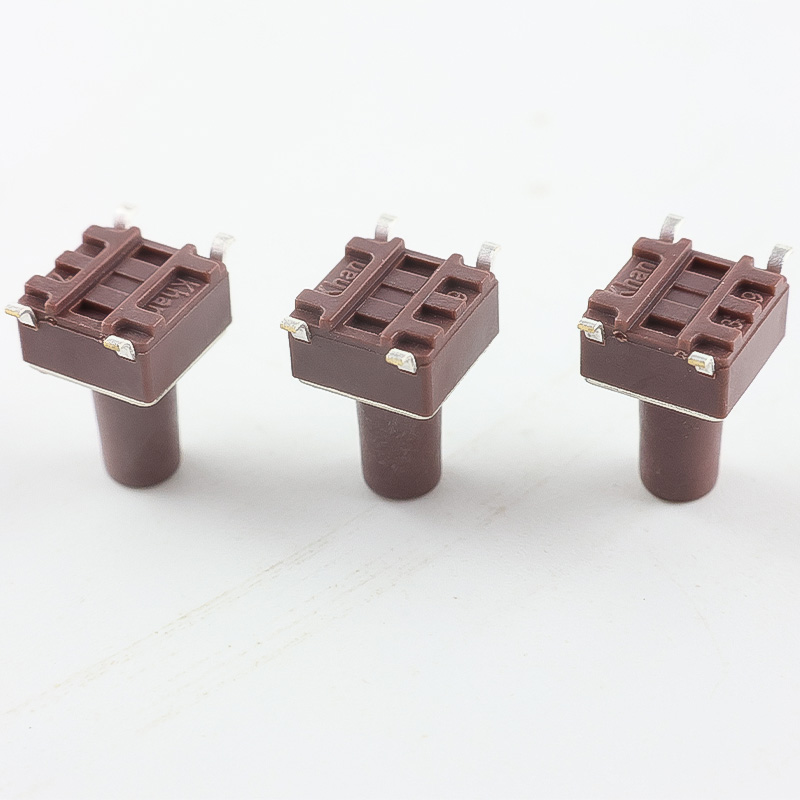

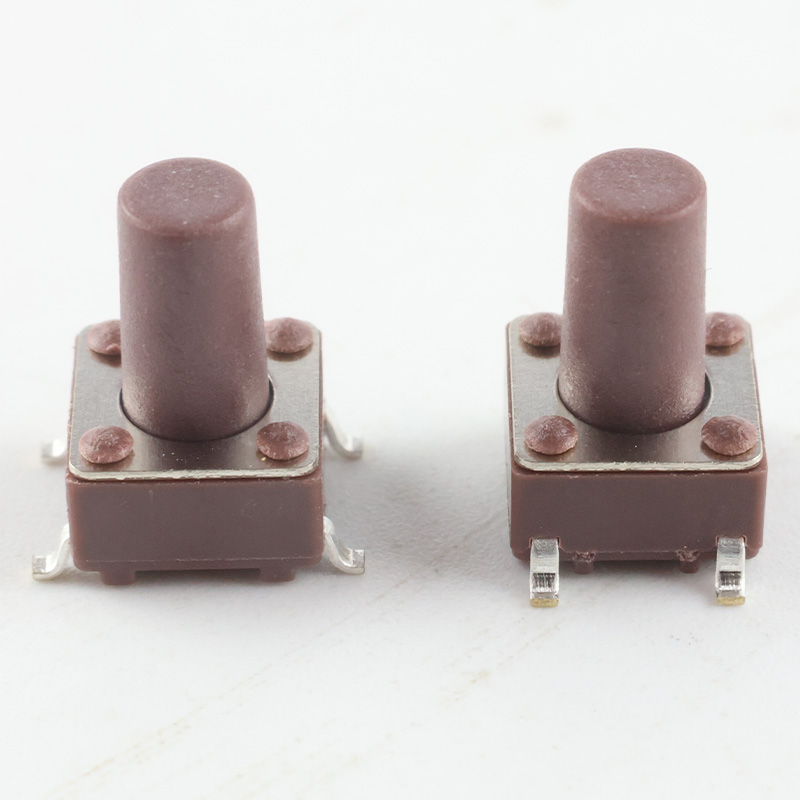

※ TSB06831
| Funtion: | Momentary action |
| Contact Arrangement: | SPST, Normally Open |
| Termination: | SMD version |
※ SPECIFICATION
| Contact Rating | 50mA DC12V |
| Dielectric Strength | AC250V for 1 Minute |
| Contact Resistance | 100 mΩ Max. |
| Insulation Resistance | 100MΩ Min. |
| Life Expectancy | 100,000/300,000 cycles |
| Travel | 0.25mm ± 0.1mm |

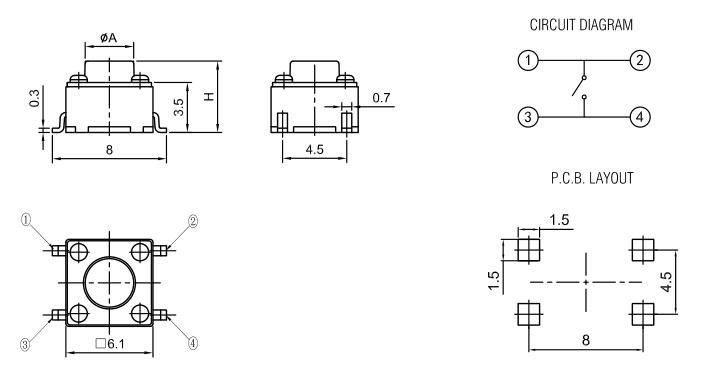

※ DIAGRAM
| H | 4.3 | 4.5 | 4.8 | 5 | 5.5 | 6 | 6.4 | 6.5 | 6.6 | 7 | 7.3 | 7.5 | 8 | 8.5 |
| A | 3.4 | 3.4 | 3.4 | 3.5 | 3.2 | 3.2 | 3 | 3.2 | 3.1 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 |
| H | 8.8 | 9 | 9.5 | 9.7 | 9.9 | 10 | 10.3 | 10.5 | 11 | 11.5 | 12 | 12.5 | 13 | |
| A | 3.1 | 3.1 | 3.2 | 3.1 | 3.2 | 3.2 | 3.2 | 3 | 3.1 | 3.2 | 3.2 | 3.1 | 3.2 |
