ELECTRICAL RATING: 50mA @ 12VDC
LIFE EXPECTANCY: 100,000 Cycles, 300,000 Cycles,500,000 Cycles，
CONTACT RESISTANCE: 50mΩ Max.
INSULATION RESISTANCE: 100MΩ Min.
DIELECTRIC STRENGTH: 250V AC for 1minute
ACTUATION FORCE: 130/180gf/250gf/280gf/360gf ± 50gf
OPERATING TEMPERATURE: -25°C to 70°C

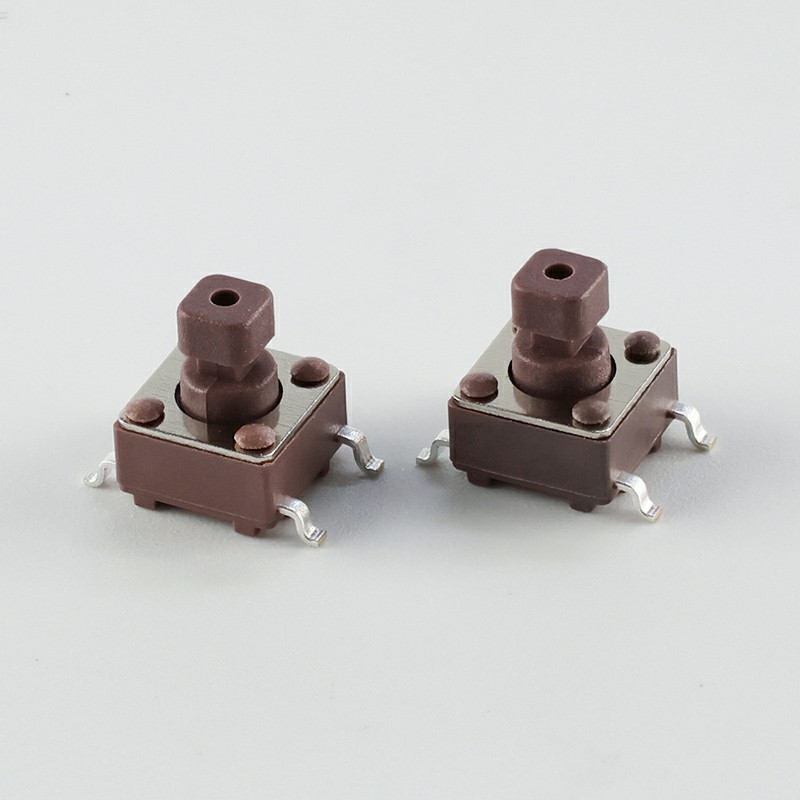

※ TSB06338
| Funtion | Momentary action |
| Contact Arrangement | SPST, Normally Open |
| Termination | SMD version |
※ SPECIFICATION
| Contact Rating | 50mA DC12V |
| Dielectric Strength | AC250V for 1 Minute |
| Contact Resistance | ≤100 mΩ Max. |
| Insulation Resistance | 100MΩ Min. |
| Life Expectancy | 100,000/300,000 cycles |
| Travel | 0.25mm±0.1mm |

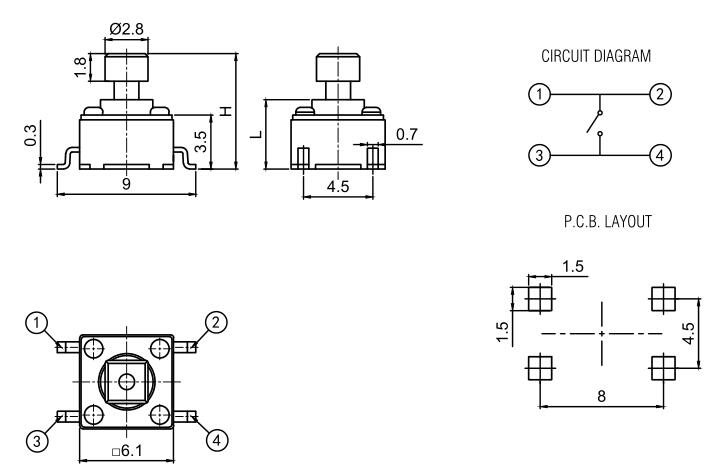

※ DIAGRAM
| H | 7 | 7.3 | 7.5 |
| L | 4.2 | 4.5 | 4.7 |
