ELECTRICAL RATING: 50mA @ 12VDC
LIFE EXPECTANCY: 100,000 Cycles, 300,000 Cycles,500,000 Cycles，
CONTACT RESISTANCE: 50mΩ Max.
INSULATION RESISTANCE: 100MΩ Min.
DIELECTRIC STRENGTH: 250V AC for 1minute
ACTUATION FORCE: 130/180gf/250gf/280gf/360gf ± 50gf
OPERATING TEMPERATURE: -25°C to 70°C

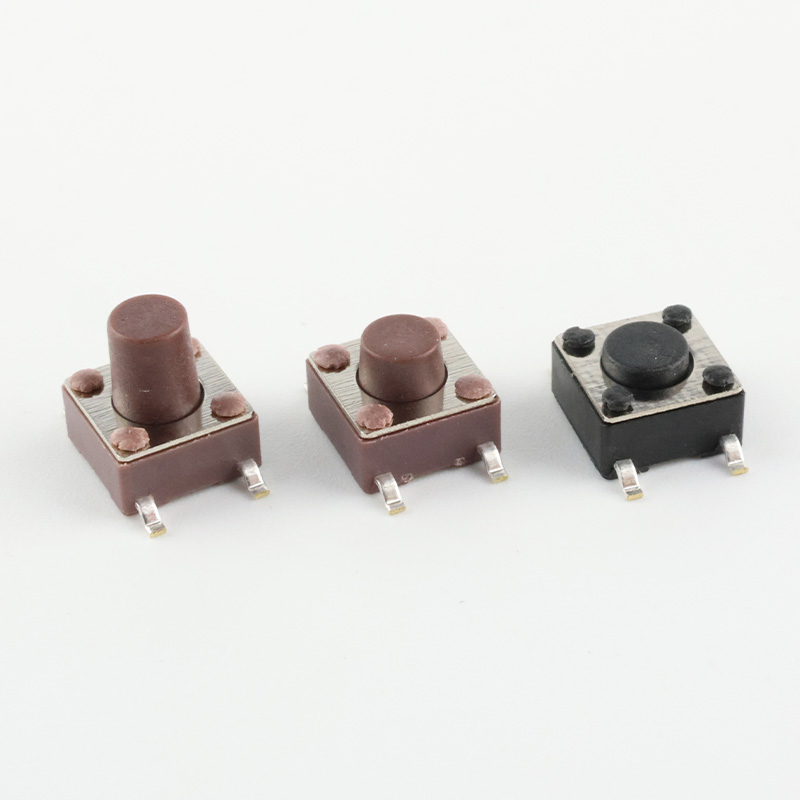

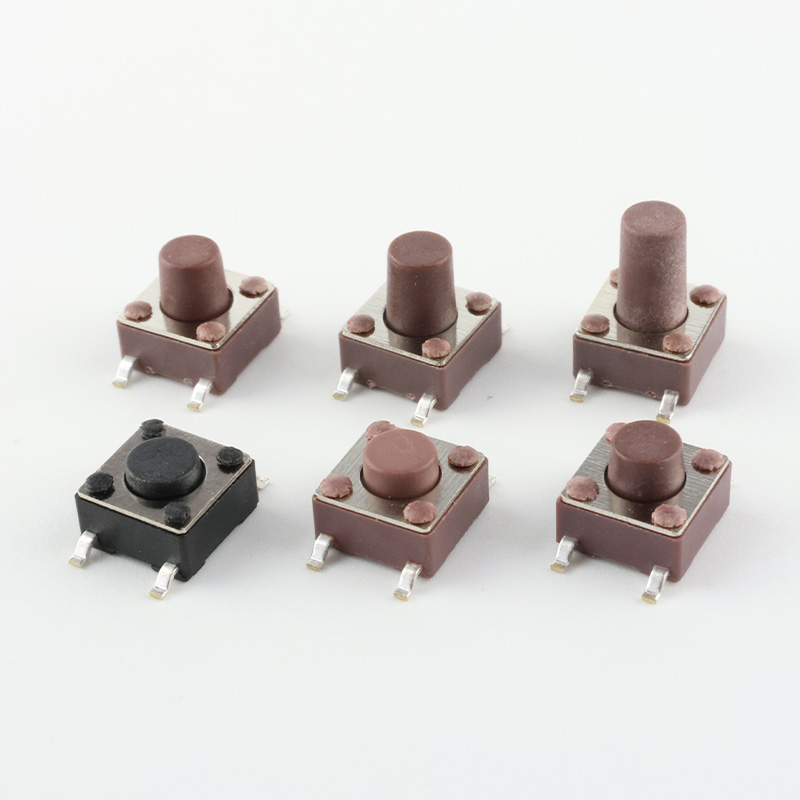

※ TSB06321
| Funtion: | Momentary action |
| Contact Arrangement: | SPST, Normally Open |
| Termination: | SMD version |
※ SPECIFICATION
| ELECTRICAL RATING | 50mA , DC12V |
| CONTACT RESISTANCE | ≤50mΩ / ≤100mΩ |
| INSULATION RESISTANCE | ≥100MΩ |
| DIELECTRIC STRENGTH | AC250V for 1 Minute |
| LIFE EXPECTANCY | 100,000/300,000 cycles |
| TRAVEL | 0.25mm±0.1mm |

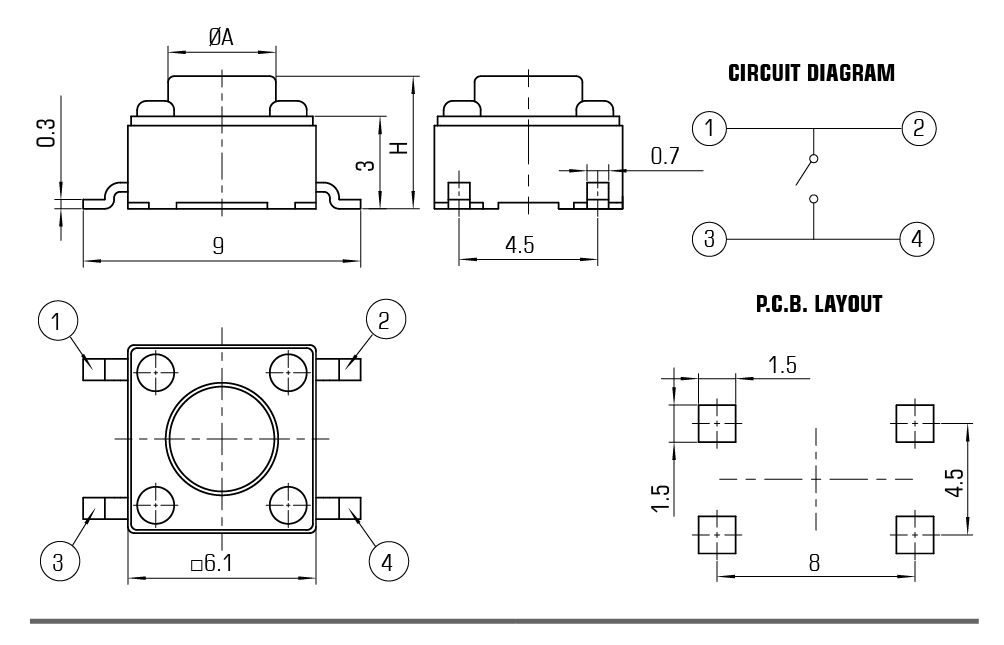

※ DIAGRAM
| H | 3.8 | 4 | 4.5 | 5 | 5.4 | 5.5 | 5.6 | 6 | 6.3 |
| A | 3.4 | 3.5 | 3.2 | 3.2 | 3 | 3.2 | 3.1 | 3.2 | 3.2 |
| H | 6.5 | 7 | 7.5 | 7.8 | 8 | 8.5 | 8.7 | 8.9 | 9 |
| A | 3.2 | 3.2 | 3.2 | 3.1 | 3.1 | 3.2 | 3.1 | 3.2 | 3.2 |
