ELECTRICAL RATING: 50mA @ 12VDC
LIFE EXPECTANCY: 100,000 Cycles, 300,000 Cycles,500,000 Cycles,
CONTACT RESISTANCE: 50mΩ Max.
INSULATION RESISTANCE: 100MΩ Min.
DIELECTRIC STRENGTH: 250V AC for 1minute
ACTUATION FORCE: 130/180gf/250gf/280gf/360gf ± 50gf
OPERATING TEMPERATURE: -25°C to 70°C

Add to Cart Specifications
Product Details

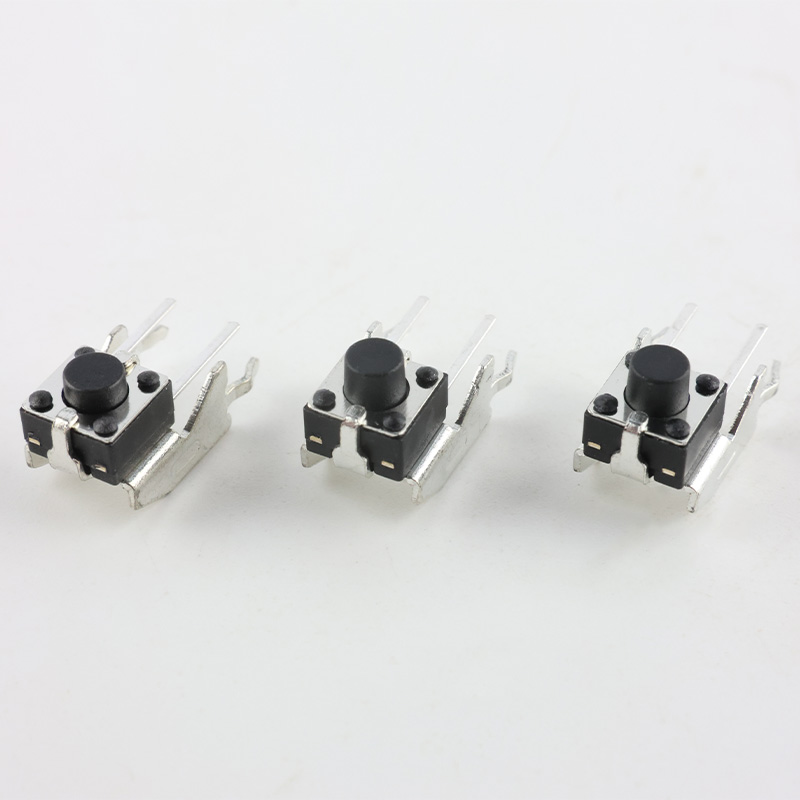

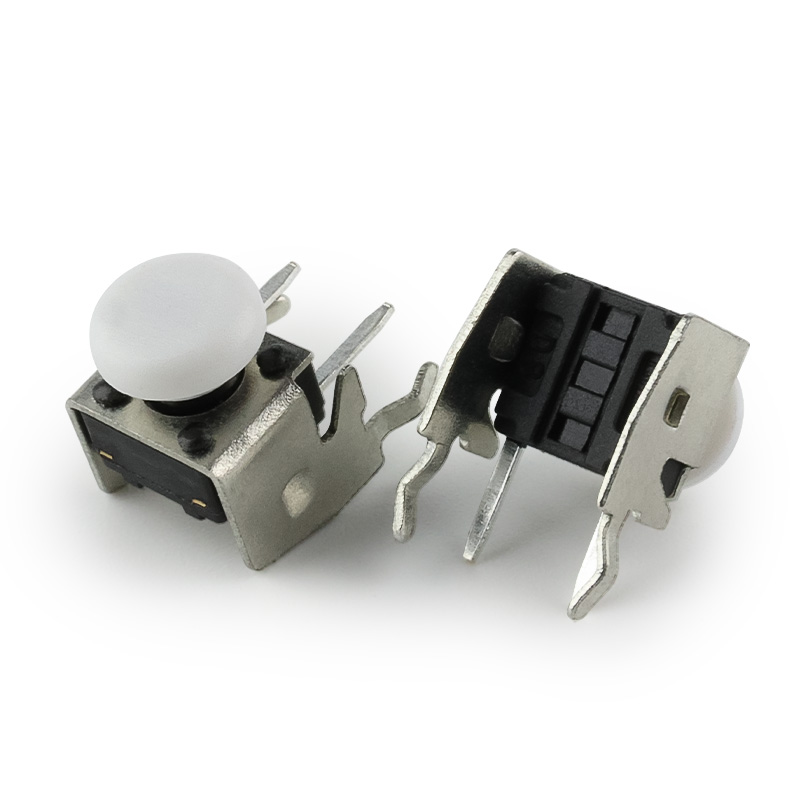

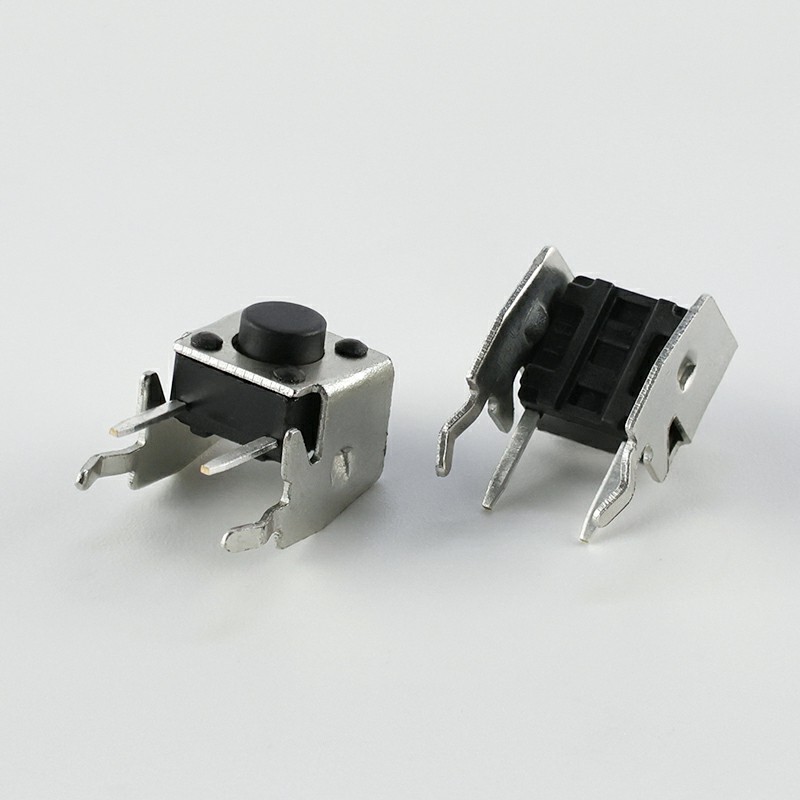

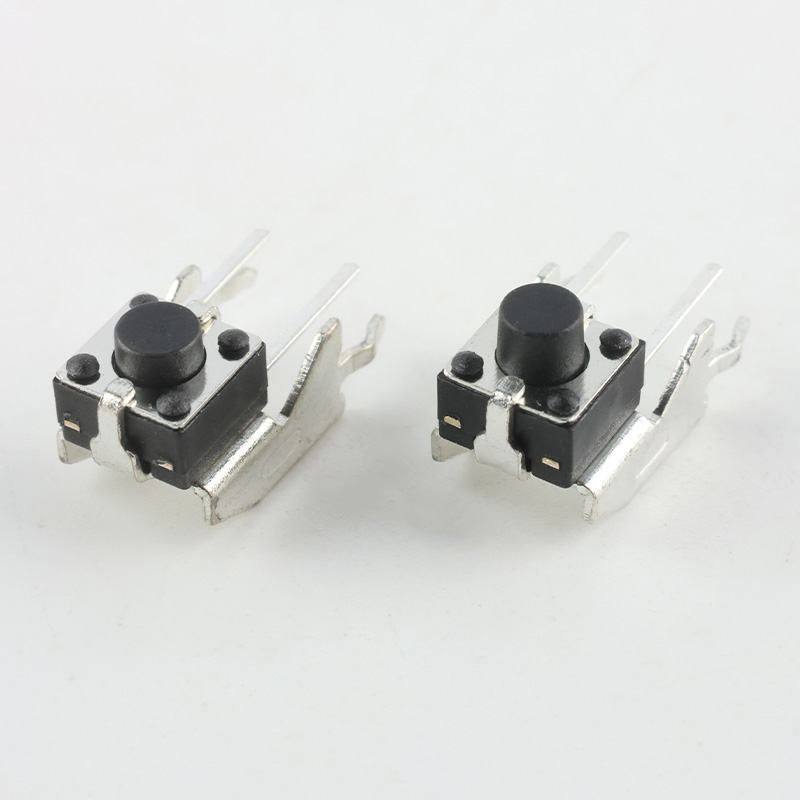

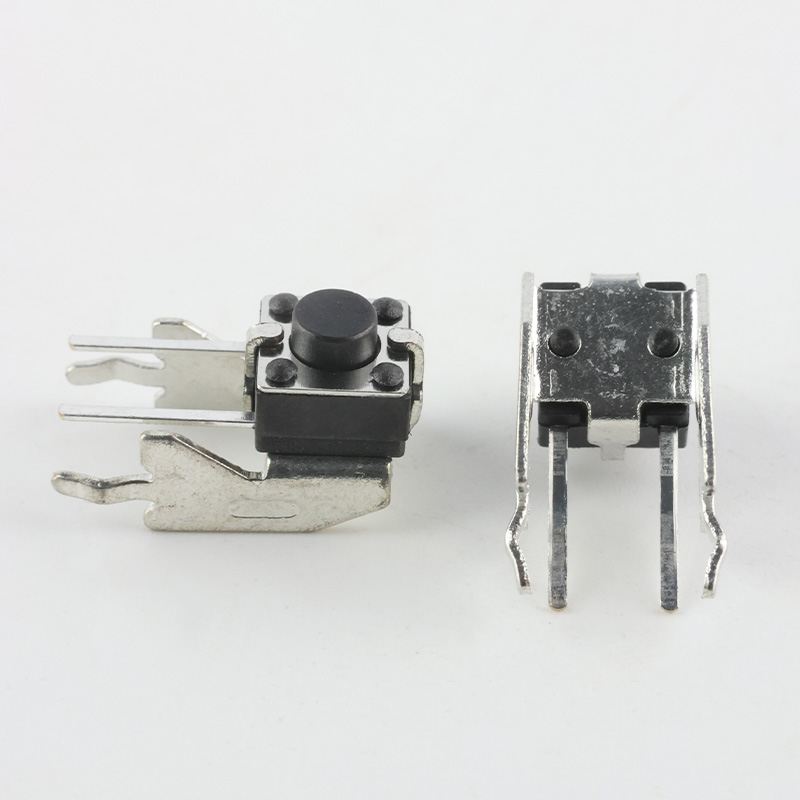

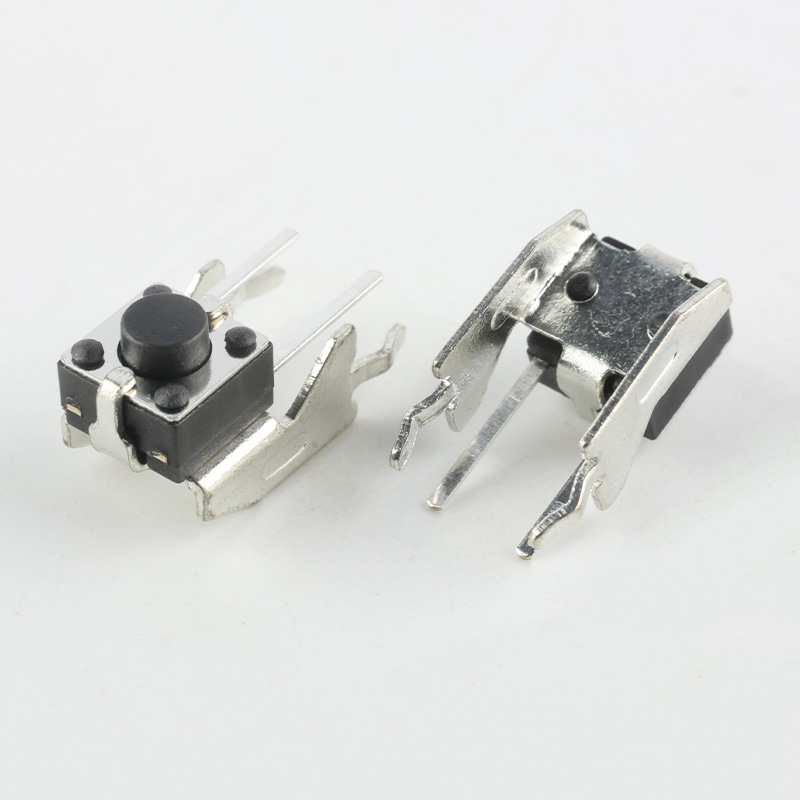

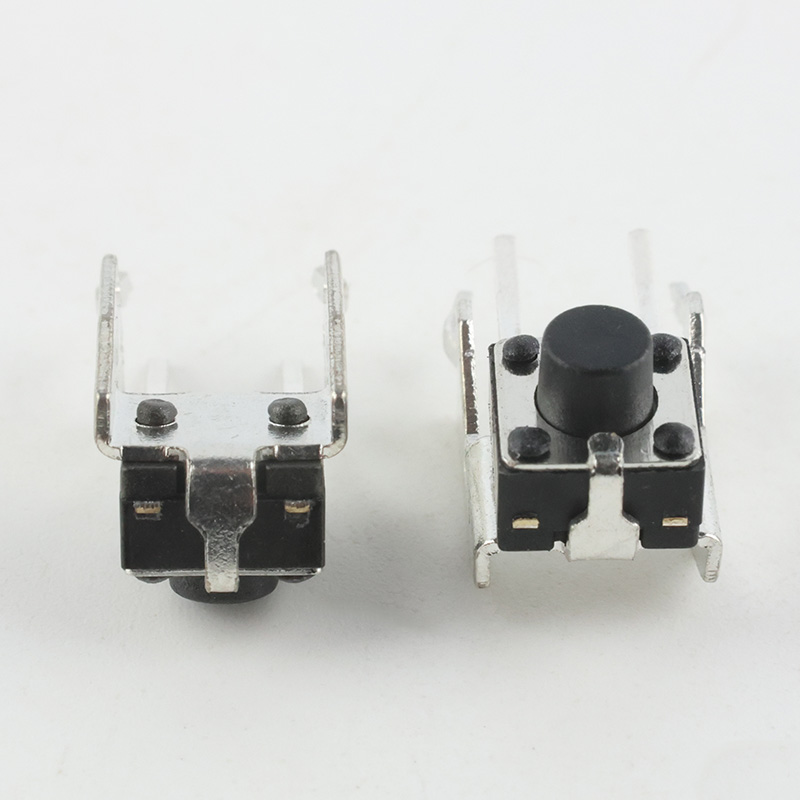

※ TSA06235

Funtion:  Momentary action
Contact Arrangement:  SPST, Normally Open
Termination: Right angle version



※ SPECIFICATION

Contact Rating 50mA DC12V
Dielectric Strength AC250V for 1 Minute
Contact Resistance ≤100 mΩ Max.
Insulation Resistance 100MΩ Min.
Life Expectancy 100,000 cycles
Travel 0.25mm ± 0.1mm

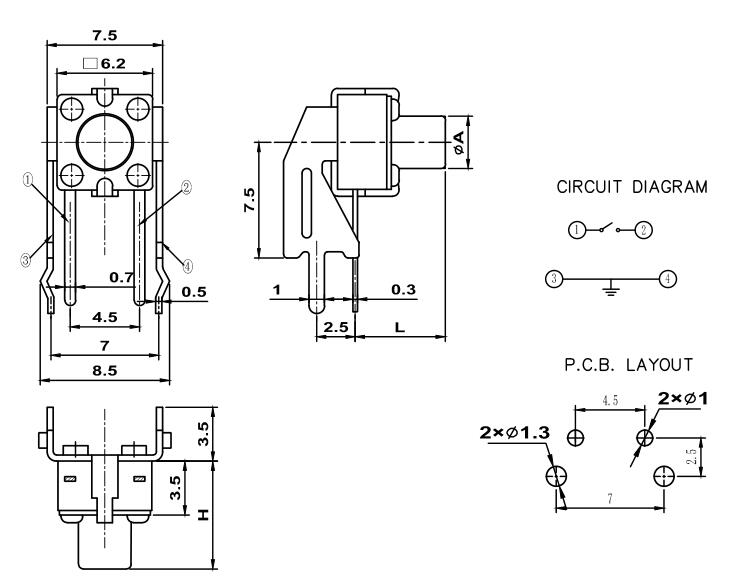

※ DIAGRAM

H 4.3 4.5 5 5.5 6 6.5 7 7.5 8 8.5 9 9.5 10 10.5
A 3.4 3.4 3.4 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.1 3.2 3.2 3
L 3.15 3.35 3.85 4.35 4.85 5.35 5.85 6.35 6.85 7.35 7.85 8.35 8.85 9.35
H 11 11.5 12 12.5 13 13.5 14 14.5 15 15.5 16 16.5 17
A 3.1 3.2 3.2 3.1 3.2 3 3.2 3.1 3.1 3.2 3.2 3.2 3.2
L 9.85 10.35 10.85 11.35 11.85 12.35 12.85 13.35 13.85 14.35 14.82 15.35 15.85
