TSB06153 Tact Switch
TSB06153 Tact Switch
TSB06153 Tact Switch
TSB06153 Tact Switch

TSB06153 Tact Switch

Funtion: Momentary action
Contact Arrangement: SPST
Termination: THD version
ELECTRICAL RATING: 50mA , DC12V
CONTACT RESISTANCE: ≤100mΩ
INSULATION RESISTANCE: ≥100MΩ
DIELECTRIC STRENGTH: AC250V 50Hz / 1 Minute
LIFE EXPECTANCY: 100,000 / 300,000 cycles

Add to Cart Specifications
Product Details

※ TSB06153

Funtion: Momentary action
Contact Arrangement: SPST, Normally Open
Termination: THD version



※ SPECIFICATION

ELECTRICAL RATING 50mA , DC12V
CONTACT RESISTANCE ≤50mΩ/≤100mΩ
INSULATION RESISTANCE ≥100MΩ
DIELECTRIC STRENGTH AC250V for 1 Minute
LIFE EXPECTANCY 100,000/300,000 cycles
TRAVEL 0.25mm±0.1mm

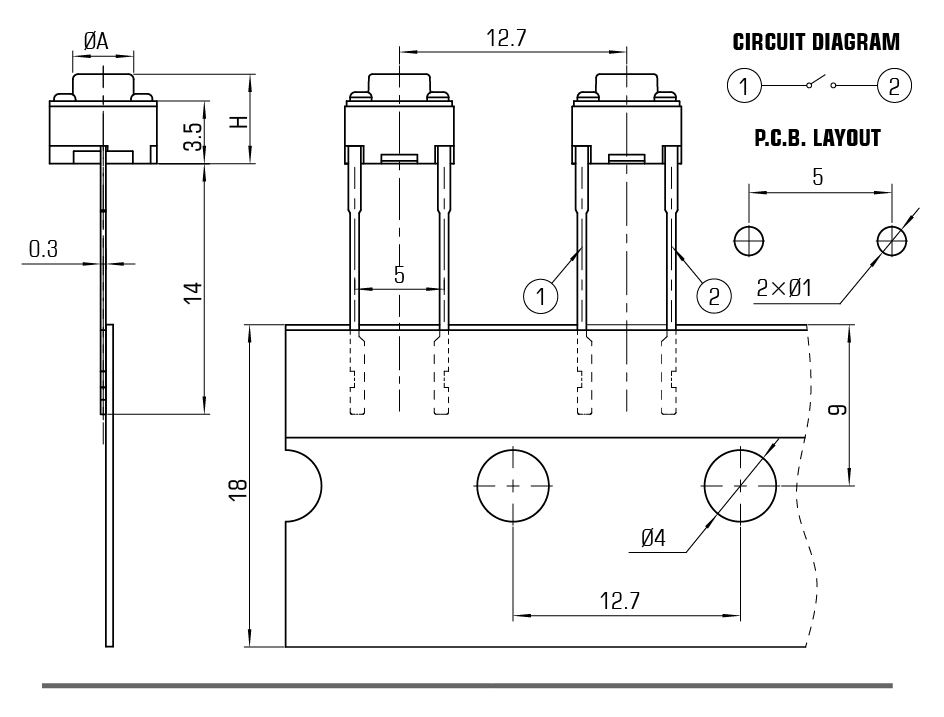

※ DIAGRAM

H 4.3 4.5 4.8 5 5.5 6 6.4 6.5 6.6 7 7.3 7.5 8 8.5 8.8
A 3.4 3.4 3.4 3.5 3.2 3.2 3 3.2 3.1 3.2 3.2 3.2 3.2 3.2 3.1
H 9 9.5 9.7 9.9 10 10.3 10.5 11 11.5 12 12.5 13 13.5 14 14.5
A 3.1 3.2 3.1 3.2 3.2 3.2 3 3.1 3.2 3.2 3.1 3.2 3 3.2 3.1
