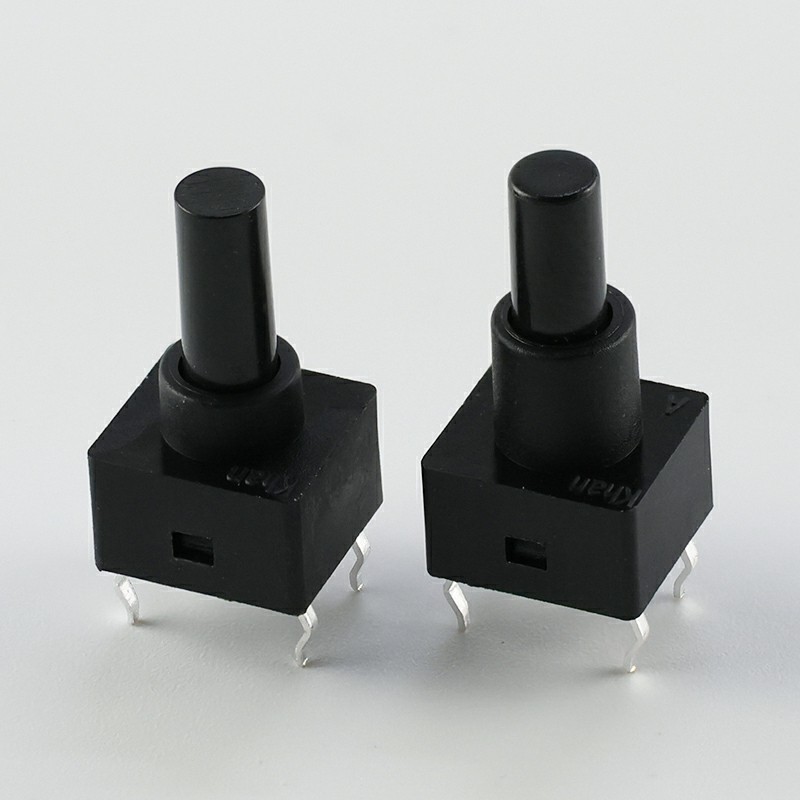

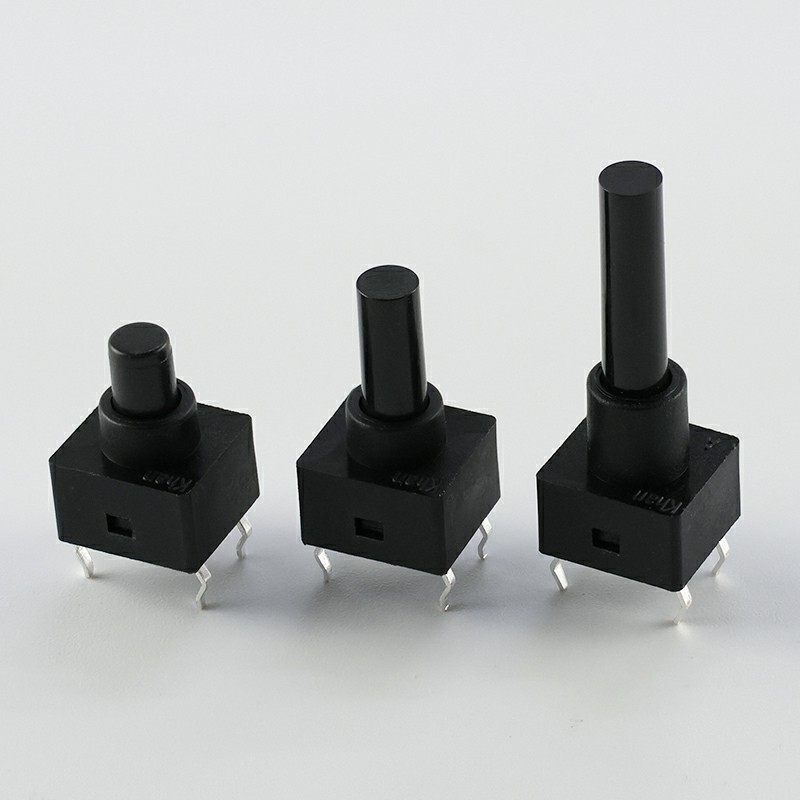

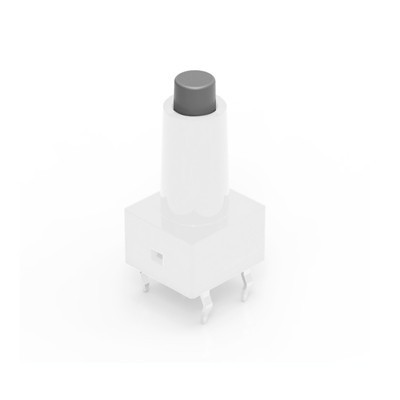

TSA06141-2000 Tact Switch
TSA06141-2000 Tact Switch
TSA06141-2000 Tact Switch
TSA06141-2000 Tact Switch
TSA06141-2000 Tact Switch

TSA06141-2000 Tact Switch

Funtion: Momentary action
Contact Arrangement: SPST
Termination: THD version
ELECTRICAL RATING: 50mA , DC12V
CONTACT RESISTANCE: ≤100mΩ
INSULATION RESISTANCE: ≥100MΩ
DIELECTRIC STRENGTH: AC250V 50Hz / 1 Minute
LIFE EXPECTANCY: 100,000 / 300,000 cycles

Add to Cart Specifications
Product Details

※ TSA06141-2000

Funtion: Momentary action
Contact Arrangement: SPST, Normally Open
Termination: THD version



※ SPECIFICATION

ELECTRICAL RATING 50mA , DC12V
CONTACT RESISTANCE ≤50mΩ/≤100mΩ
INSULATION RESISTANCE ≥100MΩ
DIELECTRIC STRENGTH AC250V for 1 Minute
LIFE EXPECTANCY 100,000/300,000 cycles
TRAVEL 0.25mm±0.1mm

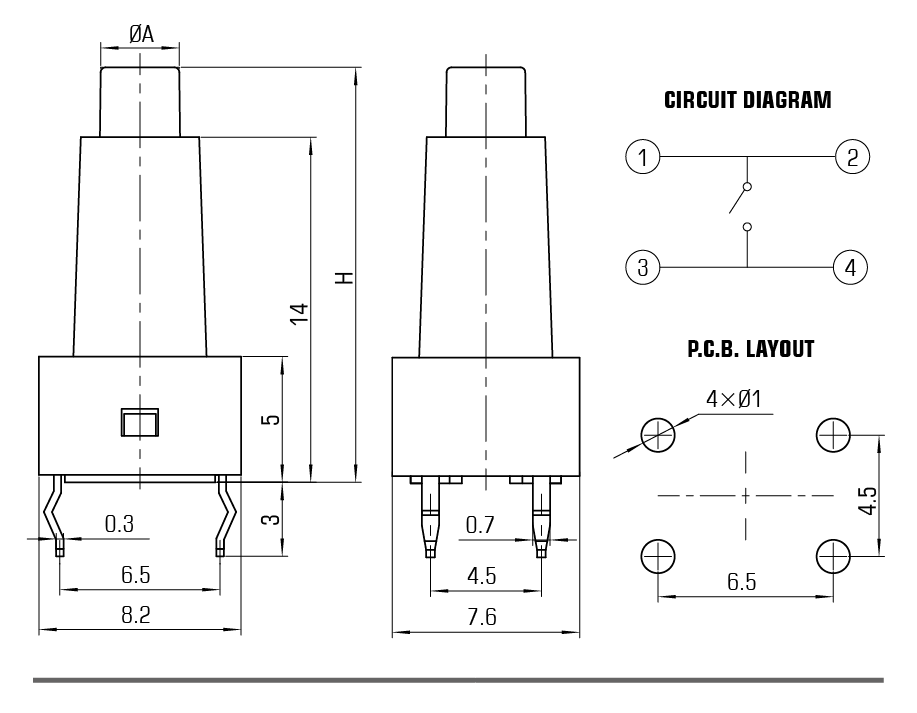

※ DIAGRAM

H 20.2 21 22 23 23.5 24.5 24.8 25 26 27.2 28 29 31
A 3.2 3.1 3.2 3.1 3.2 3 3.1 3 3.2 3 2.9 3 3.1
