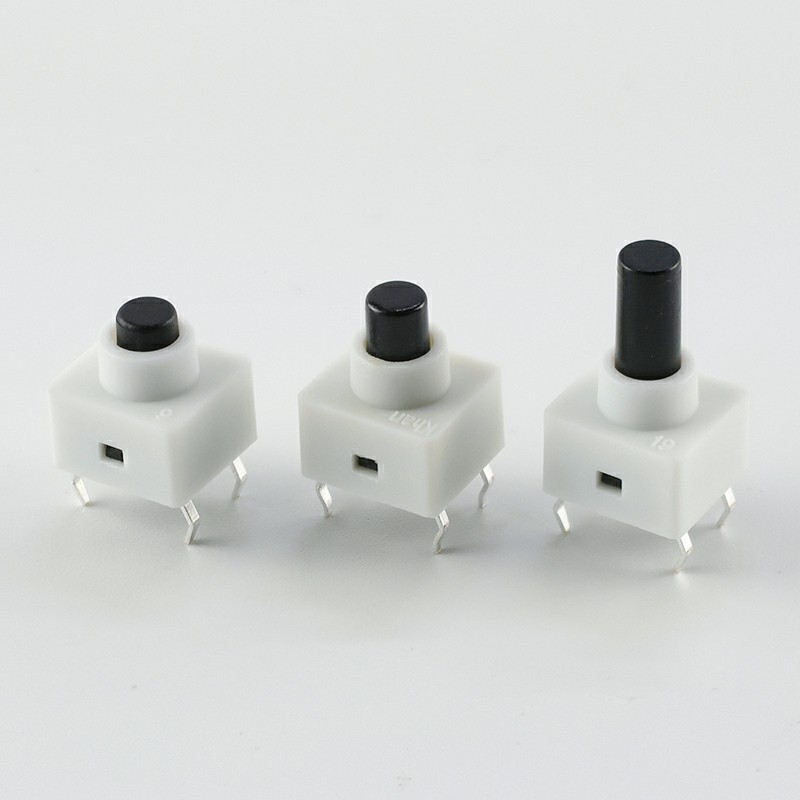

TSA06141-1000 Tact Switch
TSA06141-1000 Tact Switch
TSA06141-1000 Tact Switch

TSA06141-1000 Tact Switch

Funtion: Momentary action
Contact Arrangement: SPST
Termination: THD version
ELECTRICAL RATING: 50mA , DC12V
CONTACT RESISTANCE: ≤100mΩ
INSULATION RESISTANCE: ≥100MΩ
DIELECTRIC STRENGTH: AC250V 50Hz / 1 Minute
LIFE EXPECTANCY: 100,000 / 300,000 cycles

Add to Cart Specifications
Product Details

※ TSA06141-1000

Funtion: Momentary action
Contact Arrangement: SPST, Normally Open
Termination: THD version



※ SPECIFICATION

ELECTRICAL RATING 50mA , DC12V
CONTACT RESISTANCE ≤50mΩ/≤100mΩ
INSULATION RESISTANCE ≥100MΩ
DIELECTRIC STRENGTH AC250V for 1 Minute
LIFE EXPECTANCY 100,000/300,000 cycles
TRAVEL 0.25mm±0.1mm

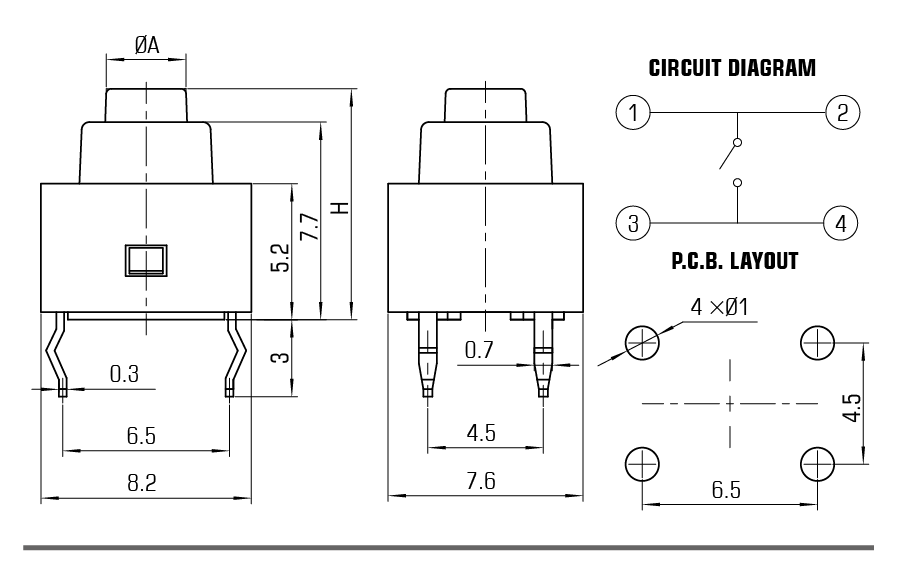

※ DIAGRAM

H 9 9.5 9.7 9.9 10 10.3 10.5 11 11.5 12 12.5 13 13.5 14 14.5 15
A 3.1 3.2 3.1 3.2 3.2 3.2 3 3.1 3.2 3.2 3.1 3.2 3 3.2 3.1 3.1
H 15.5 15.6 16 16.5 17 17 17.5 18 18.5 19 19.5 19.7 20.2 21 22 23
A 3.2 3.1 3.2 3.2 3.2 2 3 3.2 3 3.1 3 3 3.2 3.1 3.2 3.1
