ELECTRICAL RATING: 50mA @ 12VDC
LIFE EXPECTANCY: 100,000 Cycles，
CONTACT RESISTANCE: 100mΩ Max.
INSULATION RESISTANCE: 100MΩ Min.
DIELECTRIC STRENGTH: 250V AC for 1minute
ACTUATION FORCE: 180gf± 50gf
OPERATING TEMPERATURE: -25°C to 70°C

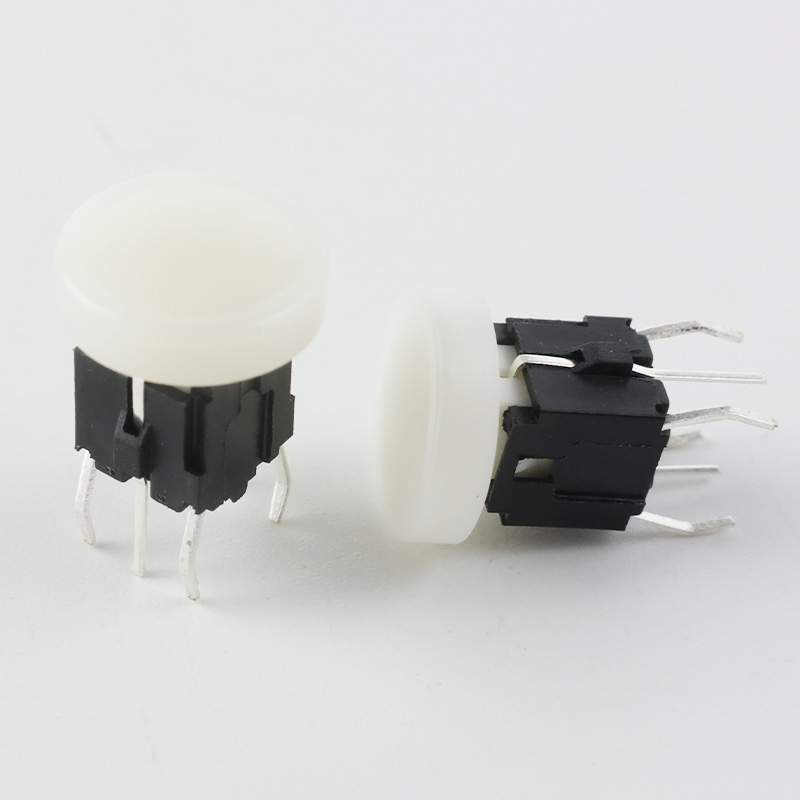

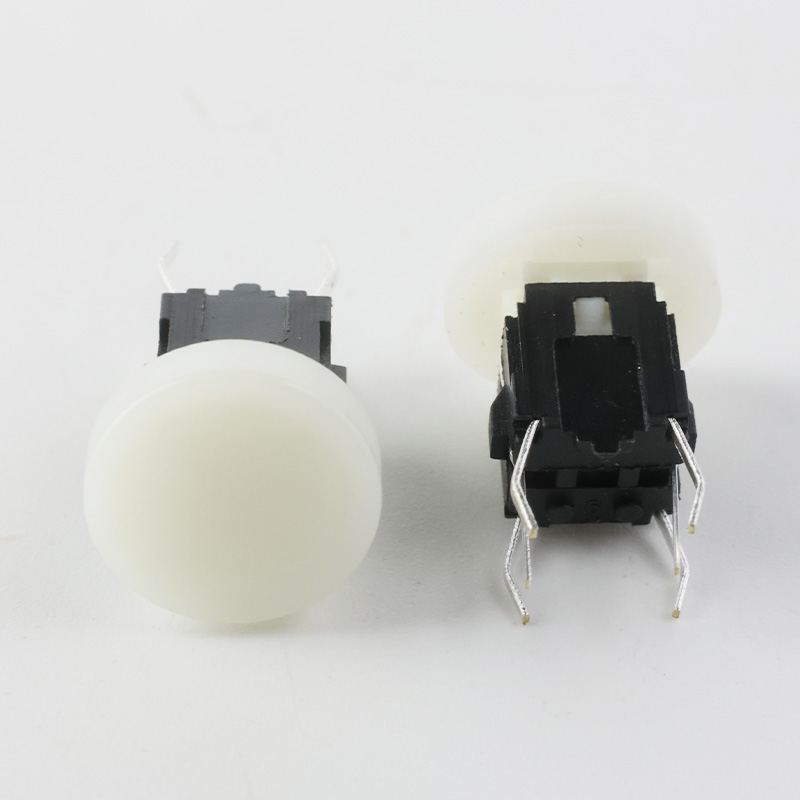

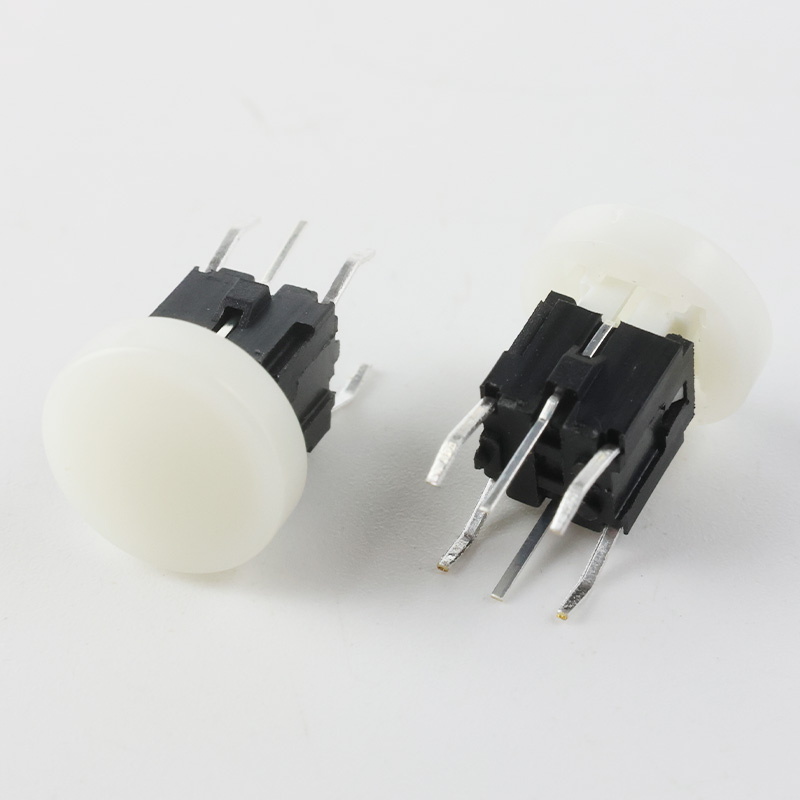

※ TSL06131-0050
| Funtion: | Momentary action |
| Contact Arrangement: | SPST,Normally Open |
| Termination: | THD version |
※ SPECIFICATION
| Contact Rating | 50mA DC12V | |||
| Dielectric Strength | AC250V for 1 Minute | |||
| Contact Resistance | ≤100 mΩ Max. | |||
| Insulation Resistance | 100MΩ Min. | |||
| Life Expectancy | 100,000 cycles | |||
| Travel | 0.25mm ± 0.1mm | |||

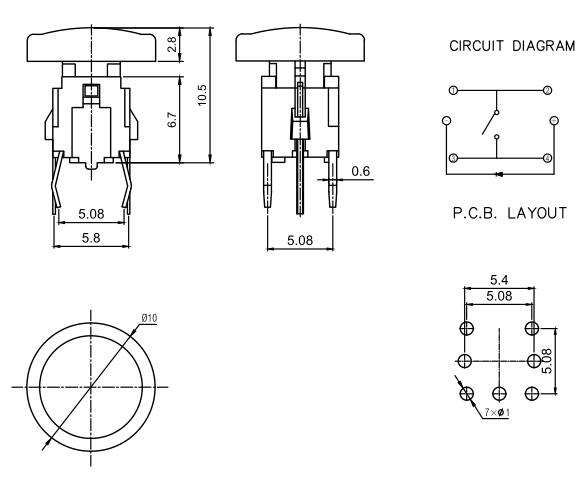

※ DIAGRAM
| H | 7 | 7.3 | 7.5 |
| L | 4.7 | 4.5 | 4.7 |
