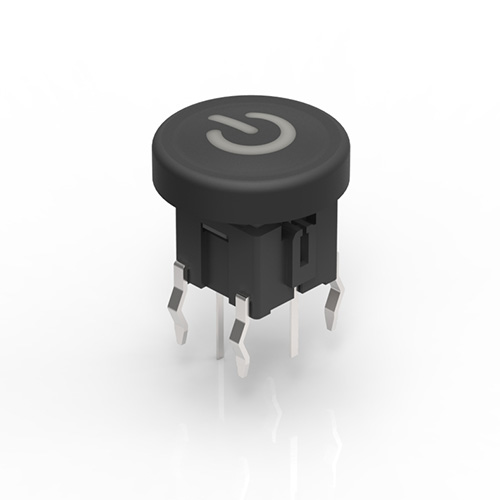

TSL06122-0010 Illuminated Tact Switch
TSL06122-0010 Illuminated Tact Switch
TSL06122-0010 Illuminated Tact Switch

TSL06122-0010 Illuminated Tact Switch

ELECTRICAL RATING: 50mA @ 12VDC
LIFE EXPECTANCY: 100,000 Cycles,
CONTACT RESISTANCE: 100mΩ Max.
INSULATION RESISTANCE: 100MΩ Min.
DIELECTRIC STRENGTH: 250V AC for 1minute
ACTUATION FORCE: 180gf± 50gf
OPERATING TEMPERATURE: -25°C to 70°C

Add to Cart Specifications
Product Details

※ TSL06122-0010

Funtion: Momentary action
Contact Arrangement: SPST, Normally Open
Termination: THD version



※ SPECIFICATION

ELECTRICAL RATING 50mA , DC12V
CONTACT RESISTANCE ≤100mΩ
INSULATION RESISTANCE ≥100MΩ
DIELECTRIC STRENGTH AC250V for 1 Minute
LIFE EXPECTANCY 100,000 cycles
TRAVEL 0.25mm±0.1mm

LED SPECIFICATIONS

Part Number Color

Dominant  Wave length

(Unit:nm,IF=20mA)

Luminous  intensity

(Unit:mcd,IF=20mA)

Forward Voltage

(Unit:V,IF=20mA)

Viewing Angle

2θ 1/2

Typical Typical Typical Max
DL01B01 Red 621 1200 2.0 2.3 35
DL01J01 Yellow 590 1200 2.0 2.3 35
DL01K01 Orange 605 1000 2.0 2.4 30
DL01D01 Blue 460 200 3.0 3.2 60
DL01C01 Green 522 1800 3.0 3.4 35
DL01E01 White   1200 3.2 3.6 35

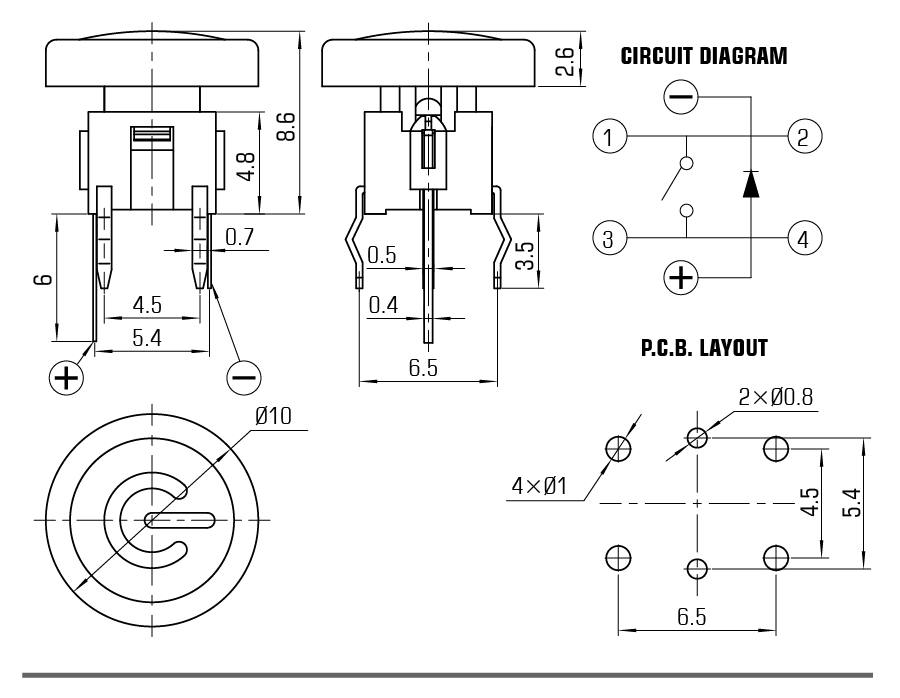

※ DIAGRAM
