5*5 Dustproof Tact Switch for Electric Circuits, Tactile Push Button Switch 4 PIN ON/Off

Filtering Modules

Termination:

Actuation Force:

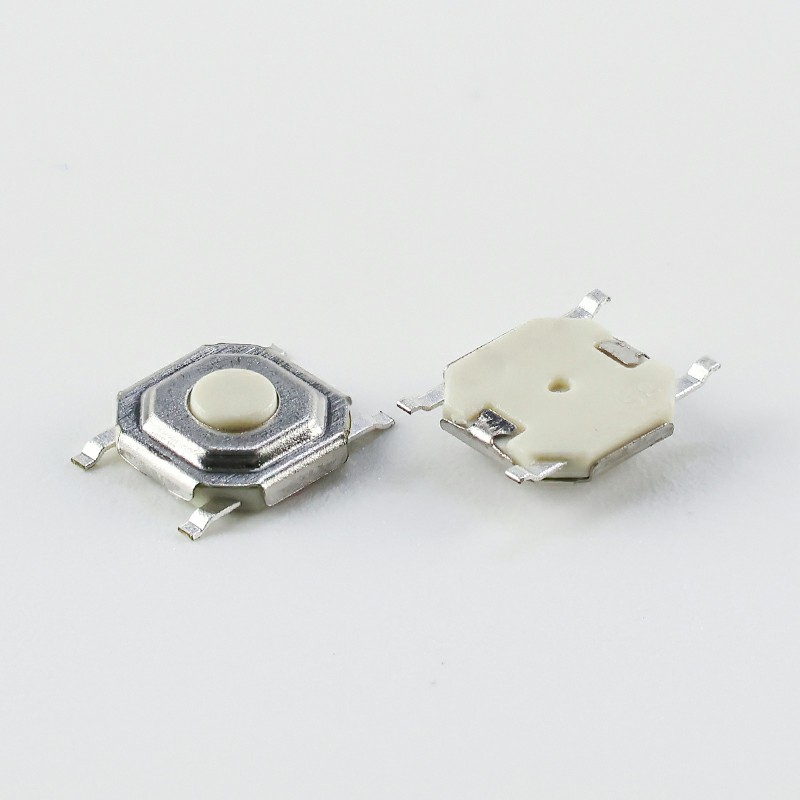

5*5 Dustproof Tact Switch

WATERPROOF RATING:IP66
ELECTRICAL RATING: 50mA @ 12VDC
LIFE EXPECTANCY: 50,000 Cycles,
CONTACT RESISTANCE: 50mΩ Max.
INSULATION RESISTANCE: 100MΩ Min.
DIELECTRIC STRENGTH: 250V AC for 1minute
ACTUATION FORCE: 180gf/280gf± 50gf
OPERATING TEMPERATURE: -25°C to 70°C

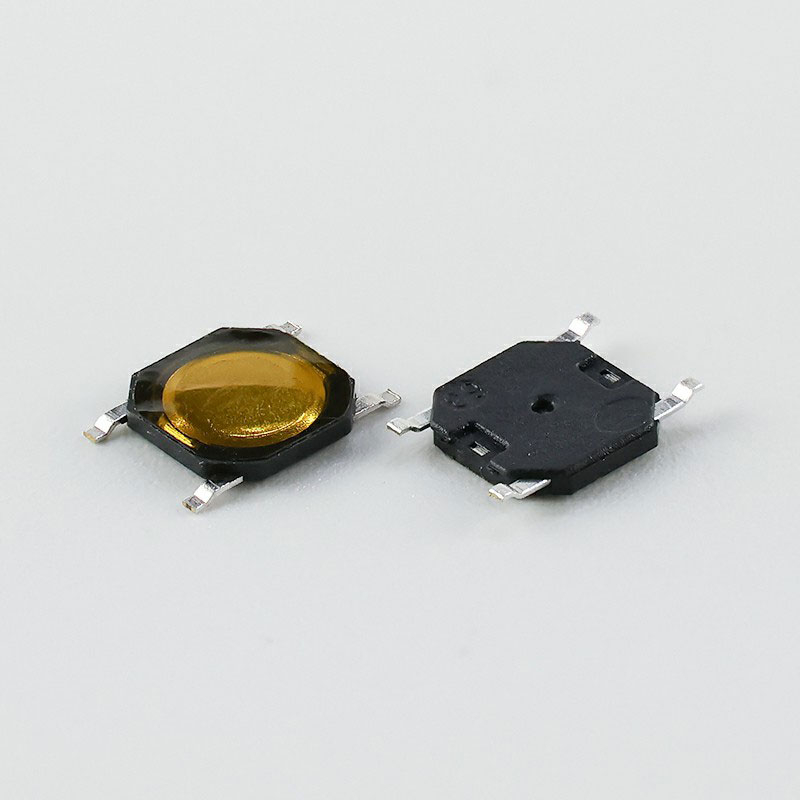

TSD05312 5x5 4 Pin PCB Silent Mini SMD Push Button Tact Switch

TSE05312 5x5 4 Pin PCB Silent Mini SMD Push Button Tact Switch

WATERPROOF RATING: IP66
ELECTRICAL RATING: 50mA @ 12VDC
LIFE EXPECTANCY: 50000 Cycles
CONTACT RESISTANCE: 100mΩ Max.
INSULATION RESISTANCE: 100MΩ Min.
DIELECTRIC STRENGTH: 250V AC for 1minute
ACTUATION FORCE: 280gf± 50gf
OPERATING TEMPERATURE: -25°C to 70°C

TSD05314 5.2x5.2mm 4 Pin SMD Tactile Switch

TSE05314 5.2x5.2mm 4 Pin SMD Tactile Switch

WATERPROOF RATING:IP40
ELECTRICAL RATING: 50mA @ 12VDC
LIFE EXPECTANCY: 300,000 Cycles,
CONTACT RESISTANCE: 50mΩ Max.
INSULATION RESISTANCE: 100MΩ Min.
DIELECTRIC STRENGTH: 250V AC for 1minute
ACTUATION FORCE: 180gf/280gf± 50gf
OPERATING TEMPERATURE: -25°C to 70°C
