TSE05430 Dustproof Tact Switch

Add to Cart Specifications
Product Details



SPECIFICATIONS
Funtion Momentary action
Contact Arrangement SPST,Normally Open
Termination: SMD version
Environmental
Operating Temperature: -25+70
Relative Humidity (40)≤95%
Electrical
Contact Rating 50mA  12V DC
Dielectric Strength 250VAC /1min
Contact Resistance 100mΩ Max
nsulation Resistance: 100MΩ Min
Travel: 0.2±0.1mm
Sealing IP6X
Mechanical
Actuation Force: 180gf
Life Expectancy 100K

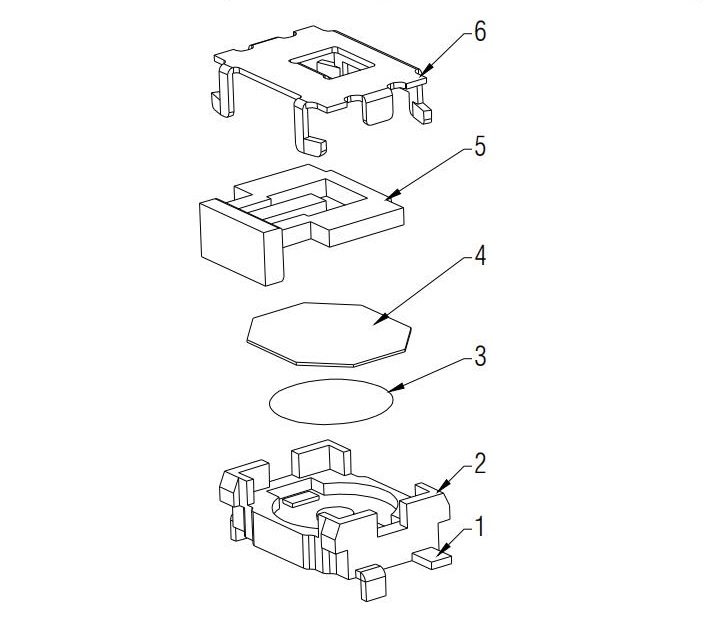

Materials
6.Cover: Stainless steel
5.Stem: Black PA46
4.Waterproof membrane Polyimide
3.Spring Stainless steel covered with silver
2.Holder: Black LCP
1.Terminal: Phosphor copper plated with silver









Product Application
Our products cover household appliances,3C intelligent industrial control, office equipment, medical equipment security equipment and other fields
Industrial control industry
Industrial control industry
Household appliances industry
Household appliances industry
Security equipment industry
Office equipment industry
Computer, Communication, and Consumer electronics industry
Computer, Communication, and Consumer electronics industry
Medical equipment industry
