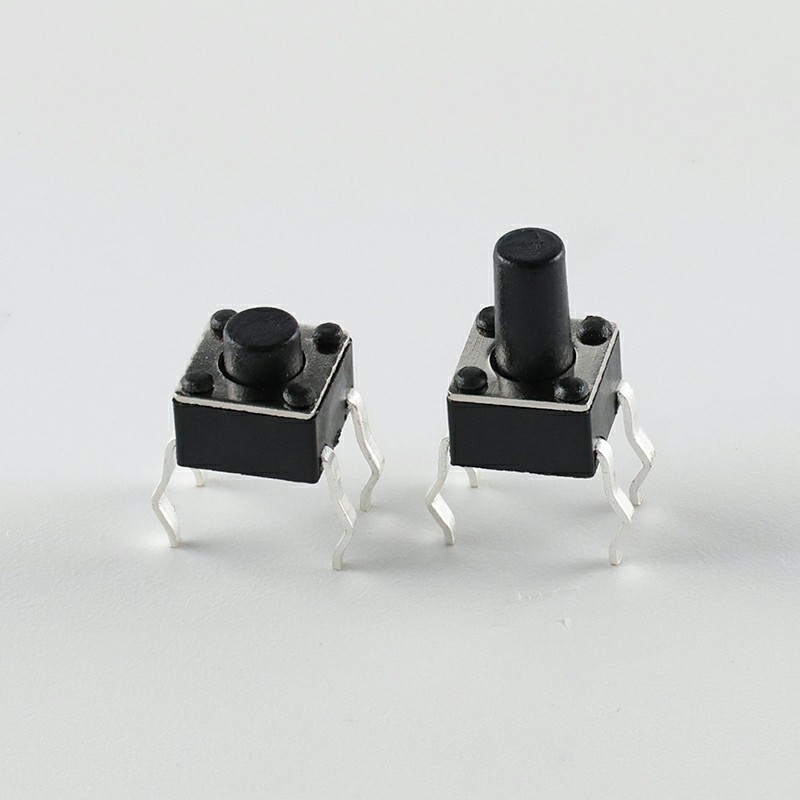

TSA45111 Tactile Switch
TSA45111 Tactile Switch
TSA45111 Tactile Switch

TSA45111 Tactile Switch

Funtion: Momentary action
Contact Arrangement: SPST
Termination: THD version
ELECTRICAL RATING: 50mA , DC12V
CONTACT RESISTANCE: ≤100mΩ
INSULATION RESISTANCE: ≥100MΩ
DIELECTRIC STRENGTH: AC250V 50Hz / 1 Minute
LIFE EXPECTANCY: 100,000 cycles

Add to Cart Specifications
Product Details

※ TSA45111

Funtion: Momentary action
Contact Arrangement: SPST, Normally Open
Termination: THD version



※ SPECIFICATION

ELECTRICAL RATING 50mA , DC12V
CONTACT RESISTANCE ≤100mΩ
INSULATION RESISTANCE ≥100MΩ
DIELECTRIC STRENGTH AC250V for 1 Minute
LIFE EXPECTANCY 100,000 cycles
TRAVEL 0.25mm±0.1mm

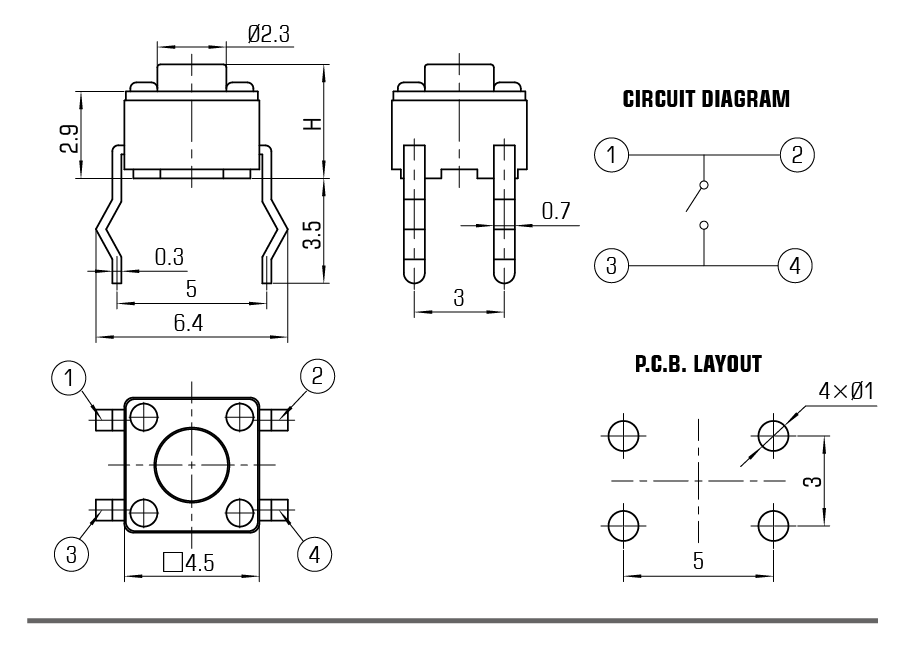

※ DIAGRAM
