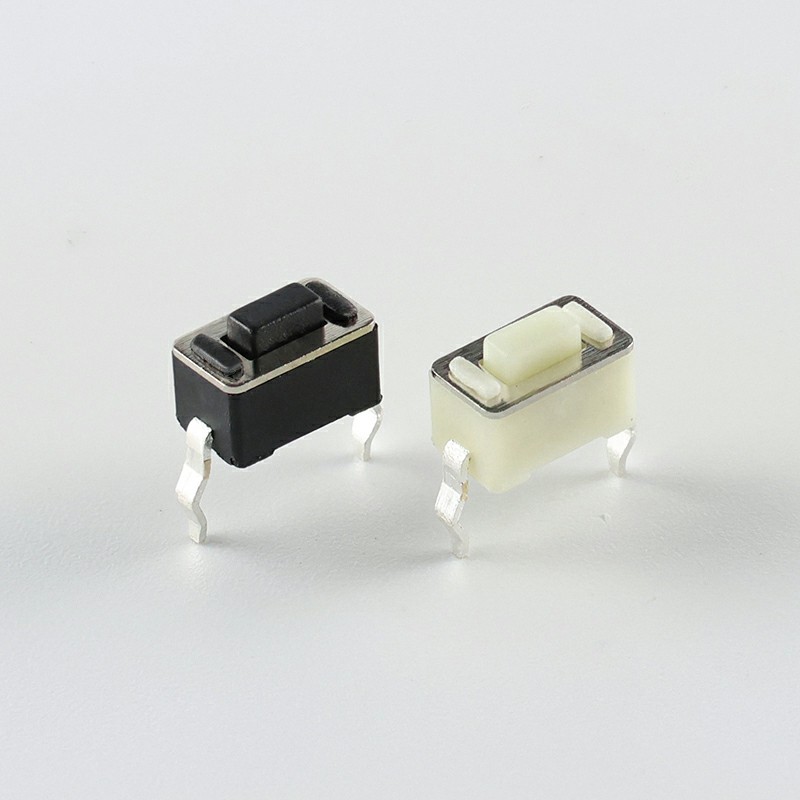

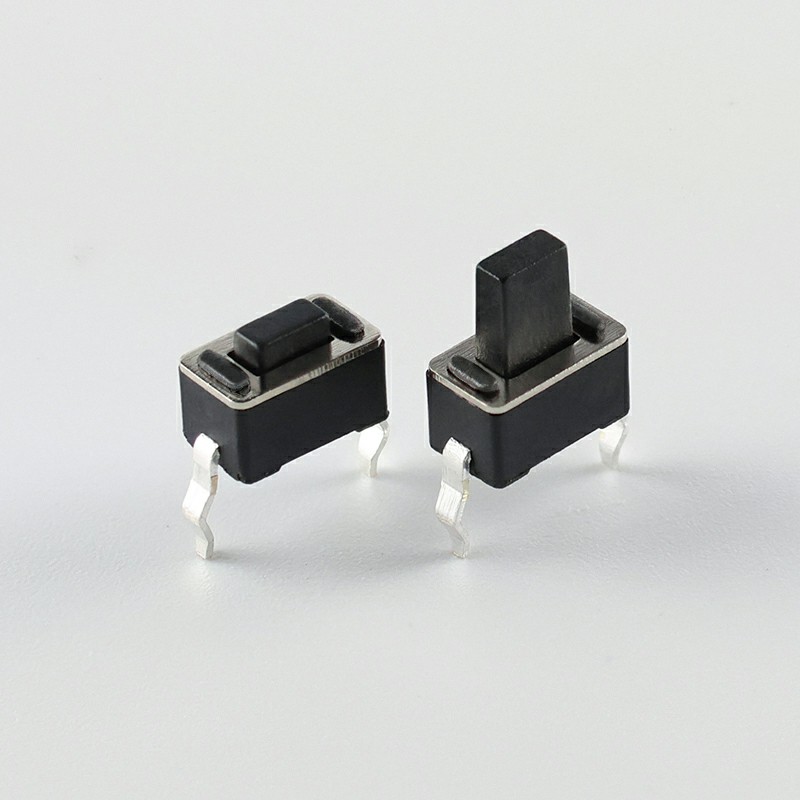

TSA36111 2 Pin Dip 3x6 Tactile Switch
TSA36111 2 Pin Dip 3x6 Tactile Switch
TSA36111 2 Pin Dip 3x6 Tactile Switch
TSA36111 2 Pin Dip 3x6 Tactile Switch

TSA36111 2 Pin Dip 3x6 Tactile Switch

Funtion: Momentary action
Contact Arrangement: SPST
Termination: THD version
ELECTRICAL RATING: 50mA , DC12V
CONTACT RESISTANCE: ≤100mΩ
INSULATION RESISTANCE: ≥100MΩ
DIELECTRIC STRENGTH: AC250V 50Hz / 1 Minute
LIFE EXPECTANCY: 30,000 cycles

Add to Cart Specifications
Product Details
※ TSA36111
Funtion: Momentary action
Contact Arrangement: SPST, Normally Open
Termination: THD version

※ SPECIFICATION
ELECTRICAL RATING 50mA , DC12V
CONTACT RESISTANCE ≤100mΩ
INSULATION RESISTANCE ≥100MΩ
DIELECTRIC STRENGTH AC250V for 1 Minute
LIFE EXPECTANCY 30,000 cycles
TRAVEL 0.25mm±0.1mm

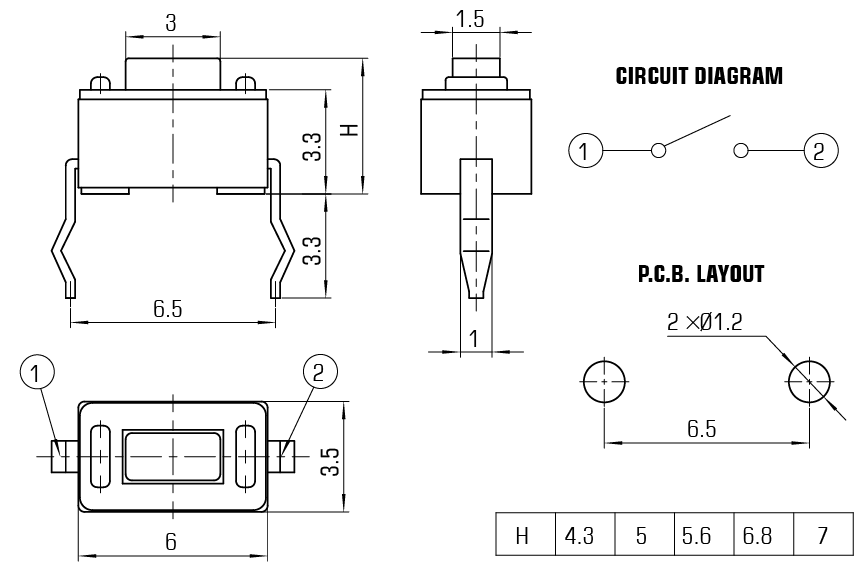

※ DIAGRAM

Product Application
Our products cover household appliances,3C intelligent industrial control, office equipment, medical equipment security equipment and other fields
Industrial control industry
Industrial control industry
Household appliances industry
Household appliances industry
Security equipment industry
Office equipment industry
Computer, Communication, and Consumer electronics industry
Computer, Communication, and Consumer electronics industry
Medical equipment industry
