More >>WATERPROOF RATING: IP66
ELECTRICAL RATING: 50mA @ 12VDC
LIFE EXPECTANCY: 50000 Cycles,
CONTACT RESISTANCE: 200mΩ Max.
INSULATION RESISTANCE: 100MΩ Min.
DIELECTRIC STRENGTH: 250V AC for 1minute
ACTUATION FORCE: 180gf± 50gf
OPERATING TEMPERATURE: -25°C to 70°C

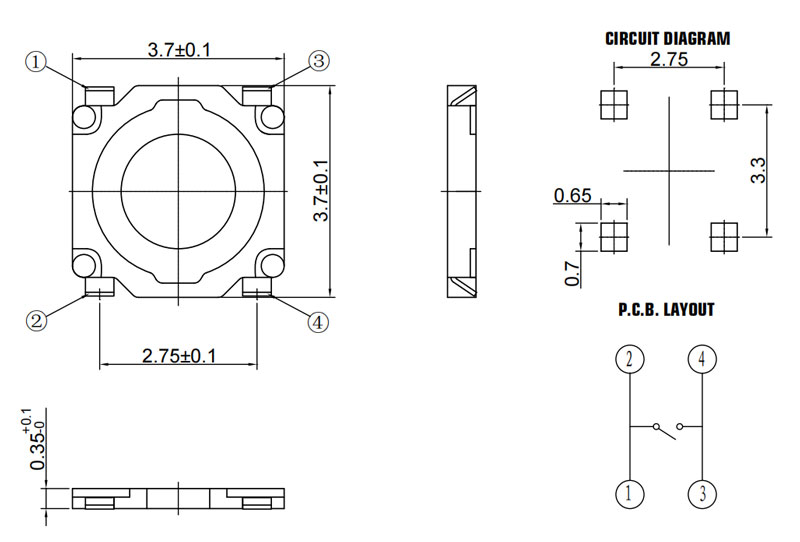

The TSD 37311 from KHON are 3.7mm smd tact switch. The switch is ideal for applications that need a high density of components in limited PCB space, such as automotive keyfob, navigation and health & medical devices.
