Funtion: Momentary action
Contact Arrangement: SPST
Termination: THD version
ELECTRICAL RATING: 50mA , DC12V
CONTACT RESISTANCE: ≤100mΩ
INSULATION RESISTANCE: ≥100MΩ
DIELECTRIC STRENGTH: AC250V 50Hz / 1 Minute
LIFE EXPECTANCY: 100,000 cycles
※ TSB35312
| Funtion: | Momentary action |
| Contact Arrangement: | SPST, Normally Open |
| Termination: | THD version |
※ SPECIFICATION
| ELECTRICAL RATING | 50mA , DC12V |
| CONTACT RESISTANCE | ≤100mΩ |
| INSULATION RESISTANCE | ≥100MΩ |
| DIELECTRIC STRENGTH | AC250V for 1 Minute |
| LIFE EXPECTANCY | 100,000 cycles |
| TRAVEL | 0.2mm±0.1mm |

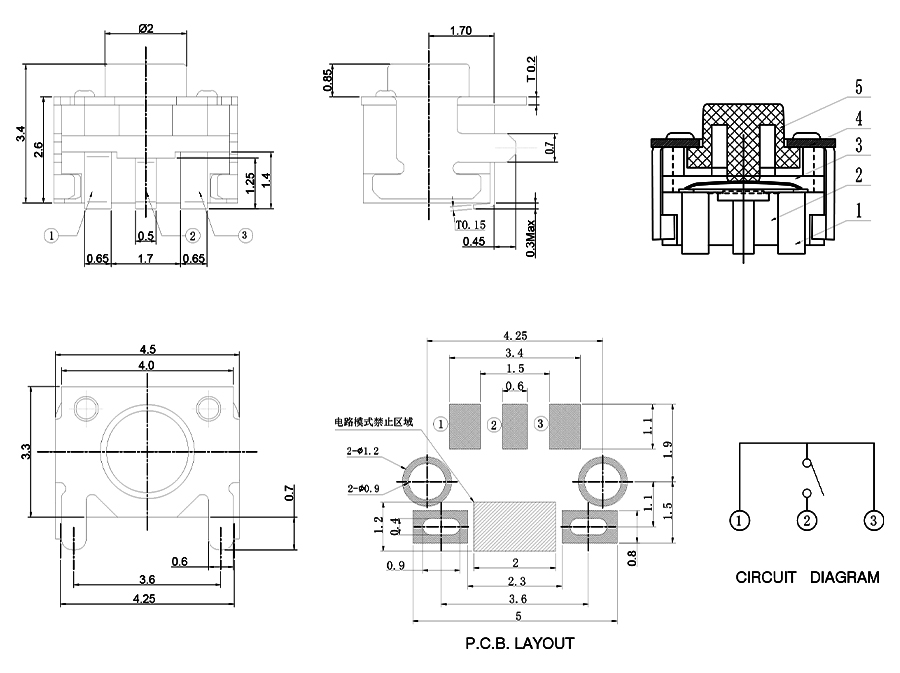

※ DIAGRAM
