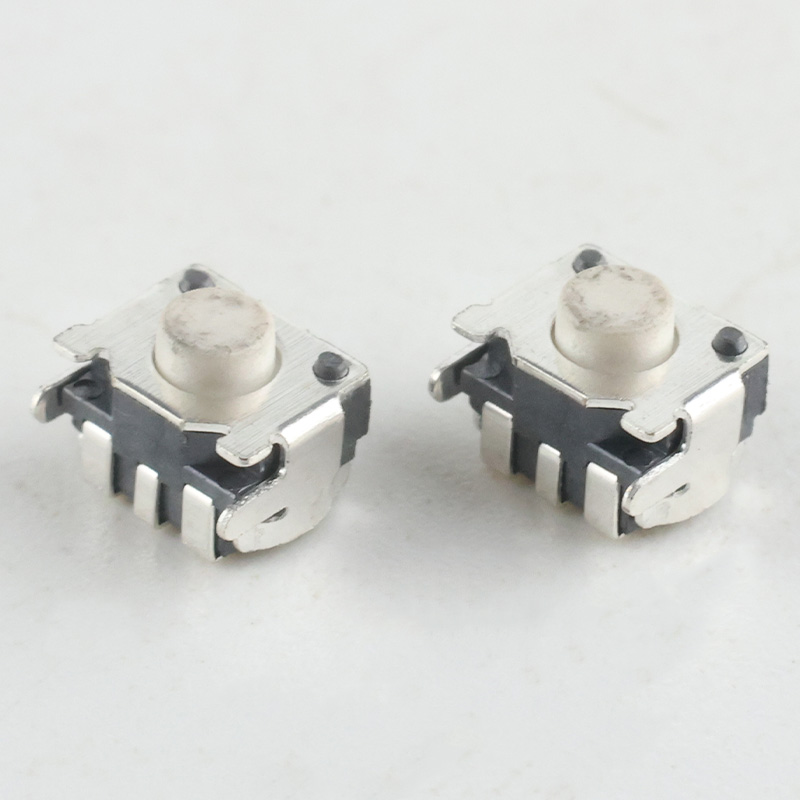

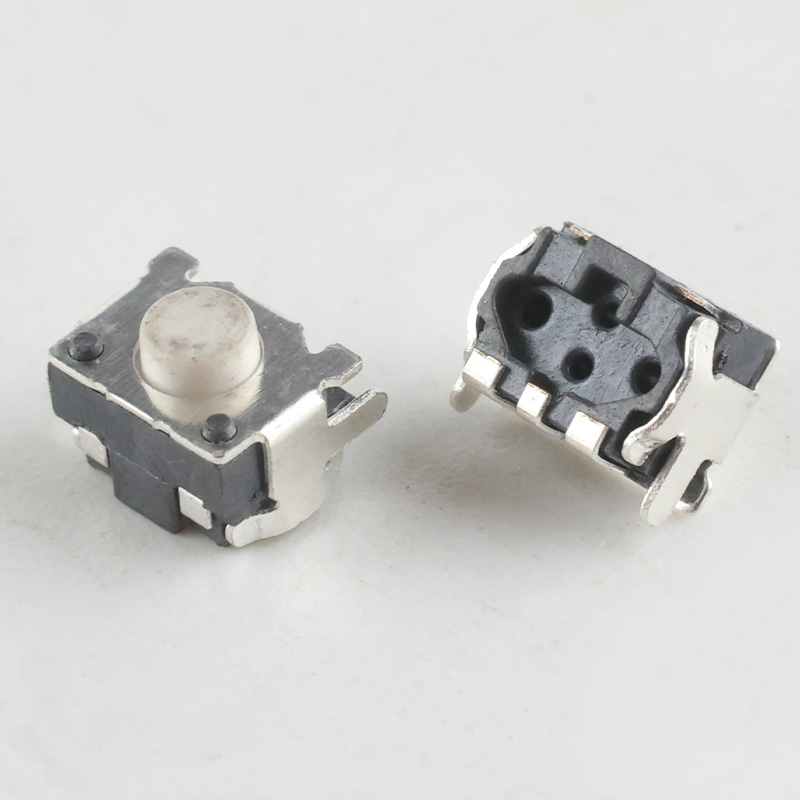

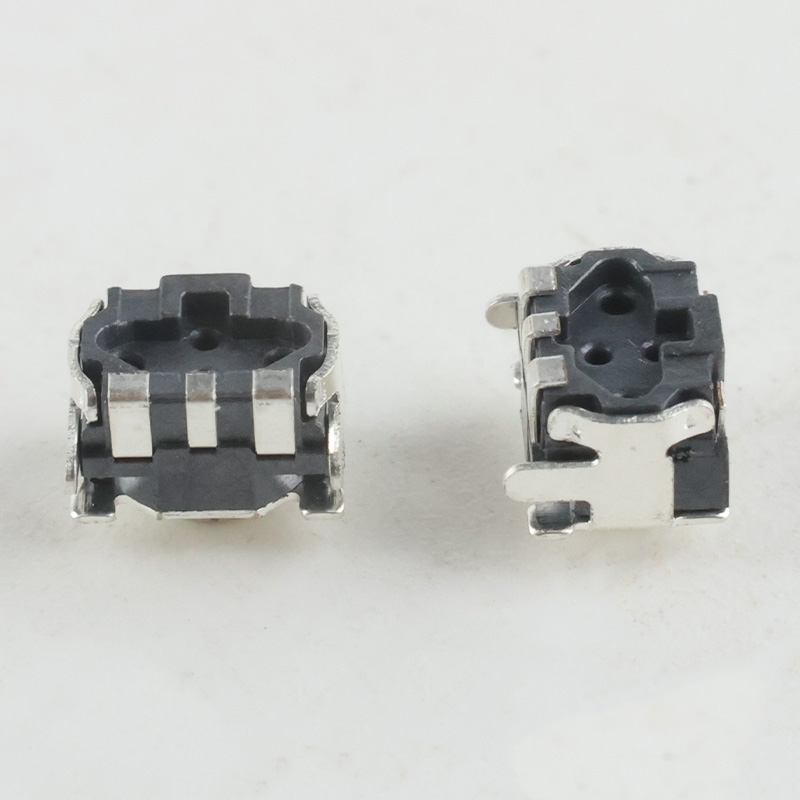

TSB35311 Tactile Switch

Funtion: Momentary action
Contact Arrangement: SPNT
Termination: THD version
ELECTRICAL RATING: 50mA , DC12V
CONTACT RESISTANCE: ≤100mΩ
INSULATION RESISTANCE: ≥100MΩ
DIELECTRIC STRENGTH: AC250V 50Hz / 1 Minute
LIFE EXPECTANCY: 100,000 cycles

Add to Cart Specifications

Product Details

※ TSB35311

Funtion:	Momentary action
Contact Arrangement:	SPDT, Normally Open
Termination:	THD version

※ SPECIFICATION

ELECTRICAL RATING	50mA , DC12V
CONTACT RESISTANCE	≤100mΩ
INSULATION RESISTANCE	≥100MΩ
DIELECTRIC STRENGTH	AC250V for 1 Minute
LIFE EXPECTANCY	100,000 cycles
TRAVEL	0.2mm±0.1mm
