TSE24431 Tactile Switch
TSE24431 Tactile Switch
TSE24431 Tactile Switch
TSE24431 Tactile Switch
TSE24431 Tactile Switch

TSE24431 Tactile Switch

Funtion: Momentary action
Contact Arrangement: SPST
Termination: THD version
ELECTRICAL RATING: 50mA , DC12V
CONTACT RESISTANCE: ≤100mΩ
INSULATION RESISTANCE: ≥100MΩ
DIELECTRIC STRENGTH: AC250V 50Hz / 1 Minute
LIFE EXPECTANCY: 60,000 cycles

Add to Cart Specifications
Product Details

※ TSE24431

Funtion: Momentary action
Contact Arrangement: SPST, Normally Open
Termination: THD version



※ SPECIFICATION

ELECTRICAL RATING 50mA , DC12V
CONTACT RESISTANCE ≤100mΩ
INSULATION RESISTANCE ≥100MΩ
DIELECTRIC STRENGTH AC250V for 1 Minute
LIFE EXPECTANCY 60,000 cycles
TRAVEL 0.2mm±0.1mm

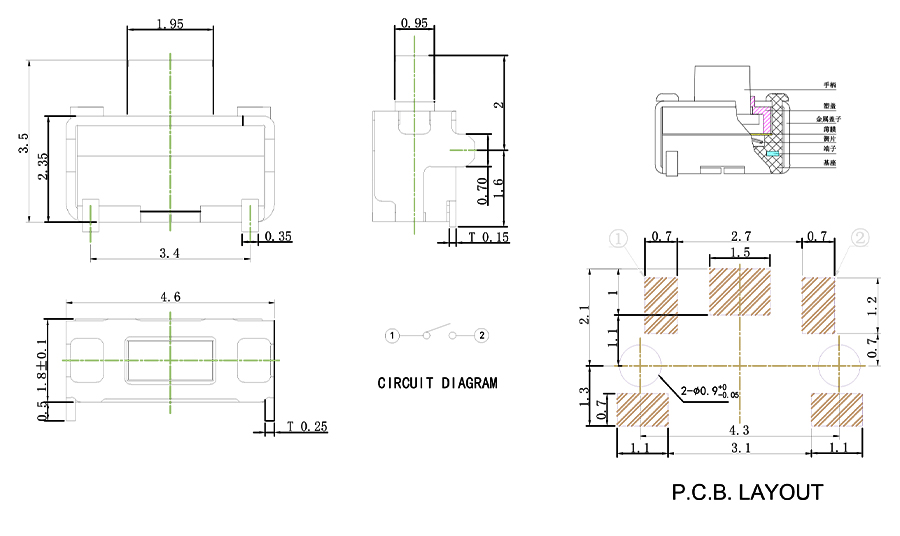

※ DIAGRAM

Product Application
Our products cover household appliances,3C intelligent industrial control, office equipment, medical equipment security equipment and other fields
Industrial control industry
Industrial control industry
Household appliances industry
Household appliances industry
Security equipment industry
Office equipment industry
Computer, Communication, and Consumer electronics industry
Computer, Communication, and Consumer electronics industry
Medical equipment industry
