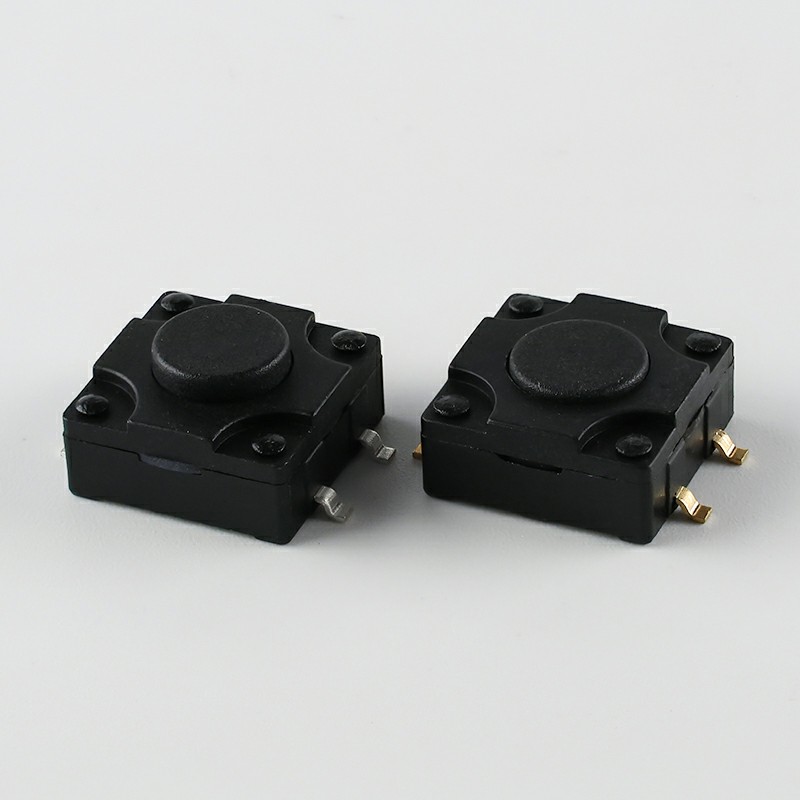

※ TSX12311
| Funtion: | Momentary action |
| Contact Arrangement: | SPST, Normally Open |
| Termination: | SMD version |
※ SPECIFICATION
| ELECTRICAL RATING | 50mA , DC12V | |
| CONTACT RESISTANCE | ≤50mΩ | ≤100mΩ |
| INSULATION RESISTANCE | ≥100MΩ | |
| DIELECTRIC STRENGTH | AC250V for 1 Minute | |
| LIFE EXPECTANCY | 100,000 cycles | |
| TRAVEL | 0.25mm±0.1mm | |
| IP GRADE | IP67 | |

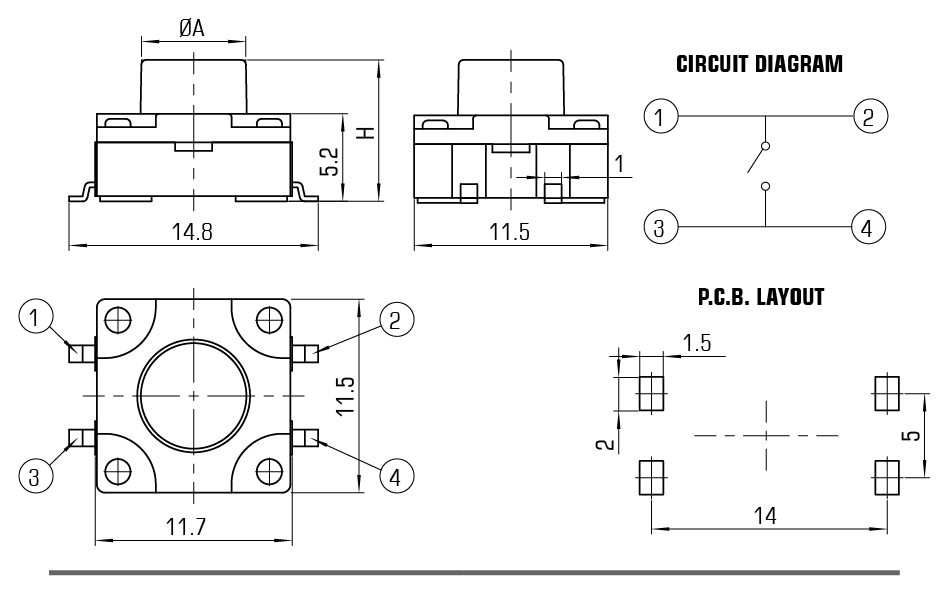

※ DIAGRAM
| H | 5.8 | 6 | 6.5 | 7 | 7.5 | 8 | 8.5 | 9 | 9.2 | 9.5 | 10 | 10.5 | 11 | 11.5 |
| A | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 | 6.2 | 6.3 | 6.2 | 6.3 | 6.3 | 6.3 | 6.2 | 6.2 | 6.3 |
| H | 12 | 12.5 | 13 | 13.5 | 14 | 14.5 | 15.5 | 16.5 | 17 | 18.5 | 19.5 | 21.2 | 22.5 | |
| A | 6.2 | 6.2 | 6.2 | 6.2 | 6.2 | 6.2 | 6.2 | 6.2 | 6.2 | 6.1 | 6.1 | 6.1 | 6.1 | |
