ELECTRICAL RATING: 50mA @ 12VDC
LIFE EXPECTANCY: 100,000 Cycles, 300,000 Cycles
CONTACT RESISTANCE: 50mΩ Max.
INSULATION RESISTANCE: 100MΩ Min.
DIELECTRIC STRENGTH: 250V AC for 1minute
ACTUATION FORCE: 180gf/280gf± 50gf
OPERATING TEMPERATURE: -25°C to 70°C

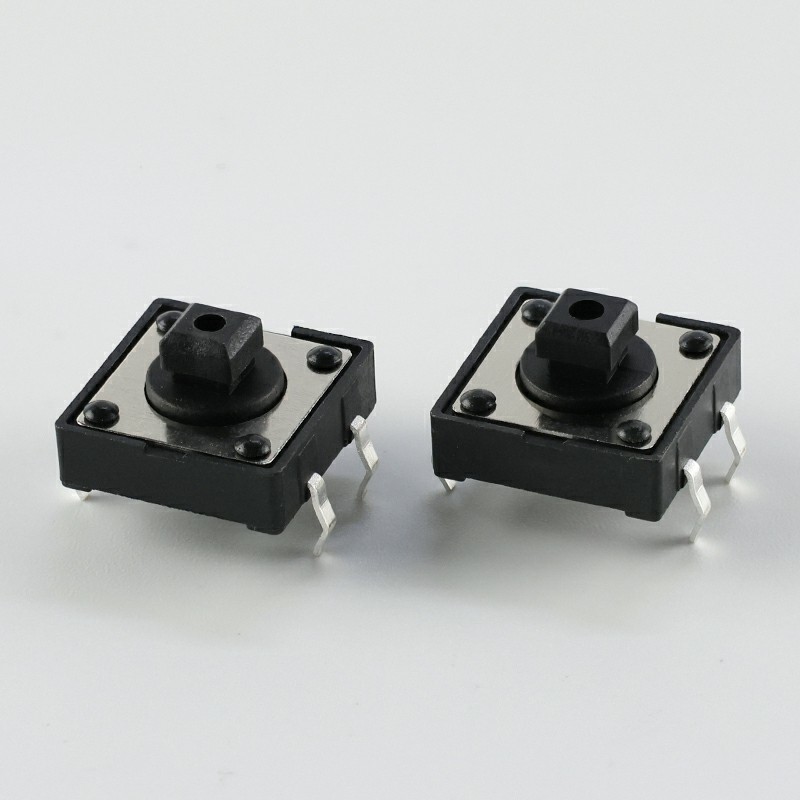

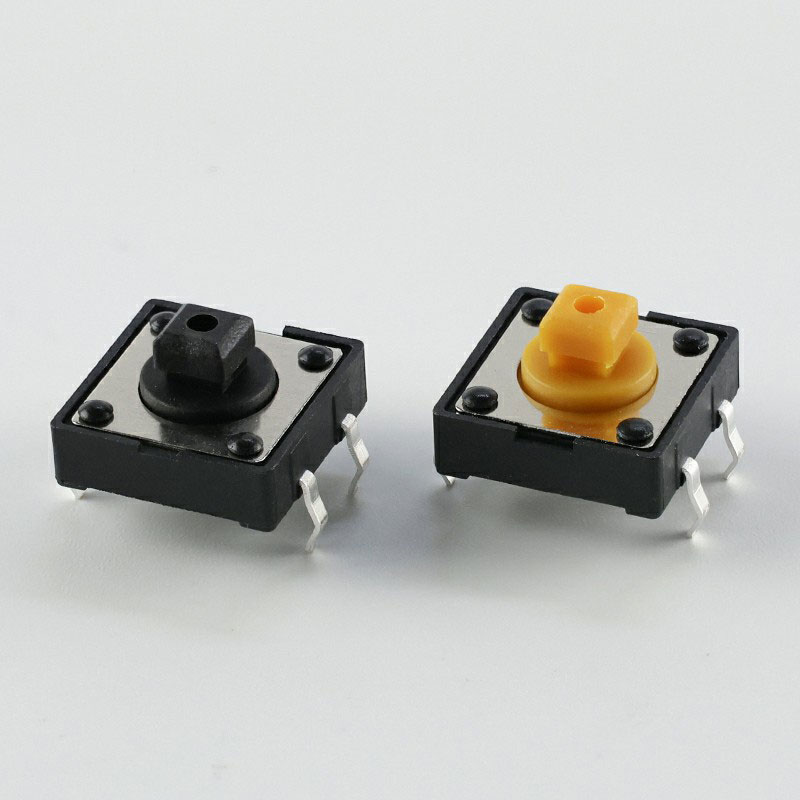

The Tsa12110 from KHON is a 4 pin dip tactile switch with 3.8*3.8mm square stem, most often seen used in industrial, consumer products, instrumentation and computing equipment. 3.8*3.8mm square stem can be matched with different switch caps，Using on your customized products.
※ TSA12110
| Funtion: | Momentary action |
| Contact Arrangement: | SPST, Normally Open |
| Termination: | THD version |
※ SPECIFICATION
| ELECTRICAL RATING | 50mA , DC12V |
| CONTACT RESISTANCE | ≤50mΩ/≤100mΩ |
| INSULATION RESISTANCE | ≥100MΩ |
| DIELECTRIC STRENGTH | AC250V for 1 Minute |
| LIFE EXPECTANCY | 100,000/300,000 cycles |
| TRAVEL | 0.3mm±0.1mm |

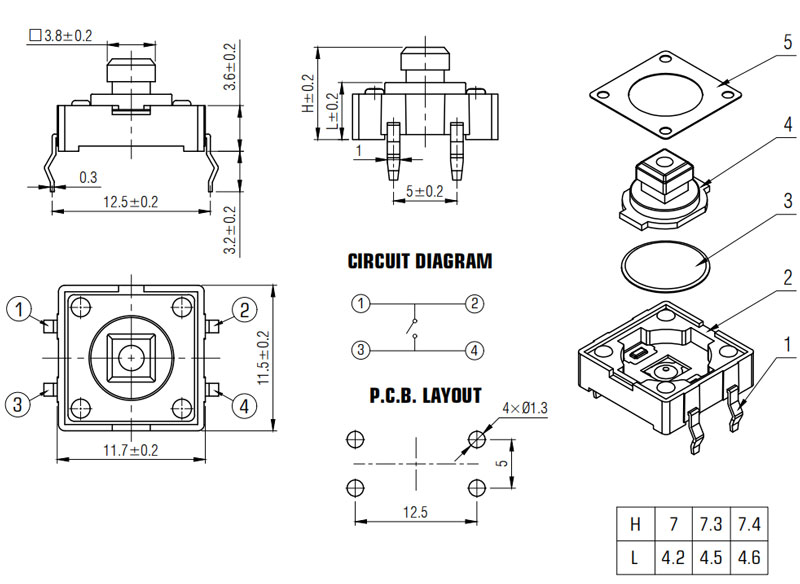

※ DIAGRAM
| H | 7 | 7.3 | 7.4 |
| L | 4.2 | 4.5 | 4.6 |
