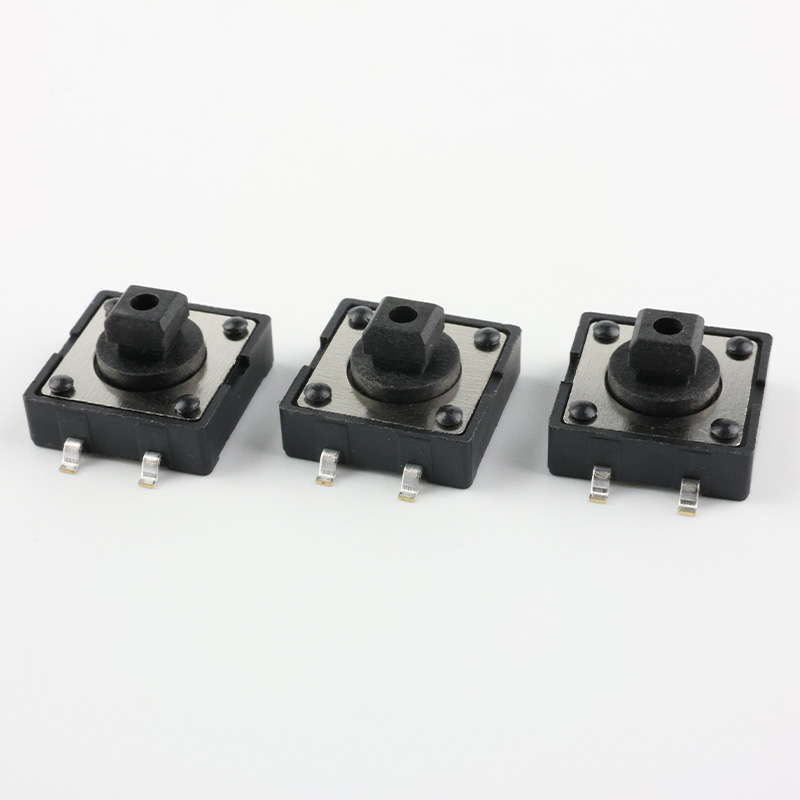

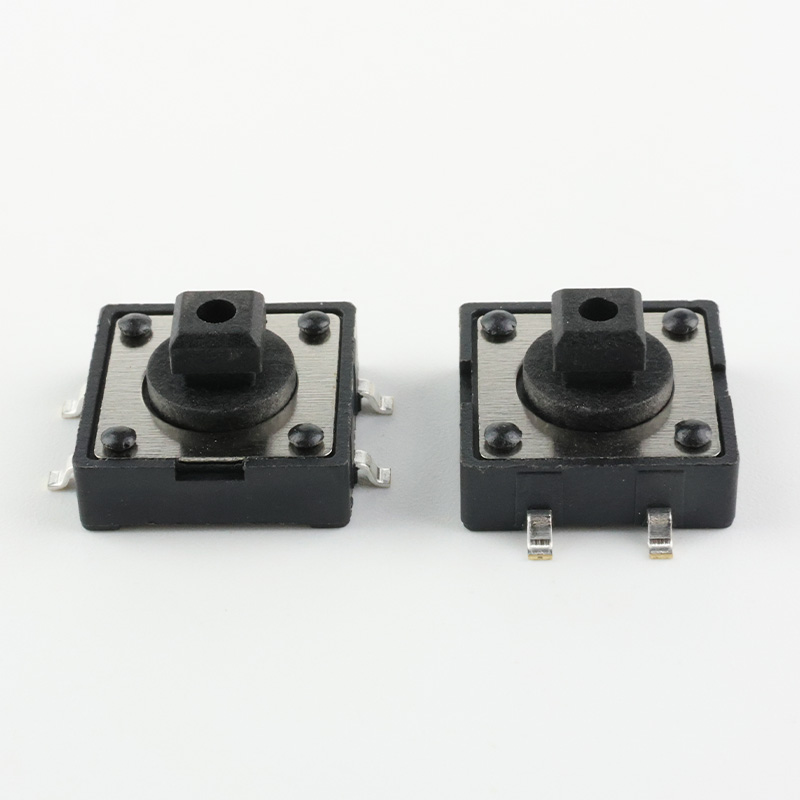

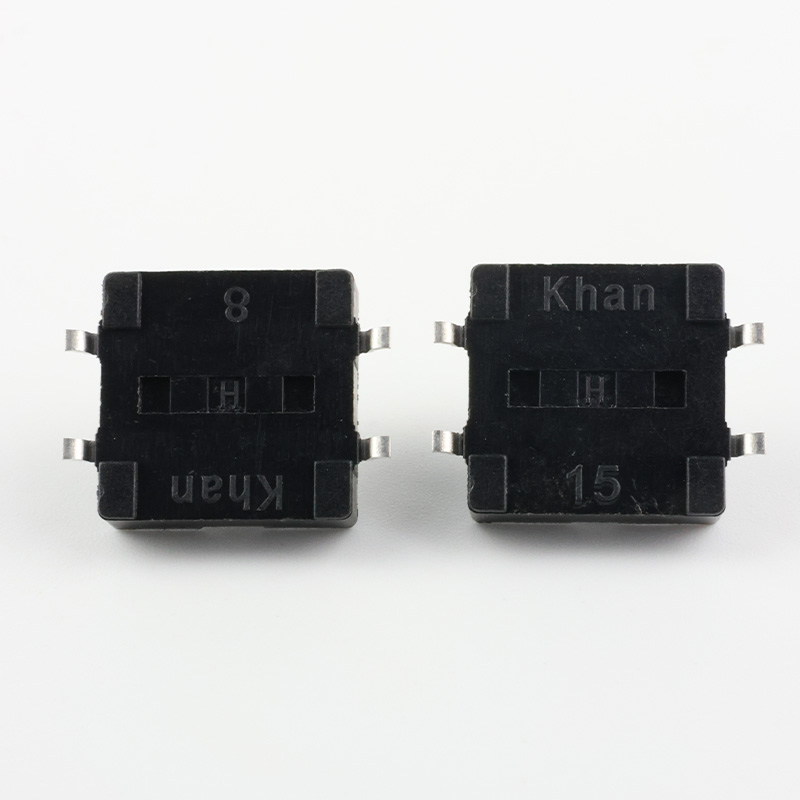

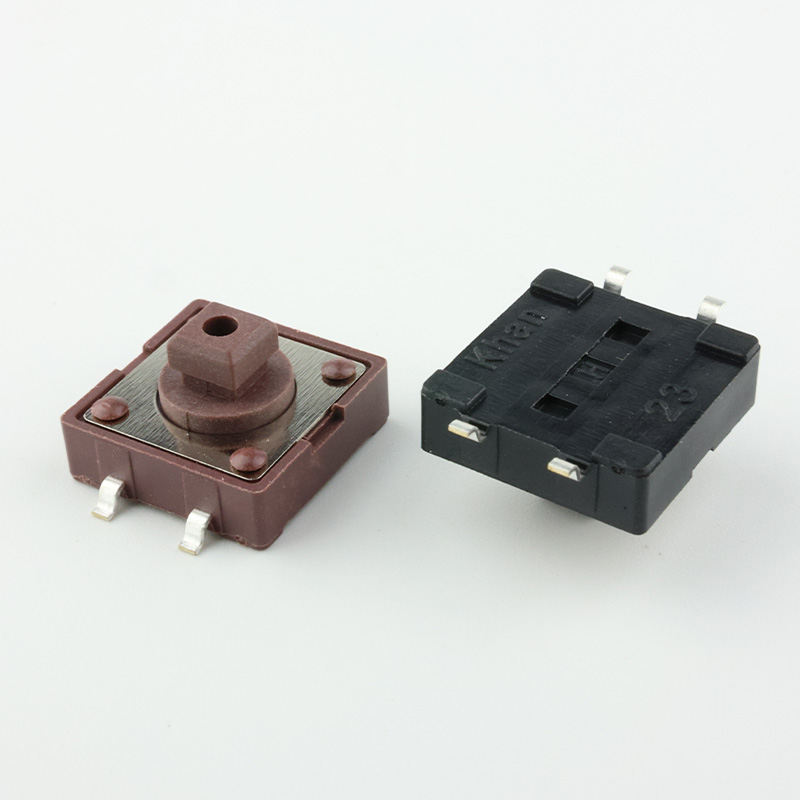

TSB12310 Tact Switch
TSB12310 Tact Switch
TSB12310 Tact Switch
TSB12310 Tact Switch
TSB12310 Tact Switch
TSB12310 Tact Switch

TSB12310 Tact Switch

Funtion: Momentary action
Contact Arrangement: SPST
Termination: SMD version
ELECTRICAL RATING: 50mA , DC12V
CONTACT RESISTANCE: ≤100mΩ
INSULATION RESISTANCE: ≥100MΩ
DIELECTRIC STRENGTH: AC250V / 1 Minute
LIFE EXPECTANCY: 100,000 / 300,000 cycles

Add to Cart Specifications
Product Details

※ TSB12310

Funtion: Momentary action
Contact Arrangement: SPST, Normally Open
Termination: SMD version



※ SPECIFICATION

ELECTRICAL RATING 50mA , DC12V
CONTACT RESISTANCE ≤50mΩ/≤100mΩ
INSULATION RESISTANCE ≥100MΩ
DIELECTRIC STRENGTH AC250V for 1 Minute
LIFE EXPECTANCY 100,000/300,000 cycles
TRAVEL 0.3mm±0.1mm

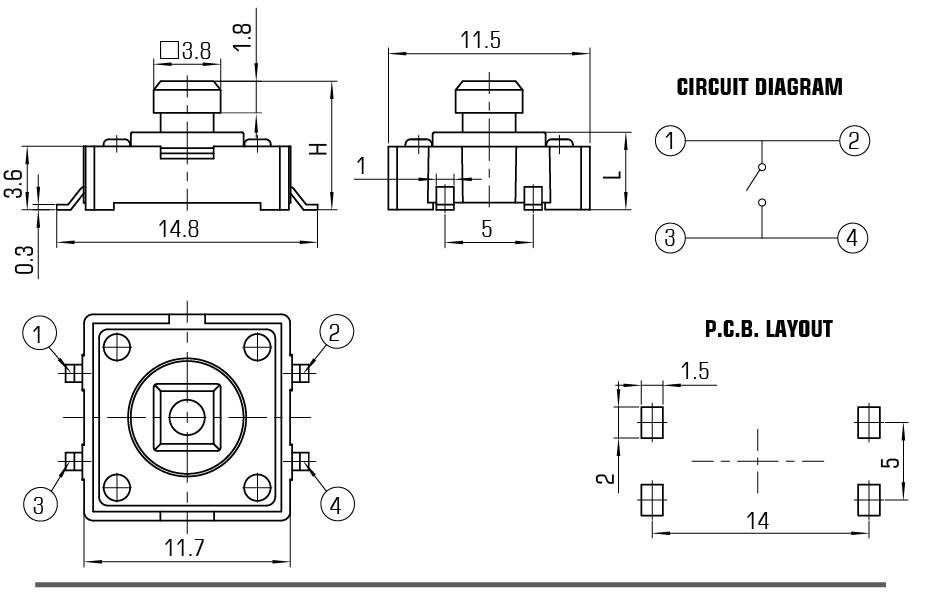

※ DIAGRAM

H 7 7.3 7.4
L 4.2 4.5 4.6

Product Application
Our products cover household appliances,3C intelligent industrial control, office equipment, medical equipment security equipment and other fields
Industrial control industry
Industrial control industry
Household appliances industry
Household appliances industry
Security equipment industry
Office equipment industry
Computer, Communication, and Consumer electronics industry
Computer, Communication, and Consumer electronics industry
Medical equipment industry
